Understanding Resistor Symbols in Circuit Diagrams

Introduction

A resistor symbol is a simple graphic used in a circuit diagram to represent a resistor. It shows where the resistor is placed in a circuit and helps readers understand how the component is used.

Resistor symbols make circuit diagrams easier to read because they replace the need to draw the physical appearance of each component. Learning these symbols can help you quickly identify resistors, understand their basic function, and read simple circuit diagrams.

This article explains what a resistor is, what resistor symbols mean, the main resistor symbol types, the differences between ANSI and IEC symbols, and how to identify resistor symbols in circuit diagrams.

What Is a Resistor?

A resistor is a passive electronic component that provides resistance to the flow of electric current. Its resistance is measured in ohms (Ω). In a circuit, a resistor can help control current and produce a voltage drop.

Resistors are widely used in electronic circuits. For example, they can be used to limit current, divide voltage, set operating conditions for other components, or provide a defined electrical path.

Characteristics of Resistors

Before looking at resistor symbols, it helps to understand the basic characteristics of a resistor.

• Resistance: Resistance describes how strongly a component opposes the flow of current.
• Resistance value: The value is expressed in ohms (Ω), with larger units such as kilohms (kΩ) and megohms (MΩ).
• Tolerance: Tolerance indicates how much the actual resistance may differ from its stated value.
• Power rating: A resistor has a specified power rating that indicates how much power it can safely dissipate under its rated conditions.
• Temperature coefficient: A resistor's resistance can change as its temperature changes.

Resistor Types

Resistors are available in different forms for different circuit requirements. The following image shows several common resistor types and their physical appearances.

What Is a Resistor Symbol?

A resistor symbol is a standardized graphic used to represent a resistor in a circuit or schematic diagram. Instead of showing the physical shape of the component, the symbol focuses on its electrical function.

The exact appearance can vary between drawing systems. A resistor may be shown as a zigzag line in commonly used American-style diagrams or as a rectangle in IEC-style diagrams. Both symbols represent the same basic resistor function.

Functions of Resistor Symbols

Resistor symbols provide several useful functions in circuit diagrams:

• Identify components: They show where resistors are located in a circuit.
• Show circuit connections: The symbol makes the electrical connections between components easier to follow.
• Indicate component type: Additional marks can show whether the resistor is fixed, adjustable, temperature-dependent, or light-dependent.
• Simplify circuit diagrams: A standard symbol is easier to read than a detailed drawing of the physical component.
• Support circuit design: Standardized symbols allow engineers and technicians to communicate circuit information more consistently.

Where Are Resistor Symbols Used?

Resistor symbols can appear in many types of electrical and electronic diagrams:

• Circuit schematics: Used to show the electrical structure of a circuit.
• Electronic design documents: Used when designing and reviewing electronic circuits.
• Repair diagrams: Help technicians locate and identify components.
• Educational diagrams: Used to explain how circuits work.
• PCB design documentation: Circuit symbols can be connected to component information used during PCB development.

International Standards for Resistor Symbols

Two commonly encountered systems for circuit symbols are the American National Standards Institute (ANSI) system and the International Electrotechnical Commission (IEC) system. Their resistor symbols can look different even though they represent the same basic component.

ANSI

ANSI-related electrical and electronic diagram standards were developed to provide consistent graphic symbols for electrical and electronic diagrams. IEEE Std 315, for example, is an American National Standard for electrical and electronics diagrams and includes graphic symbols and reference designation information.

Typical use: Commonly encountered in U.S.-style electrical and electronic diagrams.

Advantage: The zigzag resistor symbol is visually familiar in many American circuit diagrams.

IEC

The International Electrotechnical Commission develops international standards for electrical and electronic technologies. IEC 60617 provides graphical symbols for diagrams, including symbols for resistive components.

Typical use: Commonly encountered in international and IEC-based technical documentation.

Advantage: The rectangular resistor symbol provides a simple and clean graphic form.

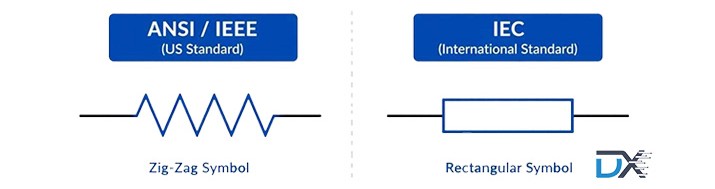

ANSI vs. IEC Resistor Symbols

The important point is that the different shapes do not mean that the resistor has a different electrical function. The drawing convention has changed, while the basic component being represented remains a resistor.

Types of Resistor Symbols

Resistor symbols can be grouped according to whether the resistance is fixed, adjustable, or changes with an external condition such as voltage, temperature, or light.

Type 1: Fixed Resistor

A fixed resistor has a specified resistance value that is not normally adjusted during circuit operation. Its basic symbol is a resistor shape without an adjustment arrow.

In an ANSI-style diagram, it is commonly shown as a zigzag line. In an IEC-style diagram, it is commonly shown as a rectangle.

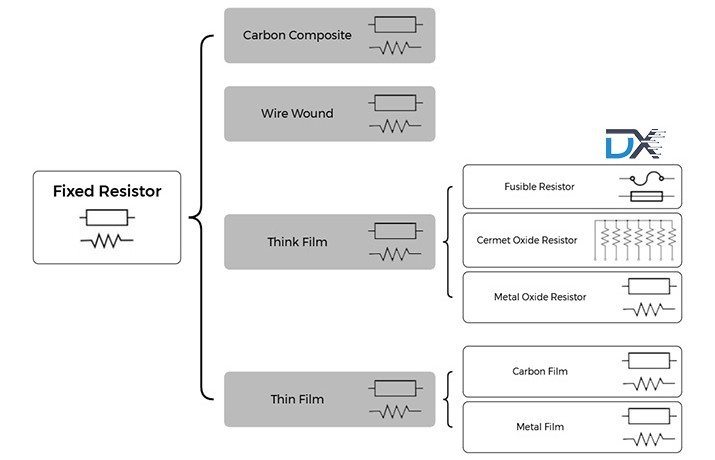

The following image shows resistor symbols for different types of fixed resistors.

Some of them are special types of fixed resistors.

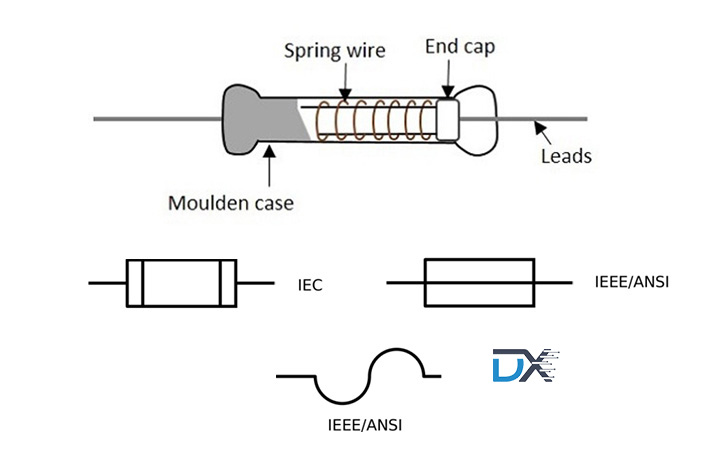

Fuse Resistor

A fuse resistor, also called a fusible resistor in many applications, combines resistance with a protective function. It is designed so that, under specified excessive-current conditions, it can open the circuit.

Its exact graphic representation can depend on the applicable symbol standard and component type. Therefore, the resistor symbol alone should not be used to identify a component as a fuse resistor. The circuit reference, component specification, and diagram legend may also be needed.

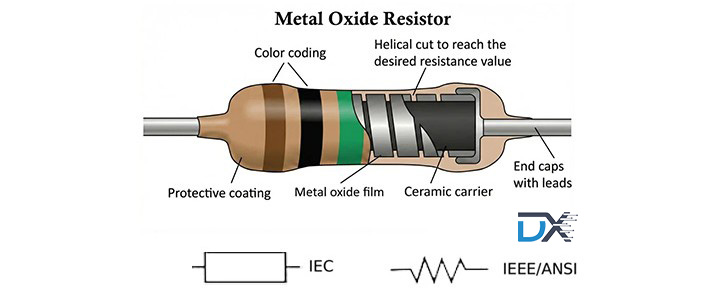

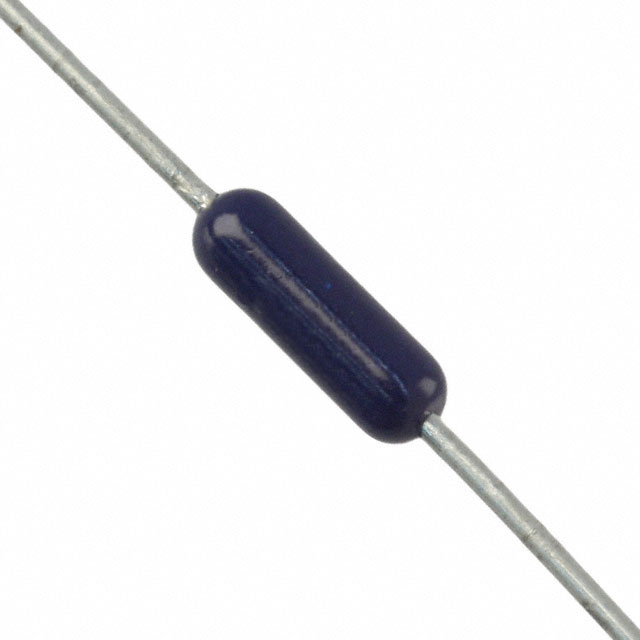

Metal Oxide Resistor

Metal oxide resistors are fixed resistors that use a metal oxide film as the resistive material. They are known for good stability and can be used in a wide range of electronic circuits where a fixed resistance value is required.
In a circuit diagram, a metal oxide resistor is normally represented by the standard fixed-resistor symbol. The symbol itself generally does not distinguish a metal oxide resistor from other fixed resistor technologies, so the component type usually needs to be confirmed from the circuit documentation or component specifications.

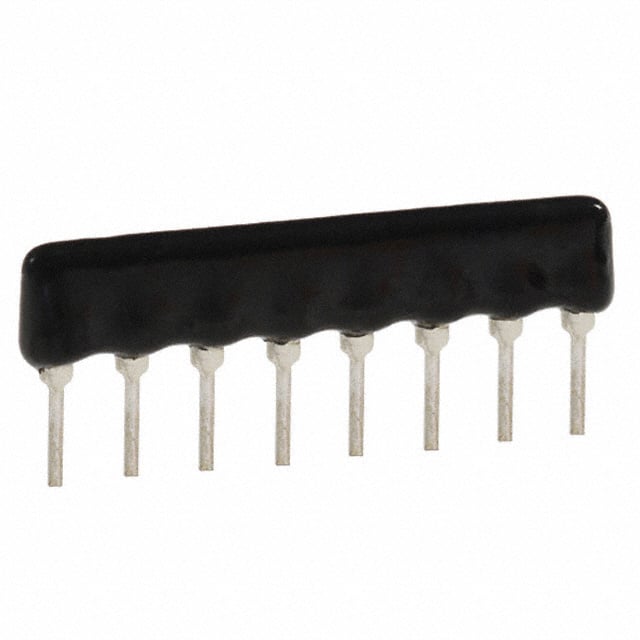

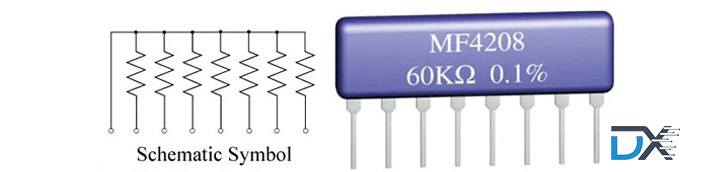

Cermet Oxide Resistor (Network Resistor)

Cermet oxide resistors are resistive components made using a ceramic-metal material system. They can provide stable resistance values and are used in electronic circuits where controlled resistance is required.
The symbol for a cermet oxide resistor can be represented using the standard resistor symbol. When the component is used as part of a resistor network, the circuit diagram may show multiple resistor elements together to indicate their electrical connections.

Type 2: Variable Resistor

A variable resistor is designed so that its resistance can be adjusted. Instead of having only a fixed resistance value, the effective resistance can be changed through a movable contact.

A variable resistor symbol generally adds an arrow or movable-contact indication to the basic resistor symbol. This additional mark helps distinguish an adjustable resistor from a fixed resistor.

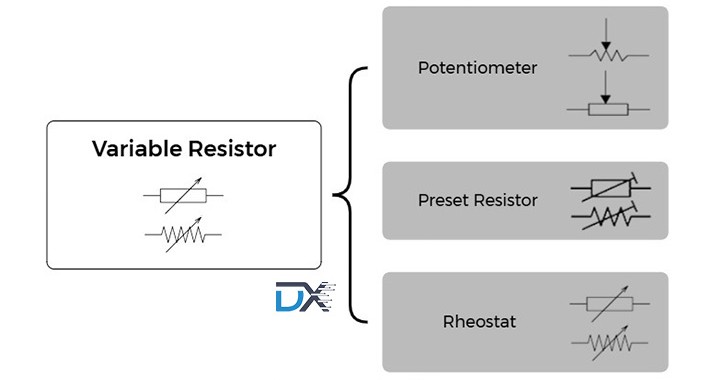

The following image shows resistor symbols for different types of variable resistor.

Some of them are special types of variable resistor.

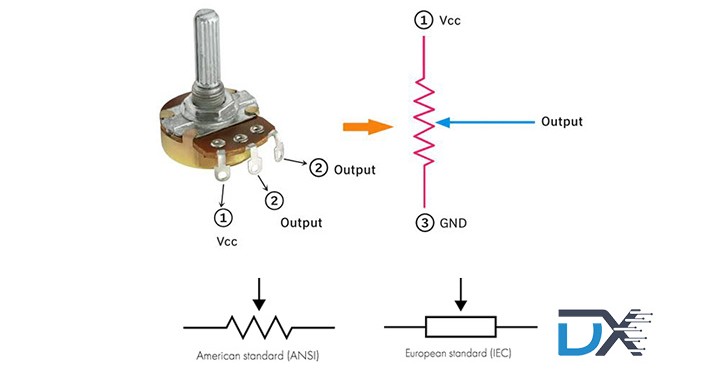

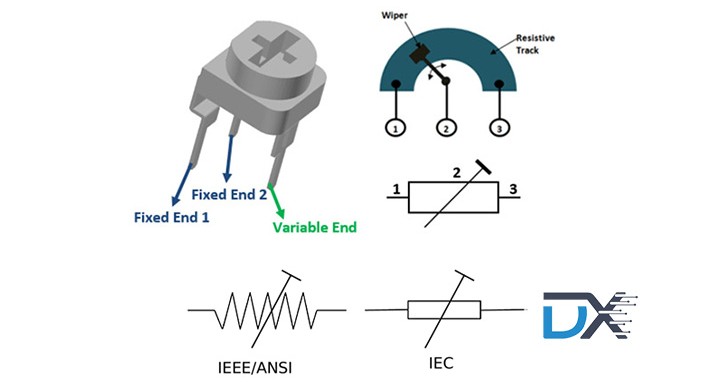

Potentiometer

A potentiometer is a three-terminal adjustable resistor. A movable contact, called a wiper, changes the relationship between the resistance on the two sides of the contact.

Potentiometers are often used when a user needs to adjust a circuit parameter manually, such as setting a level or control position.

The potentiometer symbol is based on a resistor symbol with an additional movable-contact arrow. The arrow points to the resistive element and represents the wiper.

Preset Resistor (Trimmer)

A preset resistor, commonly called a trimmer, is an adjustable resistor intended to be set during manufacturing, testing, or servicing rather than adjusted frequently by the end user.

Its symbol indicates that the resistance can be adjusted. The exact symbol can vary depending on the drawing standard and the specific type of adjustable resistor.

Type 3: Non-Linear Resistor

Non-linear resistors are resistive components whose resistance changes depending on external conditions such as voltage, temperature, or light, rather than remaining constant like a fixed resistor.

Their symbol is generally based on the standard resistor shape (zigzag or rectangle) with additional markings such as arrows or condition indicators to show their dependency. The key feature of these components is that their resistance is not fixed but varies in response to environmental or electrical changes.

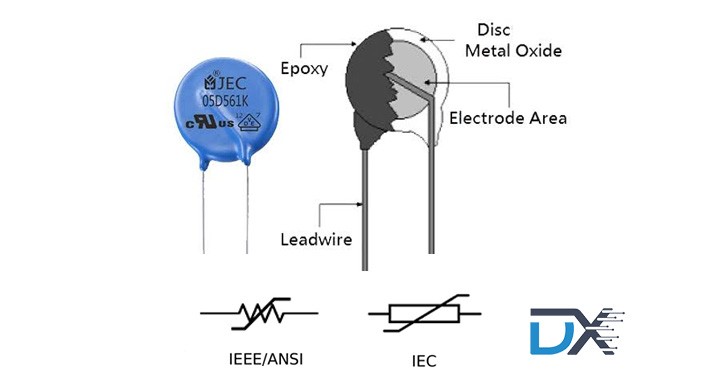

Varistors(VDR)

A varistor, also called a voltage-dependent resistor (VDR), changes its resistance according to the voltage across it. An MOV is a common type of varistor.

At normal operating voltage, a varistor can have relatively high resistance. When the voltage rises significantly, its resistance decreases, allowing it to help limit the effect of a voltage surge.

The varistor symbol is based on a resistor symbol with additional graphical markings.

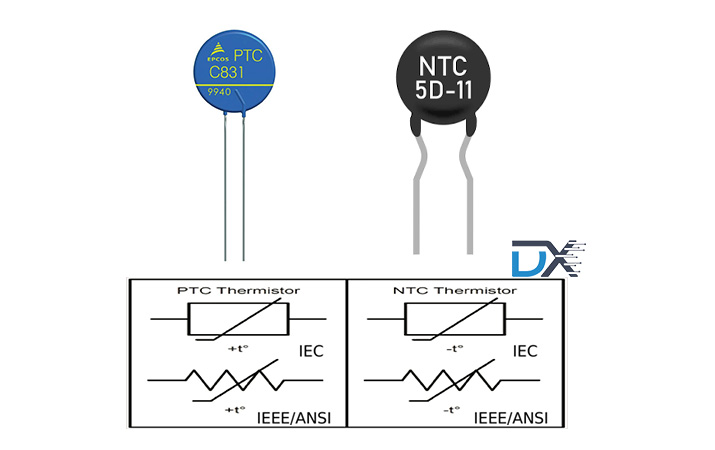

Thermistor

A thermistor is a resistor whose resistance changes significantly with temperature. Two common types are NTC and PTC thermistors.

For an NTC thermistor, resistance generally decreases as temperature increases. For a PTC thermistor, resistance generally increases as temperature increases over its specified operating range.

The thermistor symbol adds temperature-related markings to the resistor symbol.

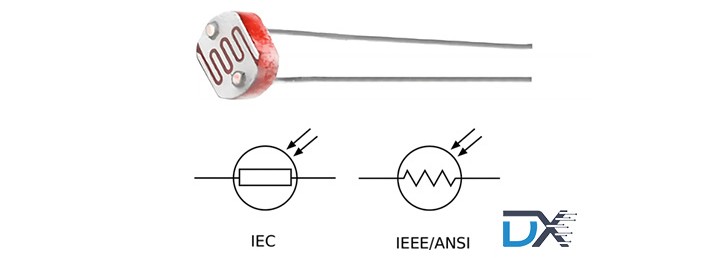

LDR (Light Dependent Resistor)

An LDR, or light-dependent resistor, changes its resistance according to the amount of light reaching its surface. It is also known as a photoresistor.

In a circuit, an LDR can be used when a circuit needs to respond to changes in light level. For example, a light-sensitive circuit can use the changing resistance of an LDR as an input.

The LDR symbol is based on a resistor symbol with additional arrows representing incident light.

How to Identify Resistor Symbols in a Circuit

When reading an unfamiliar circuit diagram, you can identify a resistor symbol by following a few simple steps:

1. Look for the basic resistor shape: Check for a zigzag line or rectangle, depending on the drawing system.

2. Check for additional marks: An arrow may indicate an adjustable resistor, while other markings may indicate temperature, light, or voltage dependence.

3. Check the connection points: Follow the wires connected to the resistor symbol to understand its position in the circuit.

4. Look at the reference designation: A resistor is commonly identified by the letter “R” followed by a number, such as R1 or R2.

5. Check the component value: Look for the resistance value and tolerance in the schematic or component information.

Resistor Symbols vs. Other Component Symbols

Resistor symbols can sometimes be confused with other passive-component symbols, especially when reading a circuit for the first time. Looking at both the shape and the function can make the difference easier to understand.

Resistor vs. Capacitor

A resistor is represented by a zigzag or rectangular symbol, while a capacitor is commonly represented by two plates separated by a gap.

The two components also perform different functions. A resistor provides resistance to current, while a capacitor stores electrical energy in an electric field.

Resistor vs. Inductor

A resistor is shown using a zigzag or rectangular form, while an inductor is commonly drawn as a series of loops or coils.

A resistor mainly provides resistance to current. An inductor stores energy in a magnetic field and responds to changes in current.

Resistor, Capacitor, and Inductor Symbol Comparison

Conclusion

The resistor symbol is one of the basic symbols used in circuit diagrams. Although its appearance can differ between drawing standards, its purpose is to represent a resistive component and show its position in a circuit.

The two resistor styles most often encountered are the zigzag form associated with American-style diagrams and the rectangular form used in IEC-style diagrams. Beyond fixed resistors, additional markings can identify variable resistors, potentiometers, varistors, thermistors, and light-dependent resistors.

Once you understand the basic resistor symbol and the meaning of its additional markings, circuit diagrams become much easier to read. For engineers, technicians, buyers, and other electronics professionals, recognizing these symbols is a simple but useful foundation for understanding electronic components and circuit designs.

Frequently Asked Questions

Why Are Resistor Symbols Different in Some Circuit Diagrams?

Resistor symbols can look different because circuit diagrams may follow different graphical-symbol conventions. For example, a resistor may be shown as a zigzag line or a rectangle, while both symbols represent a resistor. IEC 60617 provides standardized graphical symbols for electrical diagrams, while American-style diagrams have traditionally used the zigzag form.

What Symbol Is Used to Represent a Variable Resistor?

A variable resistor is generally represented by a resistor symbol with a diagonal arrow or movable-contact indication. The added marking shows that the resistance can be adjusted or varied rather than remaining at one fixed value.

How Is a Fixed Resistor Shown in a Circuit Diagram?

A fixed resistor is represented by the standard resistor symbol without a variable-resistance marking. Depending on the drawing convention, it may appear as a zigzag line or a rectangular box.

Why Does the Resistor Symbol Use a Zigzag Line?

The zigzag line is a conventional graphical representation used to identify a resistor in many circuit diagrams. It is a diagram symbol rather than a representation of the resistor's actual physical shape; the rectangular resistor symbol is another widely used convention.

What Is a Resistor Used For in a Circuit?

A resistor provides a controlled amount of electrical resistance and is commonly used to limit current and create a predictable voltage drop. Resistors are also widely used for functions such as voltage division, signal conditioning, and setting operating conditions in electronic circuits.
