What Is HBM? How High Bandwidth Memory Powers AI Computing

Introduction

With the rapid growth of artificial intelligence (AI), large-scale models, and high-performance computing (HPC), modern chips must handle ever-increasing amounts of data.

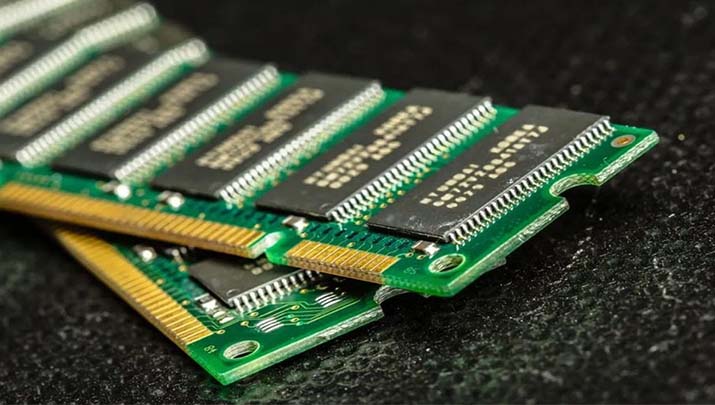

However, traditional memory technologies like DDR and GDDR can still become a bottleneck during AI training, as processors often wait for data from memory. To address this limitation, HBM (High Bandwidth Memory) has emerged as a key solution for high-performance computing systems.

HBM is a new type of memory technology that improves data transfer speed by stacking multiple DRAM chips vertically. It also relies on advanced packaging techniques to connect these layers efficiently. This article will introduce HBM’s structure, advantages, applications, development, major manufacturers, and future opportunities and challenges.

What Is HBM? The Architecture of HBM

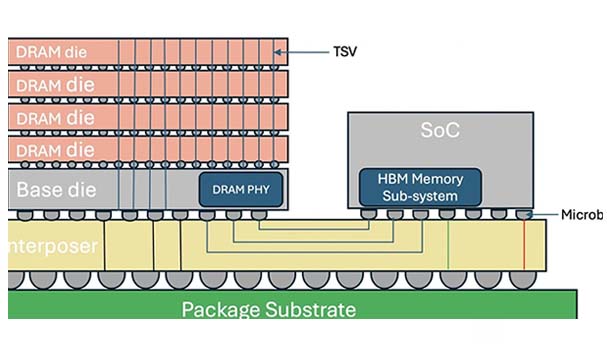

HBM is a high-performance DRAM technology that uses uses a 3D stacking architecture. It vertically connects multiple memory chips and uses TSV (Through Silicon Via) technology to enable high-speed data communication between different layers. This structure allows HBM to provide much wider data channels within a smaller physical space.

Compared with traditional memory technologies, HBM offers higher bandwidth and lower latency. It is mainly used in applications that require massive data exchange, including AI accelerators, supercomputers, and graphics processors. SK hynix’s HBM3E 12-layer product has reached a capacity of 36GB and provides more than 1TB/s-level memory bandwidth.

Key Characteristics of HBM Architecture

• 3D-Stacked DRAM Architecture
  HBM is constructed by vertically stacking multiple DRAM dies, creating a compact three-dimensional memory structure. This stacking method greatly improves memory density within a limited physical area. According to JEDEC standards for HBM design, multiple DRAM layers are integrated to maximize bandwidth per unit area.
• Through-Silicon Via (TSV) Interconnects
  TSVs are vertical electrical pathways that pass through silicon dies to connect different memory layers. They enable extremely fast and efficient data transfer between stacked DRAM chips. Industry documentation from major memory manufacturers such as SK hynix and Samsung confirms that TSVs are a core enabling technology for HBM’s high bandwidth.
• Ultra-Wide Parallel Interface
  HBM adopts an ultra-wide interface, typically 1024-bit or higher, allowing large volumes of data to be transferred simultaneously. This parallel structure significantly increases memory bandwidth compared with traditional DDR or GDDR memory. JEDEC specifications highlight that this wide interface is one of the key reasons HBM can exceed terabyte-per-second bandwidth levels.
• 2.5D Processor Integration

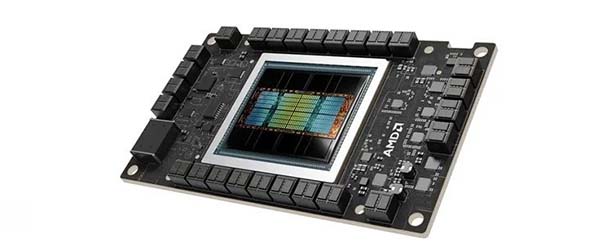

  In 2.5D integration, HBM stacks are placed on the same silicon interposer as GPUs or AI processors. This design reduces the physical distance between memory and compute units, lowering latency and improving overall efficiency. It is widely used in modern AI accelerators such as NVIDIA and AMD high-performance GPU platforms.

• Thermal Management and Packaging Design
  Because multiple DRAM layers are stacked vertically, HBM generates higher thermal density compared with traditional memory. Advanced packaging techniques, such as silicon interposers and heat spreaders, are required to manage heat dissipation. Industry research shows that thermal management is a critical factor in ensuring long-term reliability and performance stability.
• Parallel Memory Channels (Vault Architecture)
  HBM architecture divides memory into multiple independent channels, often referred to as vaults. Each vault can operate in parallel, significantly improving data access efficiency. According to JEDEC HBM specifications, this parallel channel design is essential for achieving high throughput in AI and HPC workloads.

What’s The Main Advantages of HBM?

After understanding HBM’s architecture, it becomes easier to see why this technology has become increasingly important in the AI era. Its advantages mainly come from its unique stacking structure and extremely wide data channels.



• Higher memory bandwidth: By using a wide interface design, HBM enables a much larger amount of data to be transferred at the same time, providing significantly higher bandwidth than traditional memory solutions.
• Faster data access: HBM reduces the distance between memory layers and processors, which helps shorten data transmission time and achieve lower latency compared with DDR and GDDR memory.
• More compact design: Through vertical chip stacking technology, HBM integrates multiple memory layers into a smaller area, reducing the overall physical footprint of the memory system.
• Better energy efficiency: HBM can transfer large volumes of data with lower power requirements, improving energy efficiency in high-performance computing environments.

Where Is HBM Used?

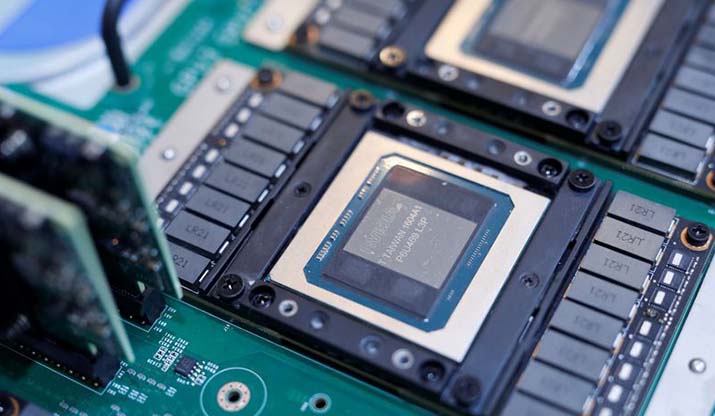

As AI models continue to grow in size, data centers and high-performance computing systems require increasingly higher memory bandwidth. With its high-speed data transfer capability, HBM has become an important component in many advanced computing fields.

• Artificial Intelligence (AI): Provides high-speed memory support for AI training and inference, especially for large AI model development.
• High-Performance Computing (HPC): Supports complex scientific computing tasks such as climate simulation and physical modeling.
• GPU and Graphics Processing: Improves image rendering efficiency and supports high-resolution real-time computing.
• Data Centers: Helps large-scale server systems process and analyze massive amounts of data. Autonomous Driving: Supports the processing of data from cameras, radar, and other sensors.
• Edge Computing Devices: Provides high-performance data processing capabilities in limited physical space.

Different Types of HBM

HBM technology has developed from HBM, HBM2, HBM2E, HBM3, to HBM3E. Each generation has improved in terms of data rate, capacity, and energy efficiency. Future versions such as HBM4 and HBM4E are expected to further increase bandwidth and I/O capability.

Micron focuses on high-performance memory solutions and continues to expand its HBM development for AI and cloud computing markets. Through cooperation with GPU manufacturers and data center customers, Micron is gradually strengthening its position in the high-end memory market.
