How to Test a Capacitor? Practical Methods for You

Introduction

Capacitors are common components found in power supplies, motors, control boards, and many other electronic devices. They store electrical energy and help circuits work properly, so testing a capacitor is an important part of electrical troubleshooting.

A faulty capacitor may cause a circuit to work incorrectly or stop working completely. This guide explains how capacitors work, why they need to be tested, and several ways to check their condition with or without test equipment.

Why Is It Important to Test Capacitors?

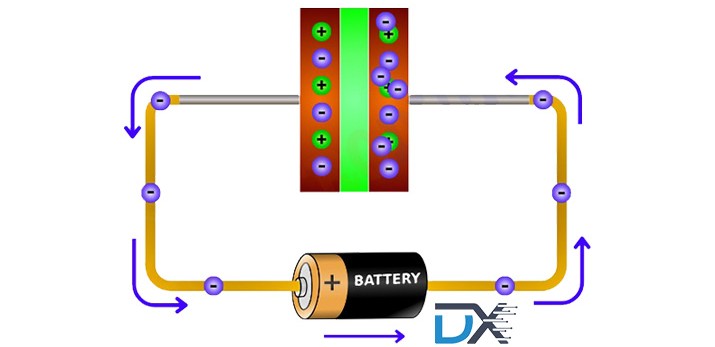

How a Capacitor Works

A capacitor stores electrical energy between two conductive plates separated by an insulating material called a dielectric. When connected to a circuit, it can charge and discharge electrical energy as the circuit requires.

Why We Need to Test Capacitors

Capacitors can help stabilize voltage, filter unwanted electrical signals, provide starting or running support for motors, and perform other functions in electronic circuits. When a capacitor fails, it may become open, shorted, or change its capacitance, which can prevent the circuit from operating correctly.

Regular testing can help identify a capacitor that is no longer working as expected before it causes further circuit problems. Once the capacitor has been safely discharged, different testing methods can be selected according to the available tools and the type of capacitor.

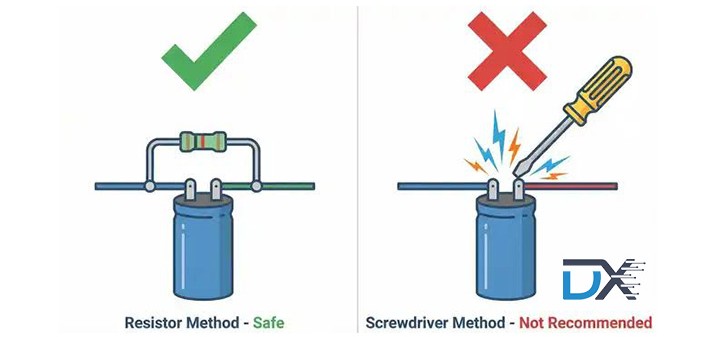

Discharge the Capacitor

-- An Important Step Before Testing

Before testing a capacitor, always turn off the power and safely discharge the capacitor because it may still hold electrical energy after the circuit has been switched off.

Steps to Safety Discharge the Capacitor

1. Turn off the power : Disconnect the equipment from its power source before starting the test.

2. Confirm that the circuit is not energized: Use a properly rated digital multimeter set to the appropriate AC/DC voltage range to verify that no dangerous voltage remains across the capacitor terminals.

3. Connect a suitable discharge resistor: Connect the resistor across the capacitor terminals so the stored energy can be released in a controlled way.

4. Allow the capacitor to discharge: Keep the resistor connected for the required time according to the capacitor and equipment specifications.

5. Confirm the voltage again: Use a meter to check that the capacitor has been discharged before touching its terminals or testing it.

How to Test a Capacitor With Test Tools

Different tools can check different characteristics of a capacitor. A capacitance measurement provides a direct indication of the capacitor's capacitance, while resistance, continuity, and voltage tests can help identify certain faults.

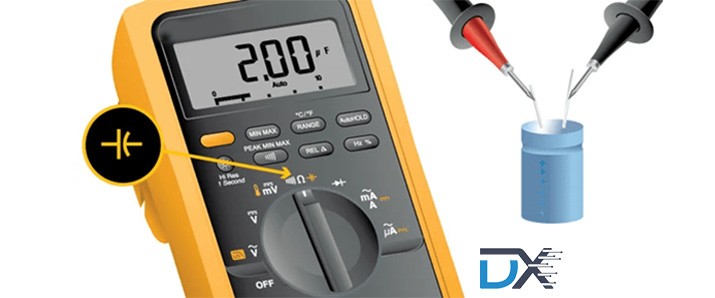

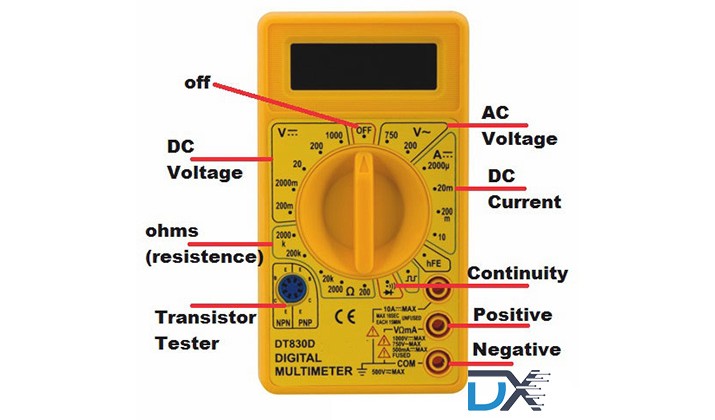

Use a Multimeter in Capacitance Mode

Capacitance mode measures the capacitor's capacitance by charging it with a known current, measuring the resulting voltage, and calculating the capacitance.

1. Set the multimeter to capacitance mode.

2. Connect the black probe to one capacitor terminal and the red probe to the other.

3. Compare the measured capacitance with the value marked on the capacitor and the applicable tolerance specification. If the value is significantly lower or unstable, the capacitor is likely failing and should be replaced.

Use a Multimeter in Resistance Mode

Resistance mode can provide a basic indication of whether a capacitor behaves like an obvious short circuit or open circuit. However, it does not directly measure capacitance and should not be treated as a complete capacitor test.

1. Set the multimeter to resistance mode.

2. Connect the probes across the capacitor terminals.

3. Observe how the resistance reading changes.

4. a normal capacitor will show a low resistance at first and then the value will gradually increase toward infinity as it charges

   a steady low resistance usually indicates a shorted capacitor

   no noticeable change or an always high/OL reading suggests an open or failed capacitor

Use a Multimeter in Continuity Mode

Continuity mode is mainly useful for checking whether there is a direct low-resistance path between two points.

1. Set the multimeter to continuity mode.

2. Place the probes across the capacitor terminals.

3. Observe the meter response and interpret the capacitor condition:

• a continuous beep or near-zero resistance indicates a shorted capacitor; no beep or no response indicates an open capacitor;
• a brief beep that quickly stops suggests a normal charging response;
• intermittent or unstable beeping may indicate leakage or internal degradation.

Use a Voltmeter

A voltage test can help determine whether a capacitor is holding or receiving the expected voltage in an operating circuit. It is mainly useful for checking the voltage condition rather than directly measuring capacitance.

1. Identify the voltage type used by the circuit, such as AC or DC.

2. Set the meter to the appropriate voltage mode.

3. Follow the equipment's safety procedure before accessing the capacitor.

4. Place the probes across the appropriate capacitor terminals.

5. Interpret the voltage reading to assess the capacitor’s condition:

• a stable voltage near the expected value suggests normal operation,
• a rapidly dropping or zero reading indicates a discharged or open capacitor,
• an unstable or slowly decaying voltage may suggest leakage or internal degradation.

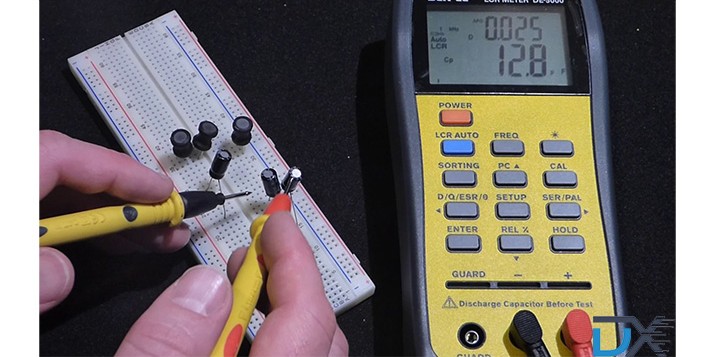

Use a Dedicated Capacitor Tester

A dedicated capacitor tester can come in several forms, including handheld digital capacitance meters, LCR meters, ESR meters for evaluating capacitor health under load conditions, and more advanced bench-top capacitor analyzers that can test leakage current, tolerance, and frequency response.

These instruments may provide not only capacitance values but also diagnostic signals that indicate whether a capacitor is healthy, degraded, or failed.

1. Turn off the equipment and discharge the capacitor.

2. Select the appropriate capacitance range or test function based on the capacitor type and expected value.

3. Connect the tester to the capacitor terminals with the correct polarity when applicable.

4. Start the measurement and wait for the reading to stabilize. During this stage, observe the tester’s behavior:

• a stable reading near the rated value generally indicates a healthy capacitor,
• a significantly lower reading suggests loss of capacitance or aging,
• a reading that fluctuates or fails to stabilize may indicate internal damage or leakage.

How to Test a Capacitor Without Test Tools

When a meter or capacitor tester is not available, a capacitor can still be inspected for visible damage or evaluated through its behavior in a suitable circuit. These methods provide useful clues but are generally less conclusive than a proper electrical measurement.

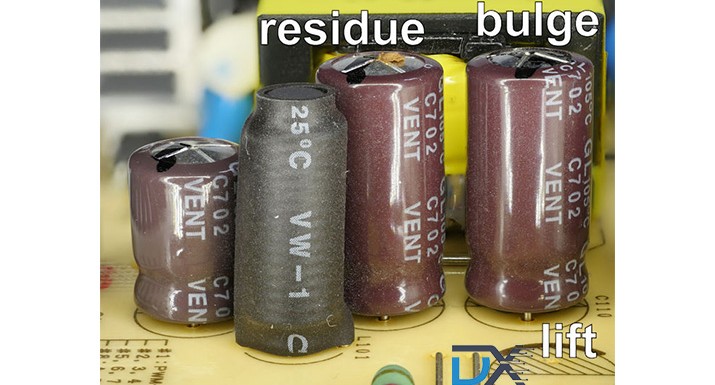

Visual Inspection

A visual inspection is a simple first step because some capacitor failures cause visible physical changes.

Common signs include：

• Bulging or swollen top: A swollen case can indicate internal deterioration and pressure buildup, especially in electrolytic capacitors. A visibly bulged capacitor should be treated as suspect.
• Leaking material: Electrolytic capacitors may show leakage when their internal materials have deteriorated. Leakage is a clear reason for further testing or replacement.
• Cracks or damaged casing: Physical damage can affect the capacitor's insulation or internal structure and may lead to electrical failure.
• Burn marks or discoloration: Darkened areas may indicate overheating or excessive electrical stress and should be investigated before the component is reused.
• Damaged or corroded terminals: Damaged terminals can create poor electrical connections and make the capacitor unreliable.

Checking a Capacitor Using the Time Constant

The charging and discharging behavior of a capacitor can be described using the RC time constant:

τ = R × C

Here,

τ is the time constant in seconds,

R is resistance in ohms

C is capacitance in farads.

For example, with a 10 kΩ resistor and a 100 μF capacitor, the time constant is 1 second. After one time constant during charging through a resistor, the capacitor voltage reaches about 63% of its final value.

The time constant can therefore be used to estimate whether a capacitor is behaving approximately as expected when its circuit conditions are known.

1. Identify the resistance and capacitance values used in the test circuit.

2. Calculate the expected RC time constant using τ = R × C.

3. Connect the capacitor and resistor in the appropriate test circuit.

4. Observe the capacitor's charging or discharging behavior.

5. Compare the measured time with the expected time constant.

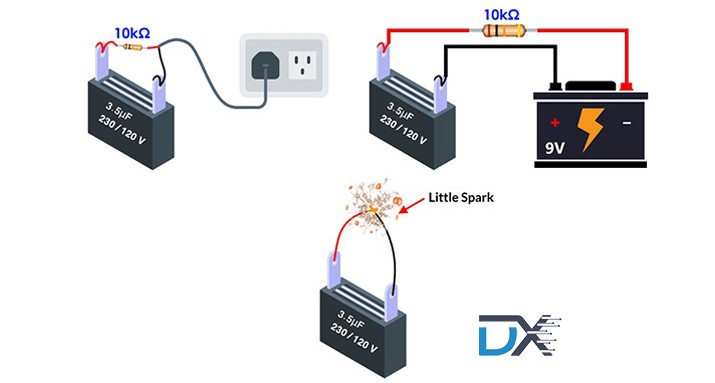

Traditional Shorting Method

The traditional charging method checks a capacitor by charging it with a power source and observing its discharge spark.

A charged capacitor can release stored energy when its terminals are shorted, and the strength of the spark can provide a basic indication of whether the capacitor is able to store electrical energy.

However, this method only provides a rough check and cannot accurately measure capacitance, leakage current, or other electrical characteristics.

Steps

1. Safely discharge the capacitor using a resistor before starting the test.

2. Connect two insulated wires to the two terminals of the capacitor.

3. Connect the capacitor to a suitable power source for a short time (about 1–5 seconds): A low-voltage DC power source is recommended for safety. The charging time should be short to prevent excessive stress on the capacitor.

4. Disconnect the power source and carefully short the two capacitor terminals together using an appropriate insulated tool.

5. Observe the spark produced during discharge.

6. Evaluate the capacitor based on the discharge result:

• A strong and visible spark: The capacitor is able to store and release electrical energy, which suggests that it is likely functioning normally.
• A weak spark: The capacitor may have reduced capacitance, increased internal leakage, or degraded performance.
• No spark: The capacitor may be open, unable to store charge, or completely failed.

Important Notes:

• Wear safety glasses and appropriate protective equipment when performing this test.
• Never connect a polarized capacitor directly to an AC power source because reverse polarity can damage the capacitor and create a safety hazard.
• For safer testing, use a low-voltage DC power supply for both polarized and non-polarized capacitors.
• To limit charging current and protect the capacitor, connect a resistor in series between the power source and the capacitor during charging.
• This method should only be used as a basic functional check. A dedicated capacitor tester or multimeter with capacitance measurement provides a more accurate evaluation.

Test Methods Comparison

Other Situations to Test a Capacitor

The best testing method can change depending on where the capacitor is installed and how it operates. The following methods cover several situations where a standard standalone capacitance test may not be enough.

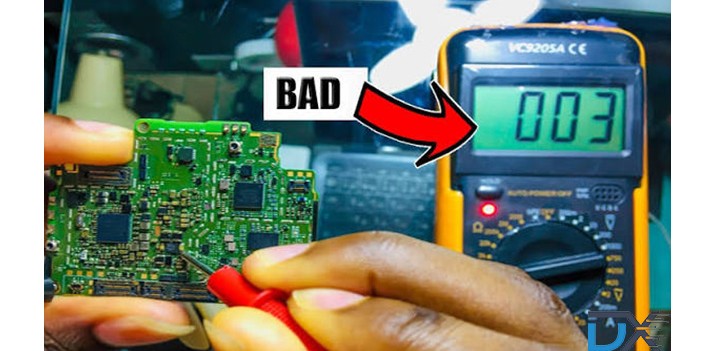

Test a Capacitor In-Circuit

Testing a capacitor while it remains connected to a circuit can save time, but other components may affect the measurement. Fluke notes that parallel circuit paths can change resistance measurements, which is why removing or isolating the component can provide a more reliable result.

1. Turn off and isolate the equipment from its power source.

2. Safely discharge the capacitor.

3. Identify the capacitor and its connection points.

4. Connect the probes to the capacitor terminals.

5. Record the reading, unexpected readings (short or infinite resistance) suggest a problem.

6. If the result is unclear, disconnect at least one capacitor terminal and repeat the test.

Test AC Run Capacitors

AC run capacitors are used in equipment such as motors, ceiling fans, and HVAC systems. Testing should focus on the capacitor's capacitance and operating voltage while following the equipment manufacturer's service procedure.

1. Turn off and isolate the equipment from the power supply.

2. Confirm that the circuit is de-energized.

3. Safely discharge the capacitor.

4. Record the capacitor's marked capacitance and voltage ratings.

5. Disconnect the capacitor when required for accurate measurement.

6. Measure its capacitance with a suitable meter or capacitor tester.

7. Compare the measured value with the applicable specification.

8. Replace the capacitor if it fails the manufacturer's specified requirements.

Test Microwave Capacitors

Microwave capacitors require extra caution because microwave ovens can contain high-voltage circuits. Testing should only be performed by someone who understands the equipment's electrical hazards and follows the manufacturer's service procedures.

1. Disconnect the microwave oven from its power source.

2. Follow the manufacturer's service procedure for accessing the high-voltage section.

3. Safely discharge the high-voltage capacitor using an appropriate method and equipment.

4. Verify that the capacitor has been discharged.

5. Disconnect the capacitor as required for testing.

6. Use an appropriate capacitor tester or meter to evaluate the component.

7. Compare the result with the capacitor's specifications. The interpretation of the test results is as follows:

• a reading close to the rated capacitance indicates a normal capacitor
• a significantly lower value suggests capacitance loss or internal degradation
• a reading of zero or near zero may indicate an open circuit or complete failure
• an abnormally high or unstable reading may suggest leakage, dielectric breakdown, or measurement instability.

8. Reassemble the equipment only after the test and safety checks are complete.

Common Capacitor Testing Methods

Common Mistakes to Avoid

Understanding common testing mistakes can help prevent inaccurate results and reduce the risk of equipment damage.

• Testing a capacitor while the circuit is energized
• Skipping the discharge step
• Testing the capacitor without isolating it from the circuit
• Ignoring capacitor polarity
• Judging a capacitor only by appearance

Frequently Asked Questions

What Are the Steps Involved in Testing a Capacitor?

Testing a capacitor usually involves disconnecting power, safely discharging the capacitor, and checking its condition with a suitable method. A multimeter with capacitance mode can directly measure capacitance, while resistance, continuity, or visual inspection can help identify problems such as short circuits, open circuits, or leakage.

How to Test a Capacitor Without a Multimeter?

Without a multimeter, a capacitor can be checked through visual inspection or basic charging and discharging tests. Signs such as bulging, leakage, or abnormal charging behavior may indicate a faulty capacitor, but these methods cannot provide an accurate capacitance measurement.

Which Multimeter Mode Should Be Selected When Testing a Capacitor?

The capacitance mode (usually marked with a capacitor symbol or μF) is the preferred setting for testing a capacitor with a multimeter. In this mode, the meter charges the capacitor with a known current, measures the resulting voltage, and calculates the capacitance value.

Is It Possible to Test a Capacitor While It Remains Connected to the Circuit?

A capacitor can sometimes be tested in-circuit, but other components connected to the same circuit may affect the measurement result. For more accurate testing, it is usually recommended to disconnect the capacitor or remove at least one terminal before measurement.

How Do You Perform a Continuity Test on a Capacitor?

To test a capacitor with continuity mode, first disconnect power and discharge the capacitor, then connect the multimeter probes to both terminals. A continuous beep or very low resistance usually indicates a shorted capacitor, while a normal capacitor may show a brief response as it charges but should not behave like a direct connection.
