Introduction
A resistor is a fundamental and indispensable electronic component in any circuit, with its primary function being to limit and regulate the flow of electric current. By dissipating electrical energy and converting it into heat, it provides a safe voltage or current environment for sensitive electronic devices.
This article presents a comprehensive overview of resistors, covering their basic concepts, working principles, main functional types, technical parameters, and circuit symbol identification.
What is a Resistor?
A resistor is a two-terminal electronic component with a specific resistance value, whose primary role is to oppose the flow of electric current in a circuit. As an essential passive component, it plays a vital role in controlling charge flow and maintaining circuit stability, serving as a building block for proper functionality in nearly all electronic equipment.
Resistors are mainly utilized to control current magnitude and distribute voltage across circuit nodes. Additionally, they can be paired with capacitors and other components for critical functions such as signal filtering, impedance matching, and circuit timing.
Working Principle of a Resistor
The operating mechanism of a resistor relies on the inherent resistance of conductor materials to electron movement. When a voltage is applied across a resistor, free electrons move directionally under the electric field, colliding with atomic nuclei in the material structure and releasing thermal energy.
According to Ohm's Law (I=V/R), under a constant voltage, a higher resistance results in a smaller current flowing through the circuit.
Functions of a Resistor
- Limiting Current: Connecting a resistor in series within a circuit prevents excessive current from burning out sensitive components such as light-emitting diodes (LEDs) or integrated circuits.
- Dividing Voltage: Utilizing a voltage divider circuit formed by two or more resistors in series can step down the supply voltage to the required operating level.
- Filtering Signals: Combining resistors and capacitors to form an RC filter network effectively eliminates high-frequency noise or AC components from signals.
- Impedance Matching: Inserting resistors into high-frequency signal transmission lines achieves impedance matching between the source and load, thereby minimizing signal reflection.
- Providing Load Dissipation: Serving as a dummy load during circuit testing, it absorbs and dissipates surplus electrical energy to simulate actual operating conditions.
Resistance Value of a Resistor
To quantitatively measure the ability of a resistor to oppose current flow, the first step is to understand its resistance value and the units used to describe it.
What is Resistance Value?
Resistance value is the physical quantity that quantifies a physical conductor's ability to oppose current flow, often referred to simply as resistance.
It directly reflects the degree of opposition a material presents to charge movement, where a higher resistance value indicates greater difficulty for current flow.
In circuit design, the resistance value determines current distribution and voltage drop across a loop, making it the most crucial parameter when selecting electronic components.
Units of Resistance Value and Conversions
The SI unit of resistance value is the ohm (Ω), which measures the absolute opposition to current flow. In practical engineering, derived units with metric prefixes are commonly used to conveniently express extremely large or small resistance values, allowing engineers to mark circuit parameters clearly and concisely.
Resistance Value Conversion Table
|
Unit |
Conversion Relationship |
Application |
|
Nanoohm (nΩ) |
1 nΩ = 10⁻⁹ Ω |
Superconductor state characterization, quantum voltage standard systems, ultra-sensitive laboratory instruments |
|
Microohm (μΩ) |
1 μΩ = 10⁻⁶ Ω |
Relay contact resistance measurement, high-current busbar testing, PCB copper trace resistance evaluation |
|
Milliohm (mΩ) |
1 mΩ = 10⁻³ Ω |
Power supply current sensing (Shunt), battery internal resistance testing (ESR), power MOSFET RDS(on) testing |
|
Ohm (Ω) |
Base Unit (1 Ω) |
Power supply current sensing, LED current limiting, power circuit loads |
|
Kiloohm (kΩ) |
1 kΩ = 10³ Ω |
Transistor biasing circuits, MCU pin pull-up/pull-down resistors, audio voltage division |
|
Megaohm (MΩ) |
1 MΩ = 10⁶ Ω |
High-impedance signal detection, insulation resistance testing, high-voltage division sampling |

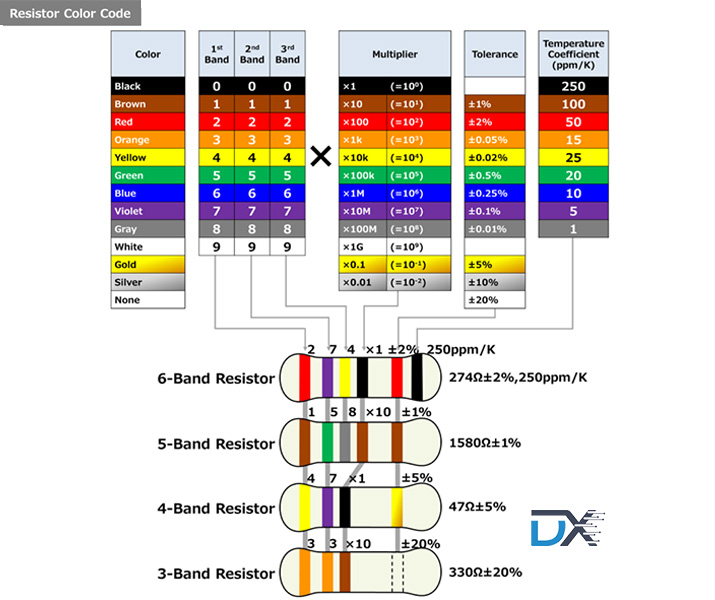

Resistor Color Code
The Resistor Color Code is a system of colored bands printed on the surface of axial resistors, providing a quick way to identify nominal resistance values and tolerance percentages.
Types of Resistors

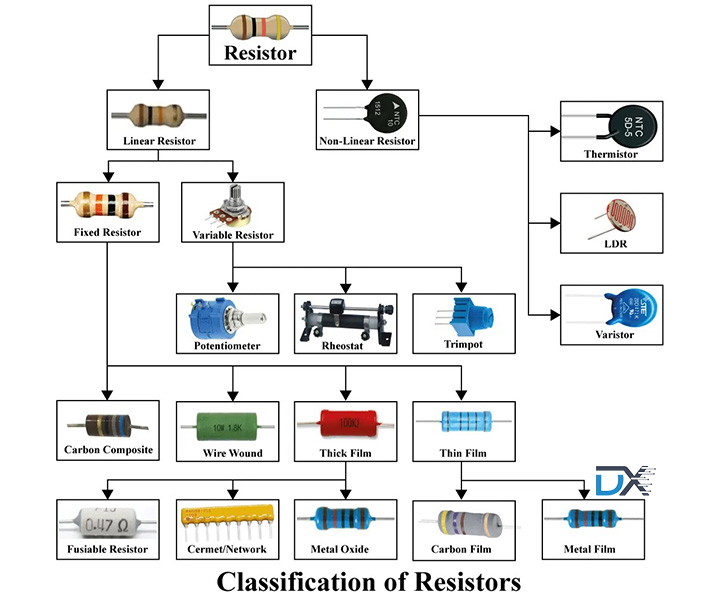

Based on whether the resistance value can be adjusted during operation and its variation characteristics, resistors are generally categorized into three main classes: fixed resistors, variable resistors, and non-linear resistors.
Fixed Resistors
Fixed resistors are components whose resistance values are set during manufacturing and cannot be manually altered. Characterized by simple structures, stable performance, and low costs, they are the most widely used components in electronic circuits.

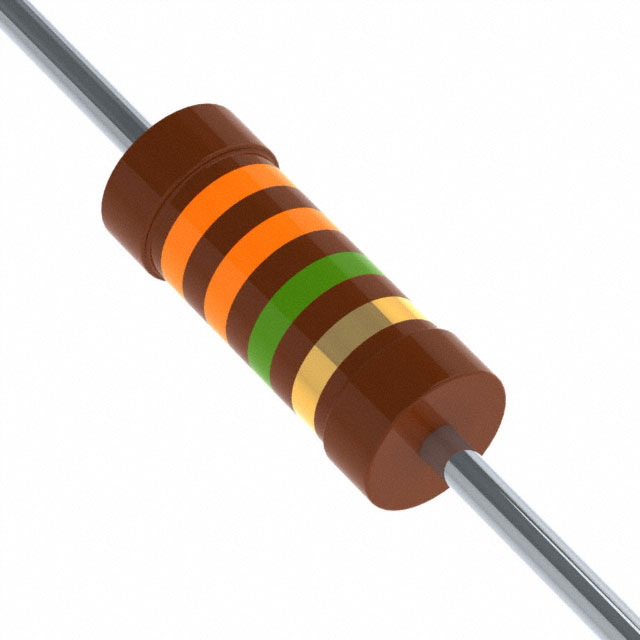

Carbon Composition Resistors

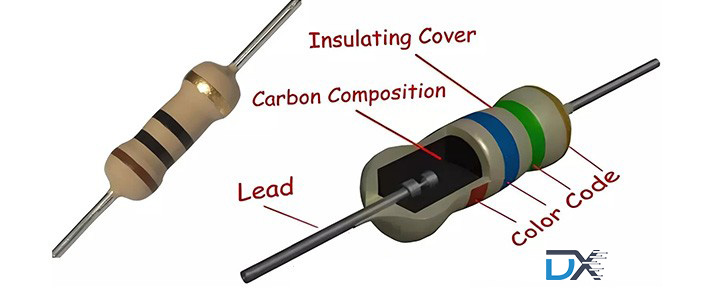

Carbon composition resistors are fixed resistors formed by pressing a mixture of fine carbon powder, granular insulating filler, and organic binders. The internal conductive paths are created by contact between carbon granules, and the surface is typically coated with insulating protective lacquer and color band markings.
These resistors feature strong high-pulse absorption capabilities, though their noise and temperature coefficients are relatively high.
They are frequently used in high-voltage power supply surge pulse absorption and high-energy discharge circuits. In these applications, they utilize their robust resistance to transient high voltages to absorb excess energy and protect downstream circuitry.

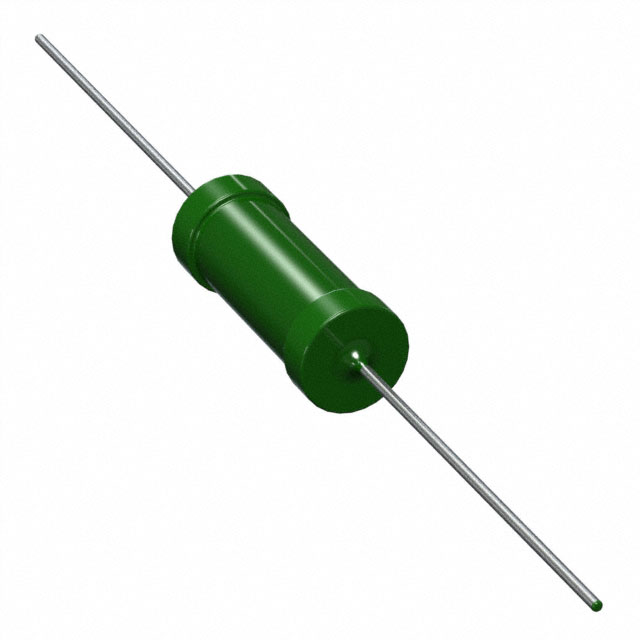

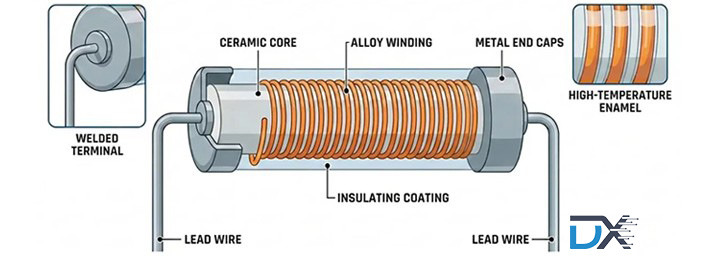

Wire Wound Resistors

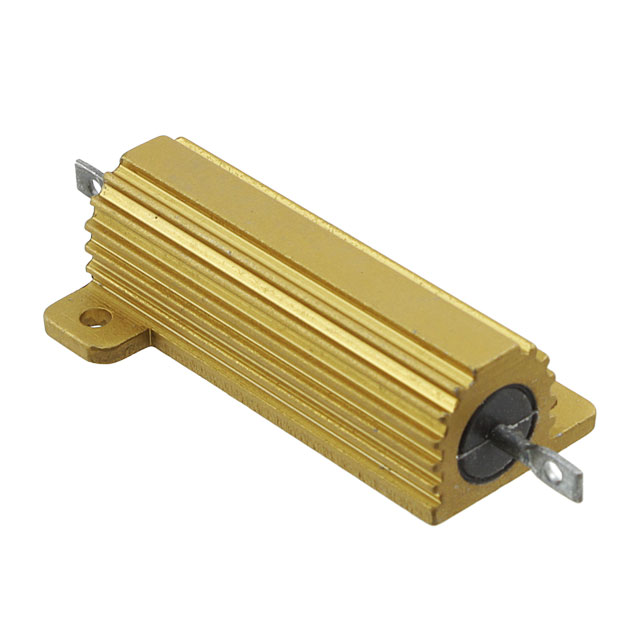

Wire wound resistors are fixed resistors made by uniformly winding high-resistivity alloy wire (such as nichrome) around an insulating ceramic core. They possess extremely high precision, outstanding thermal stability, and large power-handling capacities, with their outer casings often labeled with specific power ratings and resistance values.
However, due to their coiled structure, they exhibit significant parasitic inductance.
Wire wound resistors are extensively used in power adapters, high-power load testing, and motor control circuits. In these scenarios, they are primarily responsible for carrying heavy currents, dissipating energy, or serving as high-precision current-sensing elements.

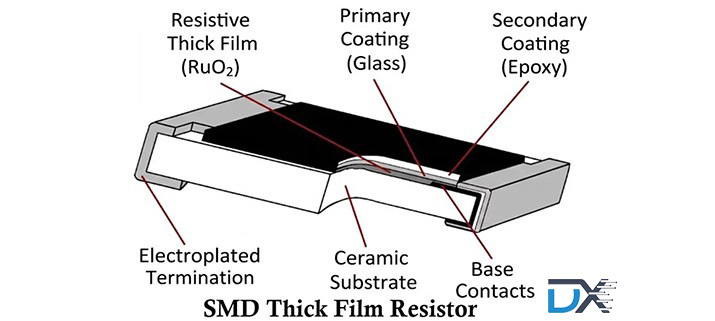

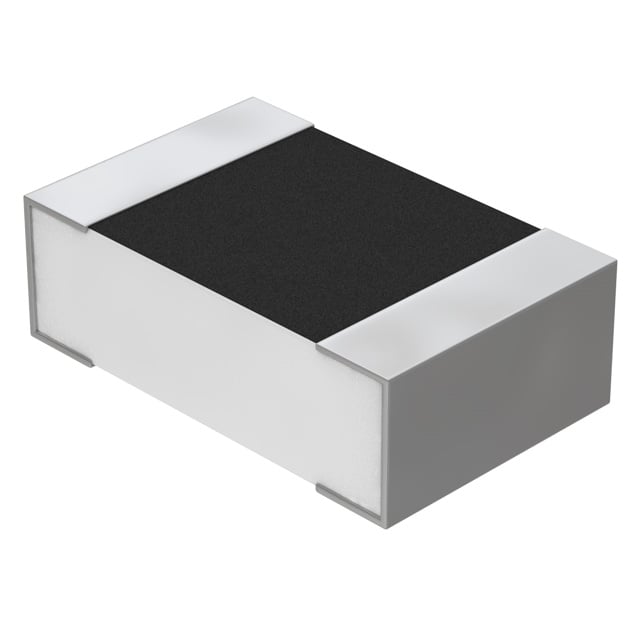

Thick Film Resistors
Thick film resistors are chip-type fixed resistors produced by screen-printing resistive pastes (such as ruthenium dioxide) onto ceramic substrates and sintering them at high temperatures. Featuring compact surface-mount designs and broad resistance ranges, their surfaces are printed with numeric resistance codes.
They offer low production costs and are well-suited for automated surface-mount technology (SMT) processes.
Thick film resistors are widely applied in various consumer electronics, computer motherboards, and automotive electronic circuits, fulfilling basic functions such as current limiting, voltage division, and signal pull-down.
Thin Film Resistors

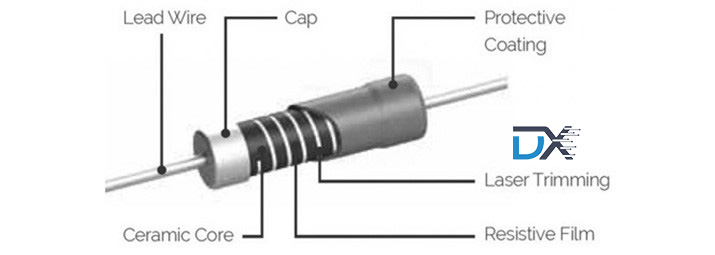

Thin film resistors are manufactured by vacuum evaporation or sputtering techniques to deposit a metallic conductive film—just tens of nanometers thick—onto an insulating substrate. They feature exceptionally high precision (up to ±0.01%), extremely low noise, and superb temperature stability, with highly accurate resistance markings.
Their manufacturing process is significantly more precise than that of thick film resistors.
Thin film resistors are commonly used in precision measuring instruments, medical electronics, and high-end audio equipment. In these applications, they deliver ultra-low-noise and highly stable resistance values to ensure accurate weak-signal amplification.
Variable Resistors
Variable resistors are components whose resistance values can be manually adjusted within a designated range. They typically consist of a fixed resistive element and a movable wiper contact, providing flexible adjustment of circuit parameters.

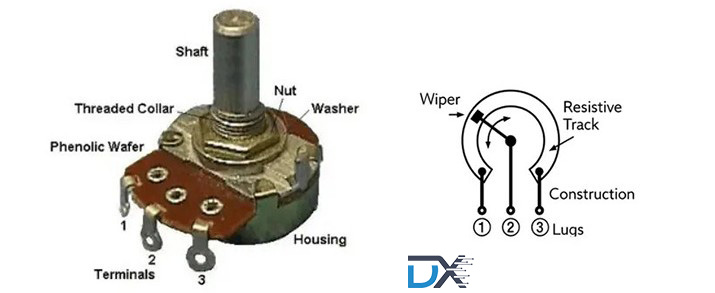

Potentiometer

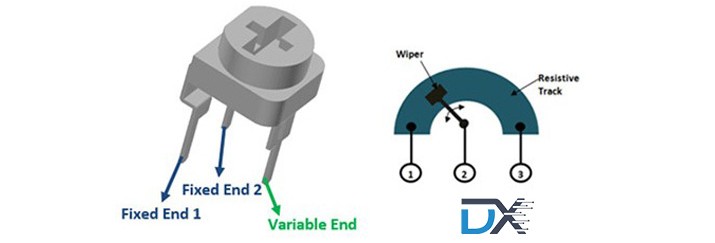

A potentiometer is a three-terminal, manually adjustable variable resistor consisting of an internal resistive element and a rotating or sliding contact. Turning the control shaft changes the position of the contact along the resistive element, thereby altering the resistance between the wiper and the end terminals.
Its housing usually bears markings indicating linear or logarithmic adjustment characteristics.
Potentiometers are primarily used for audio volume control, display brightness adjustment, and parameter settings in instrumentation. By altering voltage division ratios, they convert mechanical rotation into varying control voltage signals.

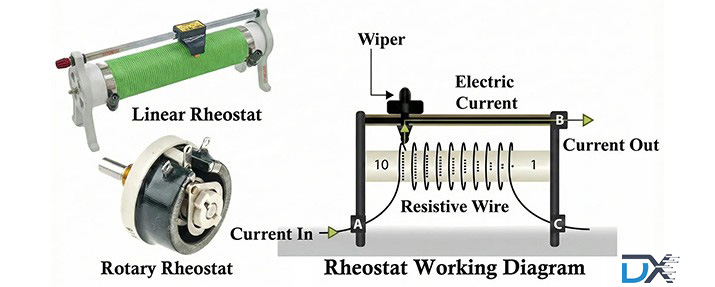

Rheostat
A rheostat is a two-terminal variable resistor specifically designed to regulate circuit current, typically featuring a high power-handling capacity. It adjusts resistance continuously by moving a sliding contact to change the effective length of the resistive wire connected to the circuit.
They are generally large in size and marked with maximum safe current ratings.
Rheostats are mainly applied in physics laboratory instruction, motor startup speed control, and lighting dimmer systems. Connected directly in series within a circuit, they smoothly regulate loop current by adjusting total resistance.
Trimmer
A trimmer is a miniature variable resistor used for precise calibration of internal circuit parameters. Usually mounted directly on printed circuit boards, it requires tools such as screwdrivers for occasional fine-tuning and offers excellent locking stability. Its surface is typically marked with its maximum nominal resistance value.
Trimmers are often used for power module output voltage calibration, sensor zero-point alignment, and radio frequency tuning. They are adjusted during factory testing or maintenance to compensate for circuit deviations caused by component tolerances.
Non-linear Resistors
Non-linear resistors are components whose resistance values change significantly in response to external physical quantities such as temperature, voltage, or light intensity. Exhibiting non-linear current-voltage characteristics, they are highly sensitive to environmental physical fields.

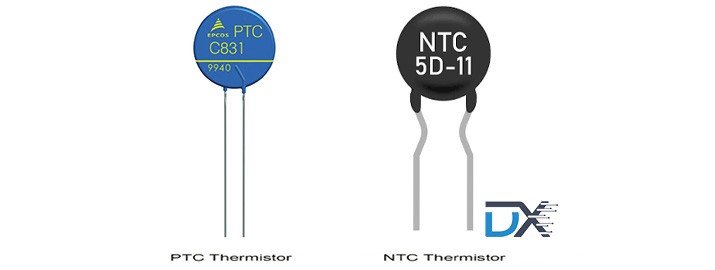

Thermistor
A thermistor is a semiconductor non-linear resistor highly sensitive to temperature variations, categorized into Negative Temperature Coefficient (NTC) and Positive Temperature Coefficient (PTC) types.
As environmental temperature changes, internal charge carrier concentrations shift dramatically, leading to resistance changes spanning orders of magnitude. The component surface usually indicates its room-temperature resistance and temperature coefficient type.
Thermistors are commonly used in temperature sensors, battery overheat protection, and power-on inrush current limiting. NTC thermistors present high initial resistance to absorb surge currents at startup, then drop in resistance as they heat up to minimize power consumption.
Varistor

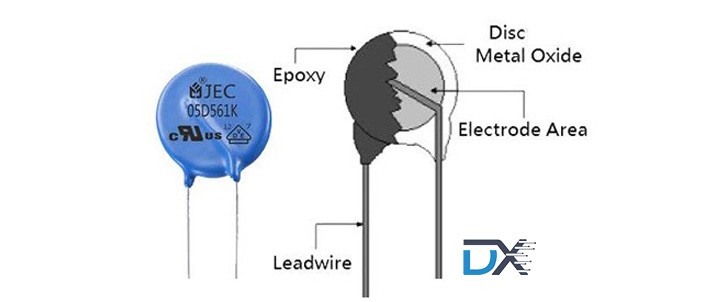

A varistor is a ceramic non-linear resistor whose resistance drops sharply and non-linearly with applied voltage across its terminals. Below a specific voltage threshold, it remains in a high-resistance state; once the voltage exceeds the threshold, its resistance instantly drops to an extremely low level.
The surface is typically marked with its rated varistor voltage value (such as MOV).
Varistors are mainly used for lightning protection and power grid overvoltage surge protection. Connected in parallel across power input terminals, they quickly conduct and discharge high-voltage surges, clamping voltage at safe levels to protect downstream equipment.
Photoresistor

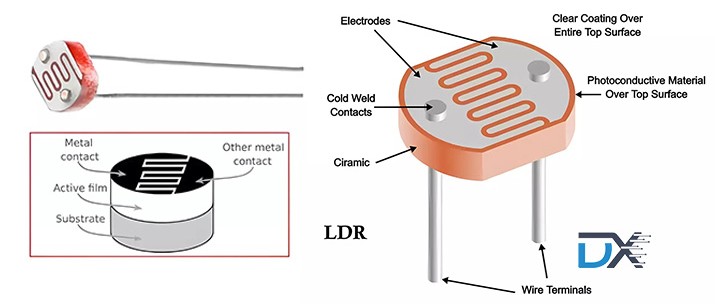

A photoresistor is a non-linear optoelectronic resistor based on the photoconductive effect of semiconductors. In dark environments without light exposure, it exhibits an extremely high resistance value; when exposed to light, photons excite charge carriers, causing resistance to drop rapidly.
Its surface usually features a serpentine photoconductive pattern window.
Photoresistors are primarily used in automated lighting switches, night-light sensors, and light-intensity measuring devices. They convert variations in ambient light intensity into resistance changes, which in turn trigger control circuit operations.
Technical Characteristics of Resistors
|
Resistor Type |
Rated Power |
Nominal Resistance Range |
Temperature Coefficient (TCR, ppm/°C) |
Noise Potential |
Operating Frequency |
|
Carbon Composite |
0.125 W – 5 W |
1 Ω – 22 MΩ | ±1000 to ±1500 |
High (1.0 – 10 μV/V) |
Low to Medium (< 1 MHz) |
|
Wire Wound |
1 W – 250 W+ |
0.1 Ω – 100 kΩ | ±20 to ±400 |
Extremely Low (< 0.1 μV/V) |
Low Frequency Only (< 50 kHz) |
|
Thick Film |
0.0625 W – 1 W |
1 Ω – 10 MΩ | ±100 to ±300 |
Moderate (0.1 – 1.0 μV/V) |
Medium to High (< 100 MHz) |
|
Thin Film |
0.0625 W – 0.5 W |
10 Ω – 1 MΩ | ±5 to ±50 |
Extremely Low (< 0.05 μV/V) |
Very High (> 1 GHz) |
|
Potentiometer |
0.05 W – 2 W |
100 Ω – 1 MΩ | ±200 to ±500 |
Higher (Sliding Contact Noise) |
Low Frequency Only (< 10 kHz) |
|
Rheostat |
5 W – 1000 W+ |
1 Ω – 10 kΩ | ±200 to ±400 |
High (Contact Friction Noise) |
Low Frequency Only (< 5 kHz) |
|
Trimmer |
0.1 W – 0.5 W |
10 Ω – 2 MΩ | ±100 to ±250 |
Moderate |
Low to Medium (< 100 kHz) |
|
Thermistor (NTC/PTC) |
0.01 W – 1 W |
10 Ω – 500 kΩ |
Non-linear (High Negative/Positive) |
Low |
Very Low Frequency / DC |
|
Varistor (MOV) |
0.1 W – 1.5 W (High Pulse) |
Non-linear (High State > 10 MΩ) |
Voltage Dependent |
High |
Transient Response Primary |
|
Photoresistor (CdS) |
0.05 W – 0.2 W |
1 kΩ (Light) – 10 MΩ (Dark) |
High (Optoelectronic Response) |
Higher |
Low Frequency (< 1 kHz) |
Resistor Symbols Identification
In circuit schematics and printed circuit board (PCB) silkscreens, resistors are designated using standard textual reference designators (such as RN, R, VR) to rapidly indicate device types and functional identifiers.
For instance, the letter combination "RN" stands for Resistor Network, typically labeled as RN1 or RN2 on circuit diagrams to signal to engineers that the component is an integrated resistor array. These standardized symbols streamline schematic reading and assembly processes in electronics manufacturing.
|

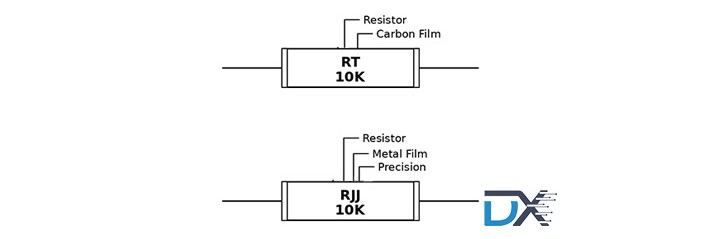

Letters |
Types |
Name |
Symbol |
|
First Letter |
Main Body |
Resistor |
R |
|
|
|
Potentiometer |
W |
|
Second Letter |
Conductor Material |
Carbon Film |
T |
|
|
|
Metal Film |
J |
|
|
|
Metal Oxide Film |
Y |
|
|
|
Wire Wound |
X |
|
Third Letter |
Shape, Performance |
Size |
X |
|
|
|
Precision |
J |
|
|
|
Measuring |
L |
|
|
|
High Power |
G |
Applications of Resistors
- LED Current Protection: Connecting a resistor in series within an LED circuit limits operating current and prevents thermal destruction of the light-emitting diode.
- Power Supply Voltage Sampling: In feedback circuits of switching power supplies, two precision resistors divide output voltage proportionally for feedback sampling to the control IC.
- Microcontroller Pull-Up/Pull-Down: Connecting pull-up resistors between MCU digital input pins and power rails ensures pins maintain a defined high-logic state when no input signal is present.
- RC Timing and Oscillation: Resistors paired with capacitors form charging and discharging circuits, achieving timing functions or generating pulse waveforms by controlling the RC time constant.
- Bus Impedance Matching: Connecting a 120 Ω termination resistor in parallel across high-speed CAN or RS485 communication buses absorbs reflected signal waves and maintains signal integrity.
Frequently Asked Questions
What Is the Difference Between Resistance and a Resistor?
Resistance is an electrical property that describes how strongly a material or component opposes the flow of electric current, and its unit is the ohm (Ω). A resistor is a physical electronic component designed to provide a specific amount of resistance in a circuit.
What Are Resistors Used For?
Resistors are used to control current and voltage in electronic circuits. Common uses include limiting current, dividing voltage, setting bias conditions, and establishing defined logic levels.
What Does a Resistor Do in a Circuit?
A resistor limits the flow of electric current and produces a voltage drop when current passes through it. Its effect depends on its resistance value and how it is connected to other components.
What Symbol Is Used to Represent Resistance?
Resistance is represented by the letter R, while its unit is the ohm (Ω). In circuit diagrams, a resistor itself is represented by a resistor symbol, which may appear as a zigzag line or a rectangular shape depending on the schematic convention.
How Are Resistors Classified?
Resistors can be classified according to their construction and electrical behavior. Common groups include fixed resistors, variable resistors, and non-linear resistors, with examples such as thick-film resistors, potentiometers, thermistors, and varistors.
