Analog Devices Inc./Maxim Integrated PD42-4-1370-TMCL

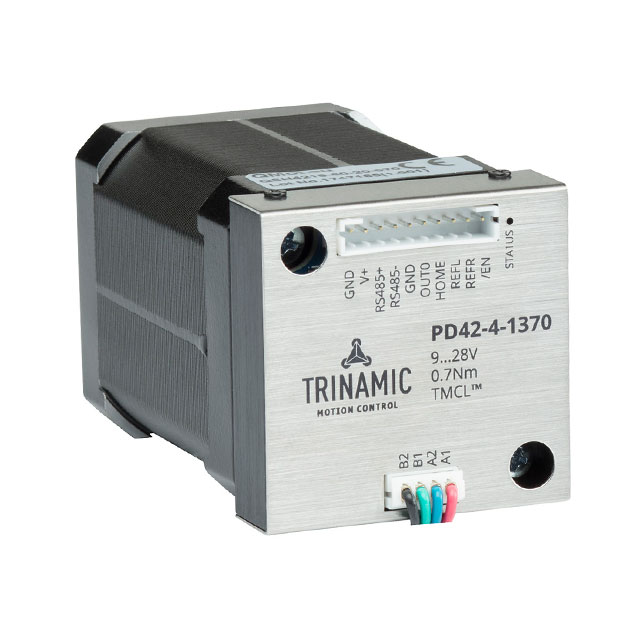

Image shown is a representation only
Manufacturer
Manufacturer No
PD42-4-1370-TMCL
Packaging
Bulk
Description
PANDRIVE NEMA17, 24V, 0.7NM
Detailed Description
Bipolar Stepper Motor Hybrid Frame Size 17 200.0 Step 2 A 4.4VDC
Datasheet
Mfr
Analog Devices Inc./Maxim Integrated
Type
Hybrid
Series
PANdrive™
Accuracy
±5%
Features
Integrated Controller, Flatted Shaft
Coil Type
Bipolar
Packaging
Bulk
Step Angle
1.8°
Rotor Inertia
102gcm²
Coil Resistance
2.3 Ohms
NEMA Frame Size
17
Voltage - Rated
4.4VDC
Diameter - Shaft
0.197" (5.00mm)
Size / Dimension
Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Termination Style
Connector
Base Product Number
PD42-4
Steps per Revolution
200.0
Current Rating (Amps)
2 A
Mounting Hole Spacing
1.220" (31.00mm)
Operating Temperature
-20°C ~ 50°C
Length - Shaft and Bearing
0.945" (24.00mm)
Torque - Holding (oz-in / mNm)
99.1 / 700
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc./Maxim Integrated |
| Type | Hybrid |
| Series | PANdrive™ |
| Accuracy | ±5% |
| Features | Integrated Controller, Flatted Shaft |
| Coil Type | Bipolar |
| Packaging | Bulk |
| Step Angle | 1.8° |
| Rotor Inertia | 102gcm² |
| Coil Resistance | 2.3 Ohms |
| NEMA Frame Size | 17 |
| Voltage - Rated | 4.4VDC |
| Diameter - Shaft | 0.197" (5.00mm) |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Termination Style | Connector |
| Base Product Number | PD42-4 |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 2 A |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Operating Temperature | -20°C ~ 50°C |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Torque - Holding (oz-in / mNm) | 99.1 / 700 |
