Analog Devices Inc./Maxim Integrated PM42L-048-285D

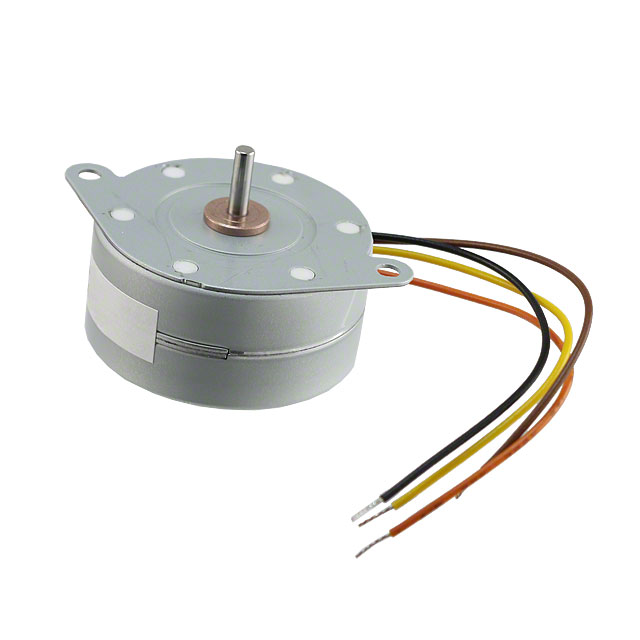

Image shown is a representation only
Manufacturer
Manufacturer No
PM42L-048-285D
Packaging
Bulk
Description
STEPPER MOTORS PERMANENT MAGNET
Detailed Description
Bipolar Stepper Motor Permanent Magnet Frame Size 17 48.0 Step 1 A 3VDC
DataSheet
Mfr
Analog Devices Inc./Maxim Integrated
Type
Permanent Magnet
Coil Type
Bipolar
Packaging
Bulk
Step Angle
7.5°
Part Status
Obsolete
Coil Resistance
3 Ohms
NEMA Frame Size
17
Voltage - Rated
3VDC
Diameter - Shaft
0.118" (3.00mm)
Size / Dimension
Round - 1.650" Dia (42.00mm)
Termination Style
Wire Leads with Connector
Steps per Revolution
48.0
Current Rating (Amps)
1 A
Mounting Hole Spacing
1.949" (49.50mm)
Operating Temperature
75°C
Length - Shaft and Bearing
0.433" (11.00mm)
Torque - Holding (oz-in / mNm)
5.56 / 39.23
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc./Maxim Integrated |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Packaging | Bulk |
| Step Angle | 7.5° |
| Part Status | Obsolete |
| Coil Resistance | 3 Ohms |
| NEMA Frame Size | 17 |
| Voltage - Rated | 3VDC |
| Diameter - Shaft | 0.118" (3.00mm) |
| Size / Dimension | Round - 1.650" Dia (42.00mm) |
| Termination Style | Wire Leads with Connector |
| Steps per Revolution | 48.0 |
| Current Rating (Amps) | 1 A |
| Mounting Hole Spacing | 1.949" (49.50mm) |
| Operating Temperature | 75°C |
| Length - Shaft and Bearing | 0.433" (11.00mm) |
| Torque - Holding (oz-in / mNm) | 5.56 / 39.23 |
