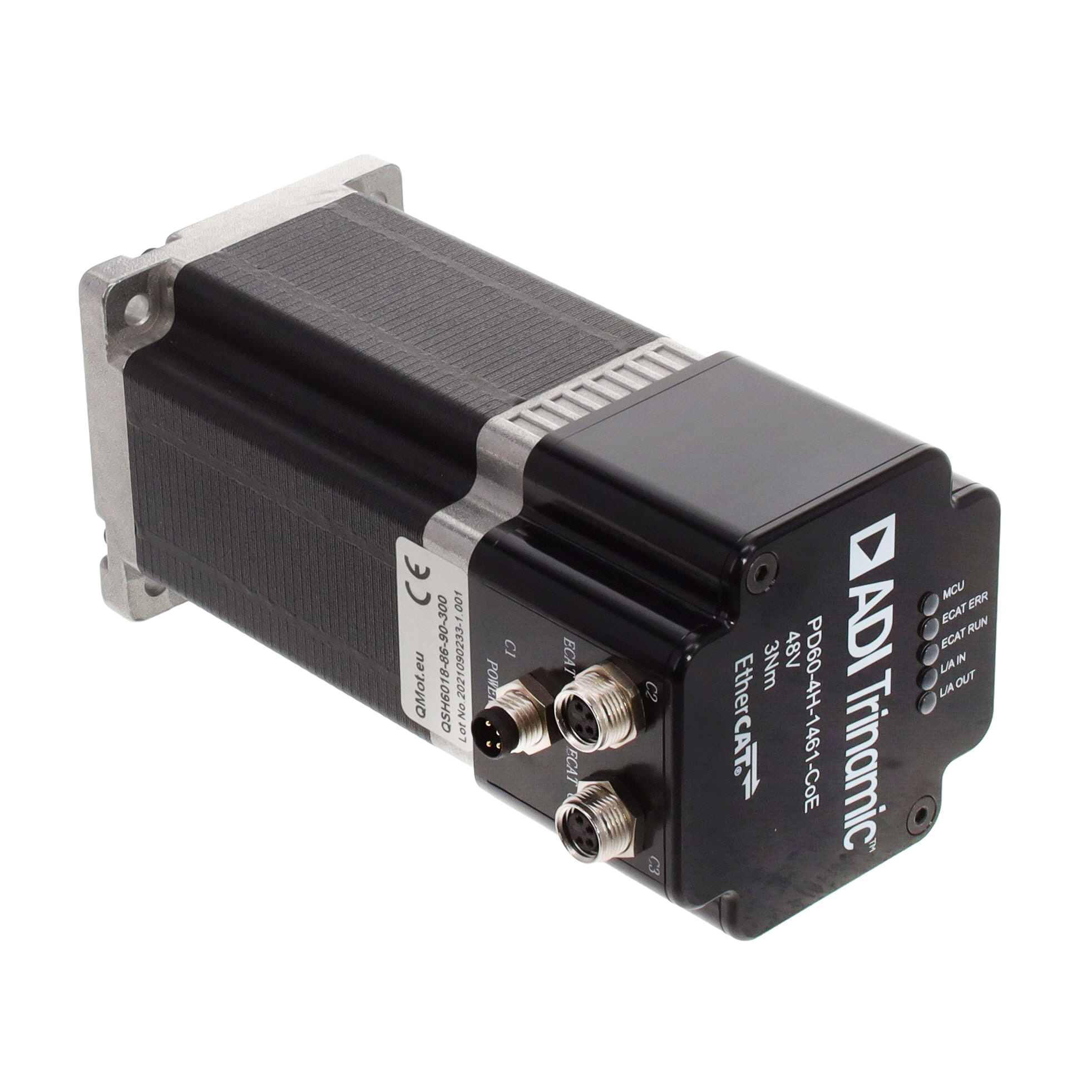

Analog Devices Inc./Maxim Integrated PD60-4H-1461-COE
Image shown is a representation only
Manufacturer
Manufacturer No
PD60-4H-1461-COE
Packaging
Bag
Description
PANDRIVE/ SMART STEPPER MOTOR, 4
Detailed Description
Bipolar Stepper Motor Hybrid Frame Size 24 Step 9 A 48VDC
DataSheet
Mfr
Analog Devices Inc./Maxim Integrated
Type
Hybrid
Series
PANdrive™
Features
Integrated Controller, Flatted Shaft
Coil Type
Bipolar
Packaging
Bag
Part Status
Active
NEMA Frame Size
24
Voltage - Rated
48VDC
Diameter - Shaft
0.315" (8.00mm)
Size / Dimension
Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Termination Style
Wire Leads with Connector
Current Rating (Amps)
9 A
Mounting Hole Spacing
1.856" (47.14mm)
Operating Temperature
-30°C ~ 60°C
Length - Shaft and Bearing
0.945" (24.00mm)
Torque - Holding (oz-in / mNm)
424.93 / 3000
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc./Maxim Integrated |
| Type | Hybrid |
| Series | PANdrive™ |
| Features | Integrated Controller, Flatted Shaft |
| Coil Type | Bipolar |
| Packaging | Bag |
| Part Status | Active |
| NEMA Frame Size | 24 |
| Voltage - Rated | 48VDC |
| Diameter - Shaft | 0.315" (8.00mm) |
| Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) |
| Termination Style | Wire Leads with Connector |
| Current Rating (Amps) | 9 A |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Operating Temperature | -30°C ~ 60°C |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Torque - Holding (oz-in / mNm) | 424.93 / 3000 |
