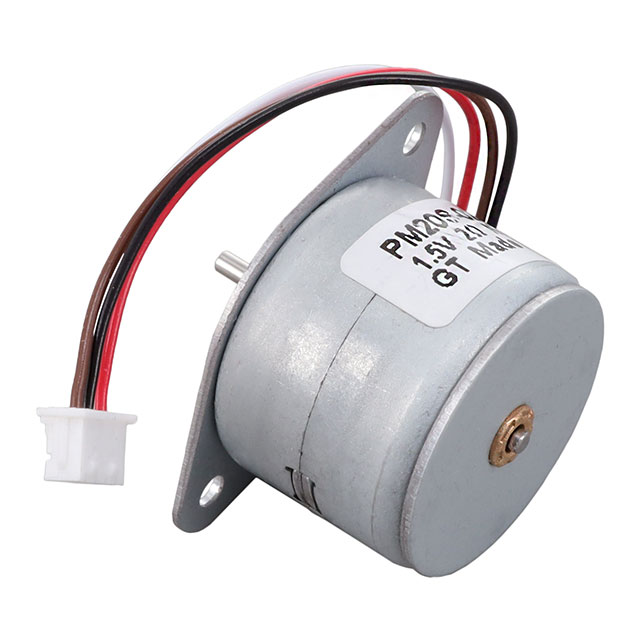

Analog Devices Inc./Maxim Integrated PM20S-020-124
Image shown is a representation only
Manufacturer
Manufacturer No
PM20S-020-124
Packaging
Bulk
Description
STEPPER MOTORS PERMANENT MAGNET
Detailed Description
Bipolar Stepper Motor Permanent Magnet Frame Size 8 200.0 Step 750 mA 1.5VDC
DataSheet
Mfr
Analog Devices Inc./Maxim Integrated
Type
Permanent Magnet
Coil Type
Bipolar
Packaging
Bulk
Step Angle
18°
Part Status
Obsolete
Coil Resistance
2 Ohms
NEMA Frame Size
8
Voltage - Rated
1.5VDC
Diameter - Shaft
0.059" (1.50mm)
Size / Dimension
Round - 0.787" Dia (20.00mm)
Termination Style
Wire Leads with Connector
Steps per Revolution
200.0
Current Rating (Amps)
750 mA
Mounting Hole Spacing
0.984" (25.00mm)
Operating Temperature
60°C
Length - Shaft and Bearing
0.256" (6.50mm)
Torque - Holding (oz-in / mNm)
1.104 / 7.8
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc./Maxim Integrated |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Packaging | Bulk |
| Step Angle | 18° |
| Part Status | Obsolete |
| Coil Resistance | 2 Ohms |
| NEMA Frame Size | 8 |
| Voltage - Rated | 1.5VDC |
| Diameter - Shaft | 0.059" (1.50mm) |
| Size / Dimension | Round - 0.787" Dia (20.00mm) |
| Termination Style | Wire Leads with Connector |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 750 mA |
| Mounting Hole Spacing | 0.984" (25.00mm) |
| Operating Temperature | 60°C |
| Length - Shaft and Bearing | 0.256" (6.50mm) |
| Torque - Holding (oz-in / mNm) | 1.104 / 7.8 |
