Step1: Product
Analog Devices Inc./Maxim Integrated PM25S-048-314

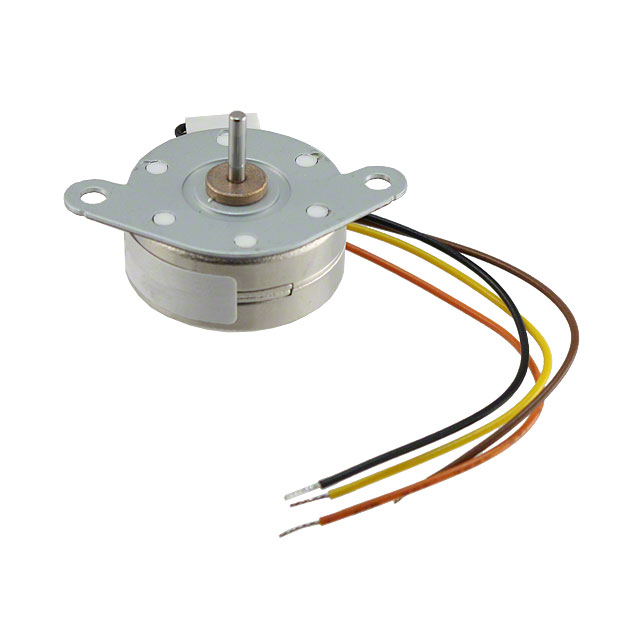

Image shown is a representation only
Manufacturer
Manufacturer No
PM25S-048-314
Packaging
Bulk
Description
STEPPER MOTORS PERMANENT MAGNET
Detailed Description
Bipolar Stepper Motor Permanent Magnet Frame Size 48.0 Step 1 A 2VDC
Datasheet
Mfr
Analog Devices Inc./Maxim Integrated
Type
Permanent Magnet
Coil Type
Bipolar
Packaging
Bulk
Step Angle
7.5°
Coil Resistance
2 Ohms
Voltage - Rated
2VDC
Diameter - Shaft
0.079" (2.00mm)
Size / Dimension
Round - 0.984" Dia (25.00mm)
Termination Style
Wire Leads with Connector
Steps per Revolution
48.0
Current Rating (Amps)
1 A
Mounting Hole Spacing
1.260" (32.00mm)
Operating Temperature
65°C
Length - Shaft and Bearing
0.551" (14.00mm)
Torque - Holding (oz-in / mNm)
1.104 / 7.8
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc./Maxim Integrated |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Packaging | Bulk |
| Step Angle | 7.5° |
| Coil Resistance | 2 Ohms |
| Voltage - Rated | 2VDC |
| Diameter - Shaft | 0.079" (2.00mm) |
| Size / Dimension | Round - 0.984" Dia (25.00mm) |
| Termination Style | Wire Leads with Connector |
| Steps per Revolution | 48.0 |
| Current Rating (Amps) | 1 A |
| Mounting Hole Spacing | 1.260" (32.00mm) |
| Operating Temperature | 65°C |
| Length - Shaft and Bearing | 0.551" (14.00mm) |
| Torque - Holding (oz-in / mNm) | 1.104 / 7.8 |
