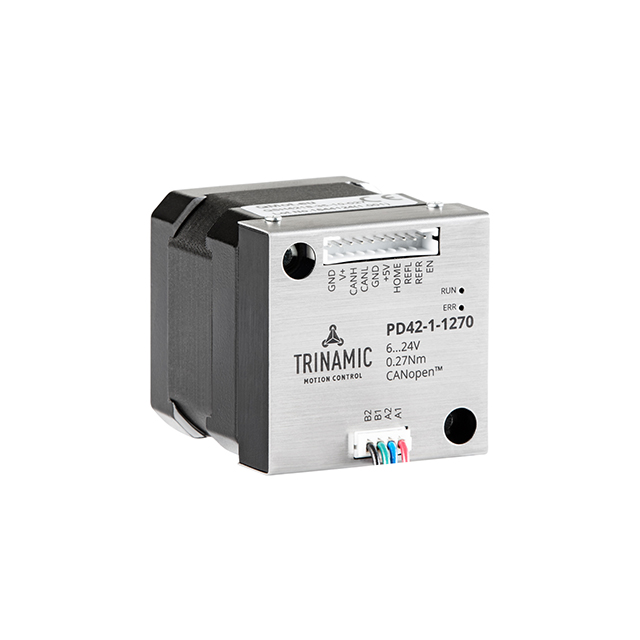

Analog Devices Inc./Maxim Integrated PD42-1-1270-CANOPEN
Image shown is a representation only
Manufacturer
Manufacturer No
PD42-1-1270-CANOPEN
Packaging
Bulk
Description
PANDRIVE NEMA17, 24V, 38 OZ IN/
Detailed Description
Bipolar Stepper Motor Hybrid Frame Size 17 200.0 Step 1 A 24VDC
DataSheet
Mfr
Analog Devices Inc./Maxim Integrated
Type
Hybrid
Series
PANdrive™
Weight
0.485 lb (219.99 g)
Accuracy
±5%
Features
Integrated Controller, Round Shaft
Coil Type
Bipolar
Packaging
Bulk
Step Angle
1.8°
Part Status
Active
Rotor Inertia
35gcm²
Coil Resistance
1 Ohms
NEMA Frame Size
17
Voltage - Rated
24VDC
Size / Dimension
Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Termination Style
Connector
Base Product Number
PD42
Steps per Revolution
200.0
Current Rating (Amps)
1 A
Mounting Hole Spacing
1.220" (31.00mm)
Operating Temperature
-20°C ~ 50°C
Torque - Holding (oz-in / mNm)
31.2 / 220
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc./Maxim Integrated |
| Type | Hybrid |
| Series | PANdrive™ |
| Weight | 0.485 lb (219.99 g) |
| Accuracy | ±5% |
| Features | Integrated Controller, Round Shaft |
| Coil Type | Bipolar |
| Packaging | Bulk |
| Step Angle | 1.8° |
| Part Status | Active |
| Rotor Inertia | 35gcm² |
| Coil Resistance | 1 Ohms |
| NEMA Frame Size | 17 |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Termination Style | Connector |
| Base Product Number | PD42 |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 1 A |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Operating Temperature | -20°C ~ 50°C |
| Torque - Holding (oz-in / mNm) | 31.2 / 220 |
