Vishay General Semiconductor - Diodes Division VS-GB600AH120N

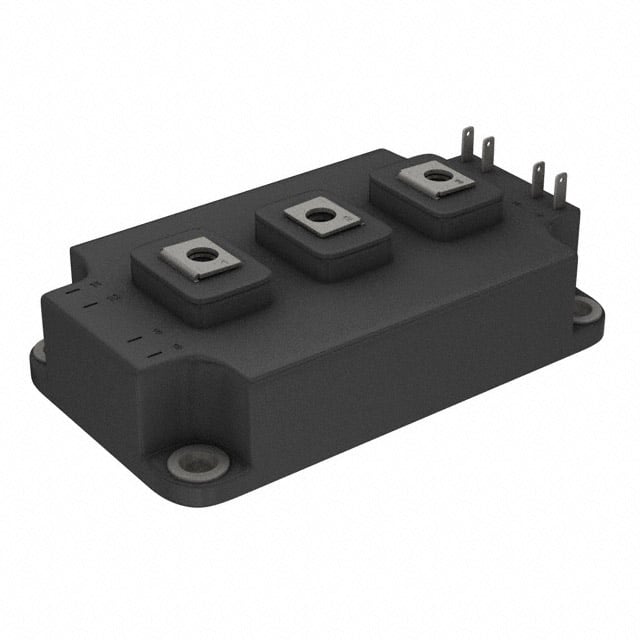

Image shown is a representation only
Manufacturer
Manufacturer No
VS-GB600AH120N
Package
Double INT-A-PAK (5)
Packaging
Bulk
Description
IGBT MODULE 1200V 910A INT-A-PAK
Detailed Description
IGBT Module Single 1200 V 910 A 3125 W Chassis Mount Double INT-A-PAK
DataSheet
Input
Standard
Packaging
Bulk
Part Status
Obsolete
Power - Max
3125 W
Manufacturer
Vishay General Semiconductor - Diodes Division
Configuration
Single
Mounting Type
Chassis Mount
NTC Thermistor
No
Package / Case
Double INT-A-PAK (5)
Base Product Number
GB600
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
Double INT-A-PAK
Vce(on) (Max) @ Vge, Ic
1.9V @ 15V, 600A (Typ)
Current - Collector (Ic) (Max)
910 A
Input Capacitance (Cies) @ Vce
41 nF @ 25 V
Current - Collector Cutoff (Max)
5 mA
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| Input | Standard |
| Packaging | Bulk |
| Part Status | Obsolete |
| Power - Max | 3125 W |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Configuration | Single |
| Mounting Type | Chassis Mount |
| NTC Thermistor | No |
| Package / Case | Double INT-A-PAK (5) |
| Base Product Number | GB600 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | Double INT-A-PAK |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 600A (Typ) |
| Current - Collector (Ic) (Max) | 910 A |
| Input Capacitance (Cies) @ Vce | 41 nF @ 25 V |
| Current - Collector Cutoff (Max) | 5 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
