Vishay General Semiconductor - Diodes Division VS-GP300TD60S

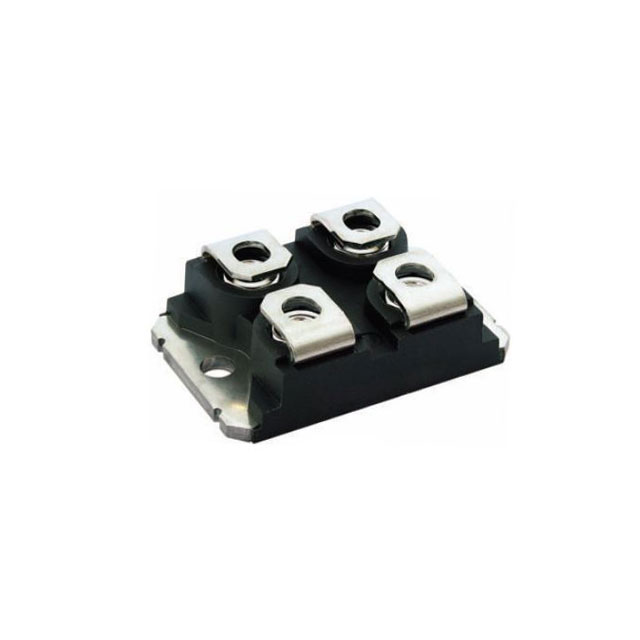

Image shown is a representation only
Manufacturer
Manufacturer No
VS-GP300TD60S
Package
Dual INT-A-PAK (3 + 8)
Packaging
Tube
Description
IGBT MODULE 600V 580A INT-A-PAK
Detailed Description
IGBT Module PT, Trench Half Bridge 600 V 580 A 1136 W Chassis Mount Dual INT-A-PAK
DataSheet
Input
Standard
IGBT Type
PT, Trench
Packaging
Tube
Part Status
Obsolete
Power - Max
1136 W
Manufacturer
Vishay General Semiconductor - Diodes Division
Configuration
Half Bridge
Mounting Type
Chassis Mount
NTC Thermistor
No
Package / Case
Dual INT-A-PAK (3 + 8)
Base Product Number
GP300
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
Dual INT-A-PAK
Vce(on) (Max) @ Vge, Ic
1.45V @ 15V, 300A
Current - Collector (Ic) (Max)
580 A
Current - Collector Cutoff (Max)
150 µA
Voltage - Collector Emitter Breakdown (Max)
600 V
| Attribute | Value |
|---|---|
| Input | Standard |
| IGBT Type | PT, Trench |
| Packaging | Tube |
| Part Status | Obsolete |
| Power - Max | 1136 W |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Configuration | Half Bridge |
| Mounting Type | Chassis Mount |
| NTC Thermistor | No |
| Package / Case | Dual INT-A-PAK (3 + 8) |
| Base Product Number | GP300 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | Dual INT-A-PAK |
| Vce(on) (Max) @ Vge, Ic | 1.45V @ 15V, 300A |
| Current - Collector (Ic) (Max) | 580 A |
| Current - Collector Cutoff (Max) | 150 µA |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
