Step1: Product
Toshiba Semiconductor and Storage SSM6J422TU,LF

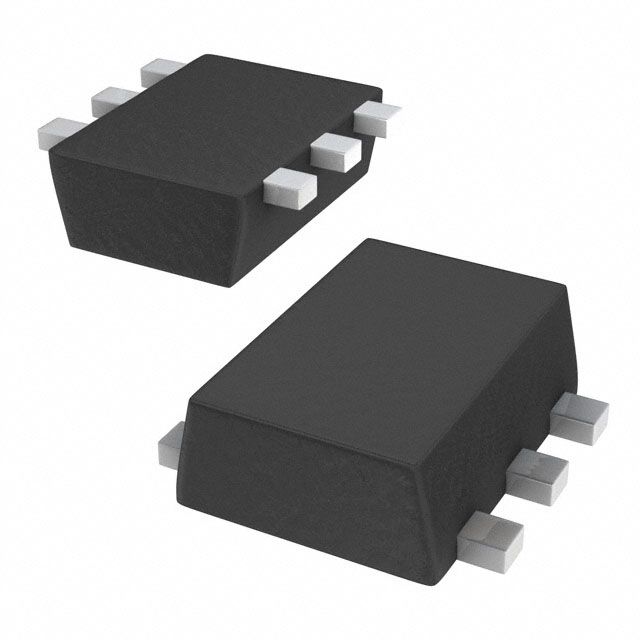

Image shown is a representation only
Manufacturer
Manufacturer No
SSM6J422TU,LF
Quantity
1,900
Availability
In Stock
Package
6-SMD, Flat Leads
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET P-CH 20V 4A UF6
Detailed Description
P-Channel 20 V 4A (Ta) 1W (Ta) Surface Mount UF6
Datasheet
Mfr
Toshiba Semiconductor and Storage
Series
U-MOSVI
FET Type
P-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT)
Vgs (Max)
+6V, -8V
Technology
MOSFET (Metal Oxide)
Mounting Type
Surface Mount
Package / Case
6-SMD, Flat Leads
Vgs(th) (Max) @ Id
1V @ 1mA
Base Product Number
SSM6J422
Operating Temperature
150°C
Rds On (Max) @ Id, Vgs
42.7mOhm @ 3A, 4.5V
Power Dissipation (Max)
1W (Ta)
Supplier Device Package
UF6
Gate Charge (Qg) (Max) @ Vgs
12.8 nC @ 4.5 V
Drain to Source Voltage (Vdss)
20 V
Input Capacitance (Ciss) (Max) @ Vds
840 pF @ 10 V
Drive Voltage (Max Rds On, Min Rds On)
1.5V, 4.5V
Current - Continuous Drain (Id) @ 25°C
4A (Ta)
| Attribute | Value |
|---|---|
| Mfr | Toshiba Semiconductor and Storage |
| Series | U-MOSVI |
| FET Type | P-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Vgs (Max) | +6V, -8V |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Flat Leads |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Base Product Number | SSM6J422 |
| Operating Temperature | 150°C |
| Rds On (Max) @ Id, Vgs | 42.7mOhm @ 3A, 4.5V |
| Power Dissipation (Max) | 1W (Ta) |
| Supplier Device Package | UF6 |
| Gate Charge (Qg) (Max) @ Vgs | 12.8 nC @ 4.5 V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 840 pF @ 10 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
