Step1: Product

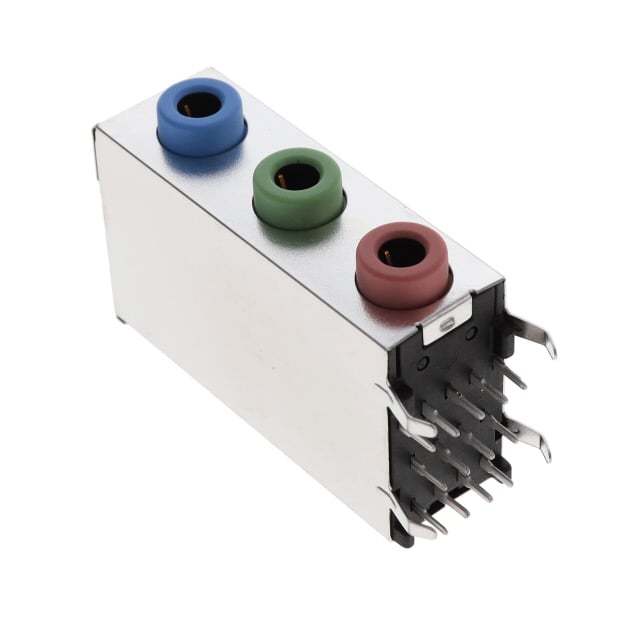

Kycon, Inc. STX-4335-5BGP-S1
Image shown is a representation only
Manufacturer
Manufacturer No
STX-4335-5BGP-S1
Packaging
Tray
Description
STEREO JACK 3.5MM, TRIPLE STACKE
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack, Triple Stereo (3 Conductor, TRS) Connector Solder
DataSheet
Mfr
Kycon, Inc.
Gender
Female
Series
STX-4335
Features
Board Lock
Packaging
Tray
Shielding
Shielded
Body Color
Silver
Part Status
Active
Termination
Solder
Signal Lines
Stereo (3 Conductor, TRS)
Mounting Type
Through Hole, Right Angle
Connector Type
Phone Jack, Triple
Actual Diameter
0.142" (3.60mm)
Voltage - Rated
12VDC
Contact Material
Copper Alloy, Steel
Housing Material
Polybutylene Terephthalate (PBT), Glass Filled
Insulation Color
Blue, Lime, Pink
Internal Switch(s)
Six Switches
Base Product Number
STX
Current Rating (Amps)
1 A
Operating Temperature
-25°C ~ 100°C
Contact Material - Plating
Gold, Tin
Number of Positions/Contacts
3 Sets of 3 Conductors, 15 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Kycon, Inc. |
| Gender | Female |
| Series | STX-4335 |
| Features | Board Lock |
| Packaging | Tray |
| Shielding | Shielded |
| Body Color | Silver |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phone Jack, Triple |
| Actual Diameter | 0.142" (3.60mm) |
| Voltage - Rated | 12VDC |
| Contact Material | Copper Alloy, Steel |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Color | Blue, Lime, Pink |
| Internal Switch(s) | Six Switches |
| Base Product Number | STX |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -25°C ~ 100°C |
| Contact Material - Plating | Gold, Tin |
| Number of Positions/Contacts | 3 Sets of 3 Conductors, 15 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
