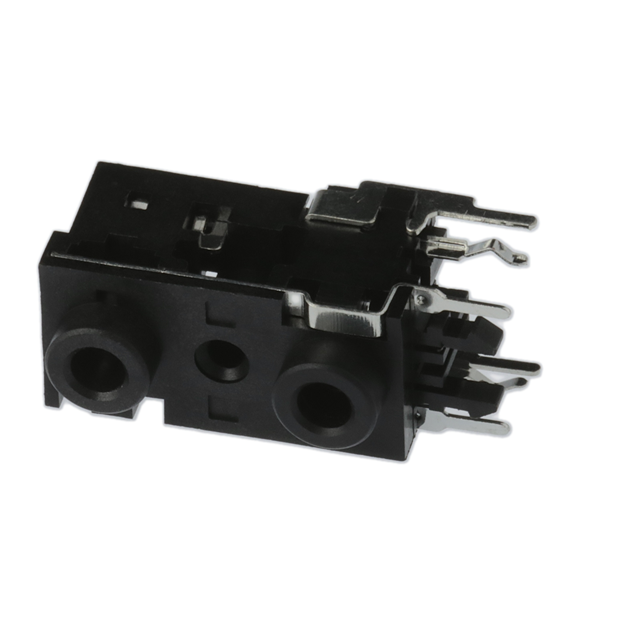

Kycon, Inc. STX-4235-3/3-N
Image shown is a representation only
Manufacturer
Manufacturer No
STX-4235-3/3-N
Packaging
Tray
Description
CONN JACK STEREO 3.5MM VERT
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
DataSheet
Mfr
Kycon, Inc.
Gender
Female
Series
STX-4235
Features
Board Lock
Packaging
Tray
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Solder
Signal Lines
Stereo (3 Conductor, TRS)
Mounting Type
Through Hole, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Voltage - Rated
16VDC
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA46), Nylon 4/6, Glass Filled
Internal Switch(s)
Does Not Contain Switch
Base Product Number
STX
Current Rating (Amps)
300 mA
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Tin
Number of Positions/Contacts
2 Sets of 3 Conductors, 6 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Kycon, Inc. |
| Gender | Female |
| Series | STX-4235 |
| Features | Board Lock |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Voltage - Rated | 16VDC |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | STX |
| Current Rating (Amps) | 300 mA |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 2 Sets of 3 Conductors, 6 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
