Step1: Product

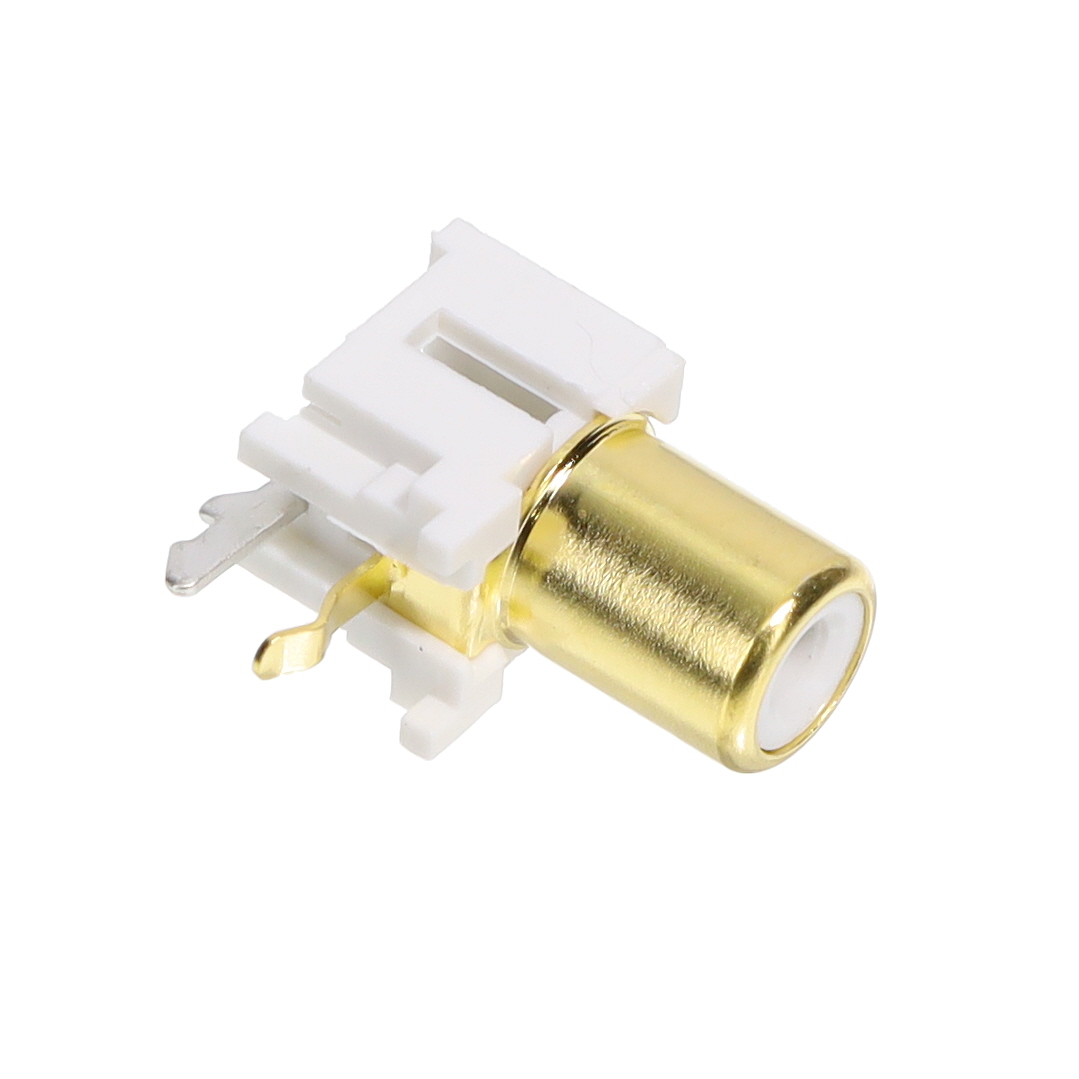

Kycon, Inc. KLPX-0848A-2-W-G
Image shown is a representation only
Manufacturer
Manufacturer No
KLPX-0848A-2-W-G
Packaging
Bulk
Description
CONN RCA PHONO JACK R/A
Detailed Description
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Kinked Pin
DataSheet
Mfr
Kycon, Inc.
Gender
Female
Series
KLPX
Features
Board Lock
Packaging
Bulk
Shielding
Unshielded
Body Color
Silver, White
Part Status
Active
Termination
Kinked Pin
Signal Lines
Mono
Mounting Type
Through Hole, Right Angle
Connector Type
Phono (RCA) Jack
Contact Material
Brass
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
White
Internal Switch(s)
Does Not Contain Switch
Operating Temperature
-25°C ~ 80°C
Contact Material - Plating
Tin
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
3.20mm ID, 9.00mm OD (RCA)
| Attribute | Value |
|---|---|
| Mfr | Kycon, Inc. |
| Gender | Female |
| Series | KLPX |
| Features | Board Lock |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Silver, White |
| Part Status | Active |
| Termination | Kinked Pin |
| Signal Lines | Mono |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phono (RCA) Jack |
| Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | White |
| Internal Switch(s) | Does Not Contain Switch |
| Operating Temperature | -25°C ~ 80°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
