Step1: Product
Kycon, Inc. KLPX-0848A-2-O

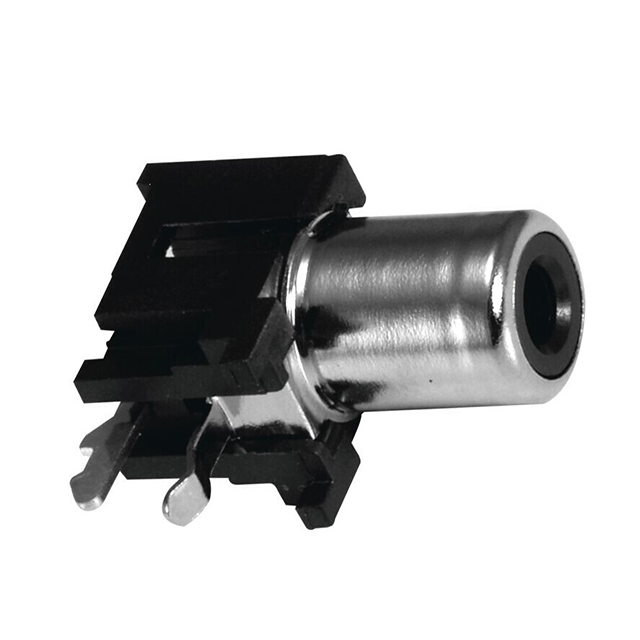

Image shown is a representation only
Manufacturer
Manufacturer No
KLPX-0848A-2-O
Packaging
Bag
Description
RCA PHONO JACK, RT< ORNG PC99 RO
Detailed Description
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Kinked Pin
DataSheet
Mfr
Kycon, Inc.
Gender
Female
Series
KLPX
Features
Board Lock
Packaging
Bag
Shielding
Unshielded
Body Color
Silver, Black
Part Status
Active
Termination
Kinked Pin
Signal Lines
Mono
Body Material
Brass
Mounting Type
Through Hole, Right Angle
Connector Type
Phono (RCA) Jack
Actual Diameter
0.130" (3.30mm ID), 0.327" (8.30mm OD)
Contact Material
Brass
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
Orange
Internal Switch(s)
Does Not Contain Switch
Base Product Number
KLPX-0848
Operating Temperature
-25°C ~ 80°C
Contact Material - Plating
Nickel, Tin
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
3.20mm ID, 9.00mm OD (RCA)
| Attribute | Value |
|---|---|
| Mfr | Kycon, Inc. |
| Gender | Female |
| Series | KLPX |
| Features | Board Lock |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Part Status | Active |
| Termination | Kinked Pin |
| Signal Lines | Mono |
| Body Material | Brass |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phono (RCA) Jack |
| Actual Diameter | 0.130" (3.30mm ID), 0.327" (8.30mm OD) |
| Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | Orange |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | KLPX-0848 |
| Operating Temperature | -25°C ~ 80°C |
| Contact Material - Plating | Nickel, Tin |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
