Step1: Product

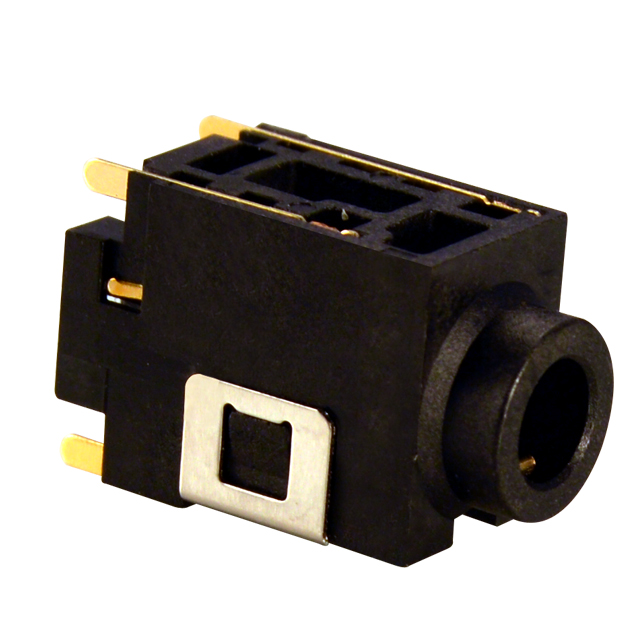

Kycon, Inc. STX-353K7A-6N-KTTR
Image shown is a representation only
Manufacturer
Manufacturer No
STX-353K7A-6N-KTTR
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
STEREO JACK 3.5MM 4 POLE 4P VERT
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack 5 Conductor (TRRRS) Connector Solder
DataSheet
Mfr
Kycon, Inc.
Gender
Female
Series
STX-353
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Solder
Signal Lines
5 Conductor (TRRRS)
Mounting Type
Through Hole
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Contact Material
Copper Alloy, Stainless Steel
Housing Material
Thermoplastic
Insulation Color
Black
Internal Switch(s)
Single Switch
Operating Temperature
-40°C ~ 85°C
Contact Material - Plating
Gold
Number of Positions/Contacts
5 Conductors, 6 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Kycon, Inc. |
| Gender | Female |
| Series | STX-353 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | 5 Conductor (TRRRS) |
| Mounting Type | Through Hole |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Contact Material | Copper Alloy, Stainless Steel |
| Housing Material | Thermoplastic |
| Insulation Color | Black |
| Internal Switch(s) | Single Switch |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material - Plating | Gold |
| Number of Positions/Contacts | 5 Conductors, 6 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
