Step1: Product

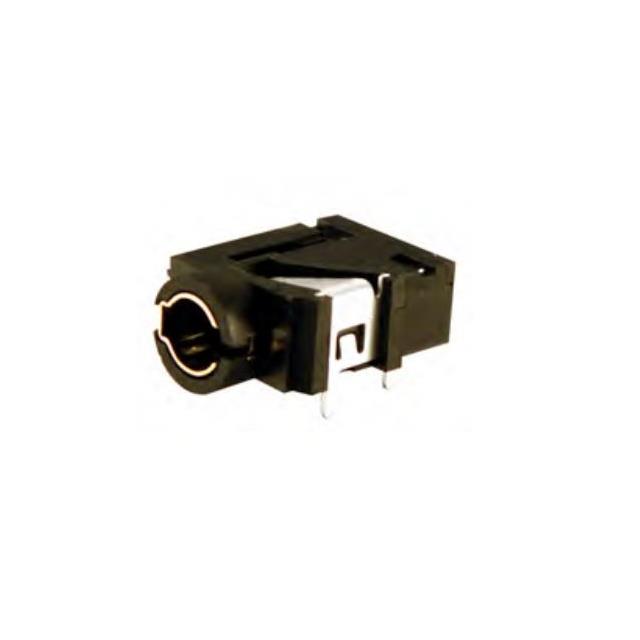

Kycon, Inc. STX-35061-4T
Image shown is a representation only
Manufacturer
Manufacturer No
STX-35061-4T
Packaging
Tray
Description
STEREO JACK 3.5MM 4 POLE 4P W/SW
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
DataSheet
Mfr
Kycon, Inc.
Gender
Female
Series
STX-35061
Packaging
Tray
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Solder
Signal Lines
Stereo (4 Conductor, TRRS)
Mounting Type
Through Hole, Right Angle
Connector Type
Phone Jack
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
0.551" (14.00mm)
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Gold, Tin
Number of Positions/Contacts
4 Conductors, 4 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Kycon, Inc. |
| Gender | Female |
| Series | STX-35061 |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.551" (14.00mm) |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Gold, Tin |
| Number of Positions/Contacts | 4 Conductors, 4 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
