Step1: Product

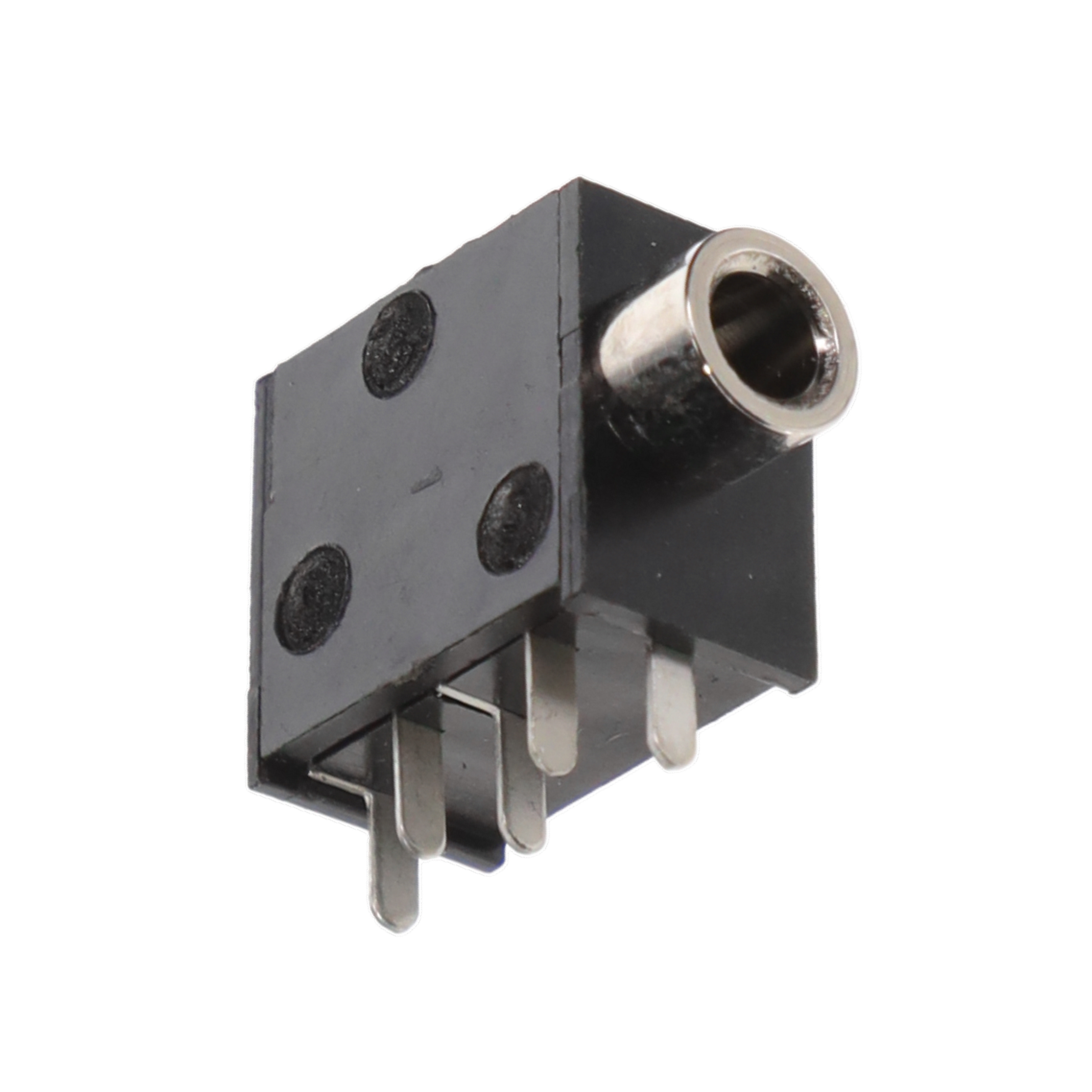

Kycon, Inc. STX-3150-5N-1
Image shown is a representation only
Manufacturer
Manufacturer No
STX-3150-5N-1
Packaging
Tray
Description
STEREO JACK THROUGH HOLE
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
DataSheet
Mfr
Kycon, Inc.
Gender
Female
Series
STX-3150
Features
Thread Lock
Packaging
Tray
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Solder
Thread Size
M6x0.5
Signal Lines
Stereo (3 Conductor, TRS)
Mounting Type
Through Hole, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Contact Material
Brass, Phosphor Bronze
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Tin
Number of Positions/Contacts
3 Conductors, 3 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Kycon, Inc. |
| Gender | Female |
| Series | STX-3150 |
| Features | Thread Lock |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder |
| Thread Size | M6x0.5 |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Contact Material | Brass, Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
