Step1: Product

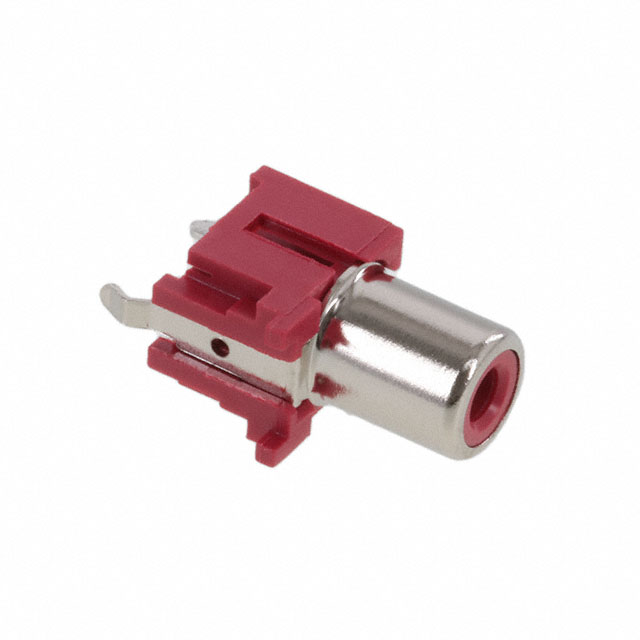

Kycon, Inc. KLPX-0848-2-R
Image shown is a representation only
Manufacturer
Manufacturer No
KLPX-0848-2-R
Packaging
Bag
Description
RCA PHONO JACK, VERTICAL, RED RO
Detailed Description
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Kinked Pin
Datasheet
Mfr
Kycon, Inc.
Gender
Female
Series
KLPX
Features
Board Lock
Packaging
Bag
Shielding
Unshielded
Body Color
Silver, Black
Termination
Kinked Pin
Signal Lines
Mono
Body Material
Copper Alloy
Mounting Type
Through Hole
Connector Type
Phono (RCA) Jack
Actual Diameter
0.130" (3.30mm ID), 0.327" (8.30mm OD)
Voltage - Rated
16VDC
Contact Material
Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT), Glass Filled
Insulation Color
Red
Internal Switch(s)
Does Not Contain Switch
Base Product Number
KLPX-0848
Current Rating (Amps)
300 mA
Operating Temperature
-20°C ~ 60°C
Contact Material - Plating
Tin
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
3.20mm ID, 9.00mm OD (RCA)
| Attribute | Value |
|---|---|
| Mfr | Kycon, Inc. |
| Gender | Female |
| Series | KLPX |
| Features | Board Lock |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Termination | Kinked Pin |
| Signal Lines | Mono |
| Body Material | Copper Alloy |
| Mounting Type | Through Hole |
| Connector Type | Phono (RCA) Jack |
| Actual Diameter | 0.130" (3.30mm ID), 0.327" (8.30mm OD) |
| Voltage - Rated | 16VDC |
| Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Color | Red |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | KLPX-0848 |
| Current Rating (Amps) | 300 mA |
| Operating Temperature | -20°C ~ 60°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
