Step1: Product

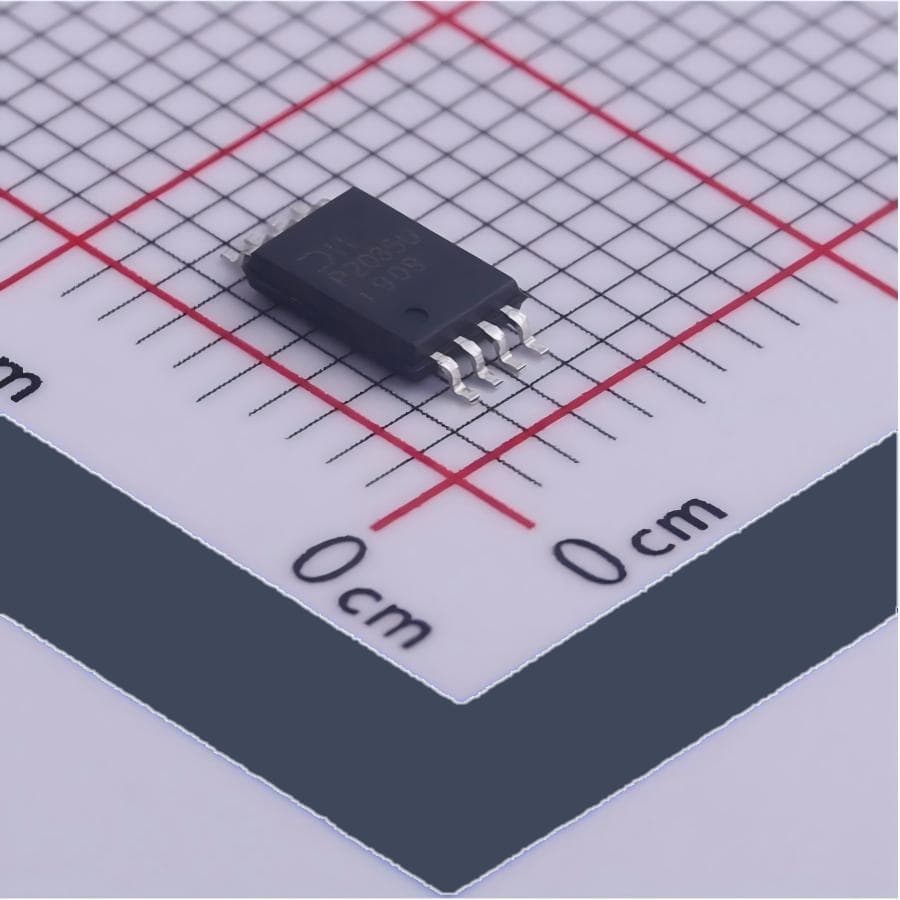

Diodes Incorporated DMP2035UTS-13

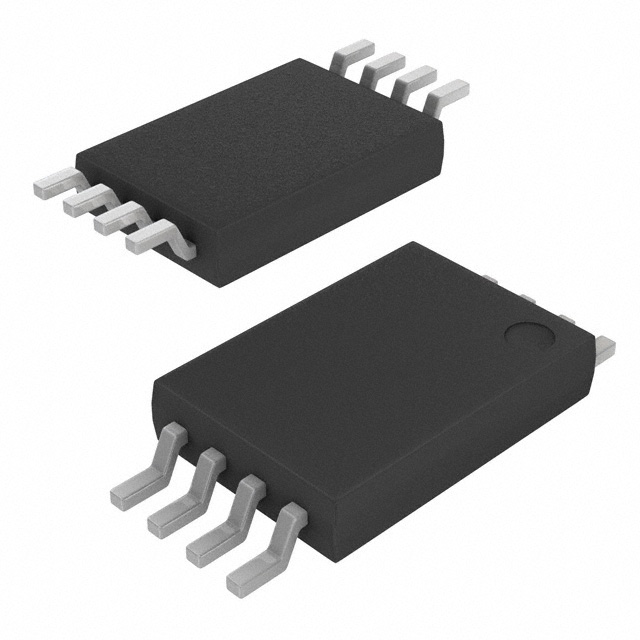

Image shown is a representation only
Manufacturer
Manufacturer No
DMP2035UTS-13
Quantity
1614
Availability
In Stock
Package
8-TSSOP (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2P-CH 20V 6.04A 8TSSOP
Detailed Description
Mosfet Array 20V 6.04A 890mW Surface Mount 8-TSSOP
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
FET Feature
Logic Level Gate
Part Status
Active
Power - Max
890mW
Manufacturer
Diodes Incorporated
Configuration
2 P-Channel (Dual) Common Drain
Mounting Type
Surface Mount
Package / Case
8-TSSOP (0.173", 4.40mm Width)
Vgs(th) (Max) @ Id
1V @ 250µA
Base Product Number
DMP2035
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
35mOhm @ 4A, 4.5V
Supplier Device Package
8-TSSOP
Gate Charge (Qg) (Max) @ Vgs
15.4nC @ 4.5V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
1610pF @ 10V
Current - Continuous Drain (Id) @ 25°C
6.04A
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate |
| Part Status | Active |
| Power - Max | 890mW |
| Manufacturer | Diodes Incorporated |
| Configuration | 2 P-Channel (Dual) Common Drain |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Base Product Number | DMP2035 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 4A, 4.5V |
| Supplier Device Package | 8-TSSOP |
| Gate Charge (Qg) (Max) @ Vgs | 15.4nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1610pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 6.04A |
