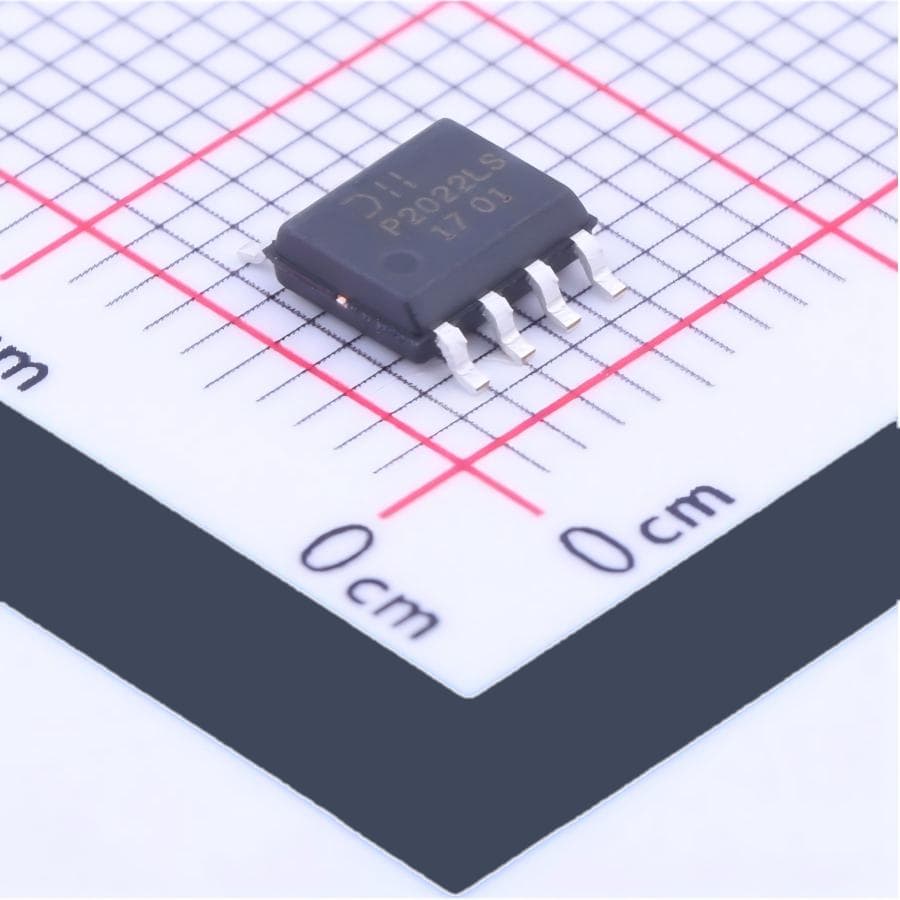

Diodes Incorporated DMP2022LSS-13
Image shown is a representation only
Manufacturer
Manufacturer No
DMP2022LSS-13
Quantity
3956
Availability
In Stock
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET P-CH 20V 10A 8SOP
Detailed Description
P-Channel 20 V 10A (Ta) 2.5W (Ta) Surface Mount 8-SO
DataSheet
Mfr
Diodes Incorporated
FET Type
P-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
±12V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Vgs(th) (Max) @ Id
1.1V @ 250µA
Base Product Number
DMP2022
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
13mOhm @ 10A, 10V
Power Dissipation (Max)
2.5W (Ta)
Supplier Device Package
8-SO
Gate Charge (Qg) (Max) @ Vgs
56.9 nC @ 10 V
Drain to Source Voltage (Vdss)
20 V
Input Capacitance (Ciss) (Max) @ Vds
2444 pF @ 10 V
Drive Voltage (Max Rds On, Min Rds On)
2.5V, 10V
Current - Continuous Drain (Id) @ 25°C
10A (Ta)
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| FET Type | P-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | ±12V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Base Product Number | DMP2022 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 10A, 10V |
| Power Dissipation (Max) | 2.5W (Ta) |
| Supplier Device Package | 8-SO |
| Gate Charge (Qg) (Max) @ Vgs | 56.9 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2444 pF @ 10 V |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) |
