Step1: Product
Diodes Incorporated DMN2991UDA-7B

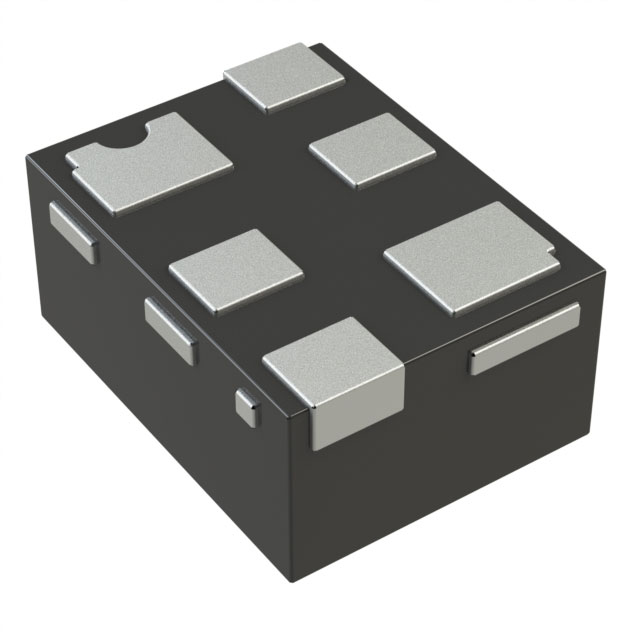

Image shown is a representation only
Manufacturer
Manufacturer No
DMN2991UDA-7B
Quantity
12260
Availability
In Stock
Package
6-SMD, No Lead
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2N-CH 20V 0.45A 6DFN
Detailed Description
Mosfet Array 20V 450mA (Ta) 310mW (Ta) Surface Mount X2-DFN0806-6
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
Part Status
Active
Power - Max
310mW (Ta)
Manufacturer
Diodes Incorporated
Configuration
2 N-Channel (Dual)
Mounting Type
Surface Mount
Package / Case
6-SMD, No Lead
Vgs(th) (Max) @ Id
1V @ 250µA
Base Product Number
DMN2991
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
990mOhm @ 100mA, 4.5V
Supplier Device Package
X2-DFN0806-6
Gate Charge (Qg) (Max) @ Vgs
0.35nC @ 4.5V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
21.5pF @ 16V
Current - Continuous Drain (Id) @ 25°C
450mA (Ta)
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Power - Max | 310mW (Ta) |
| Manufacturer | Diodes Incorporated |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Base Product Number | DMN2991 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 990mOhm @ 100mA, 4.5V |
| Supplier Device Package | X2-DFN0806-6 |
| Gate Charge (Qg) (Max) @ Vgs | 0.35nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 21.5pF @ 16V |
| Current - Continuous Drain (Id) @ 25°C | 450mA (Ta) |
