Step1: Product

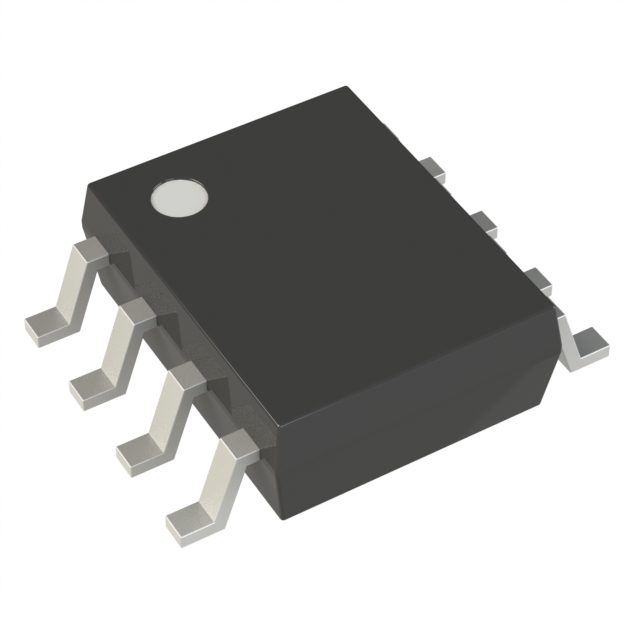

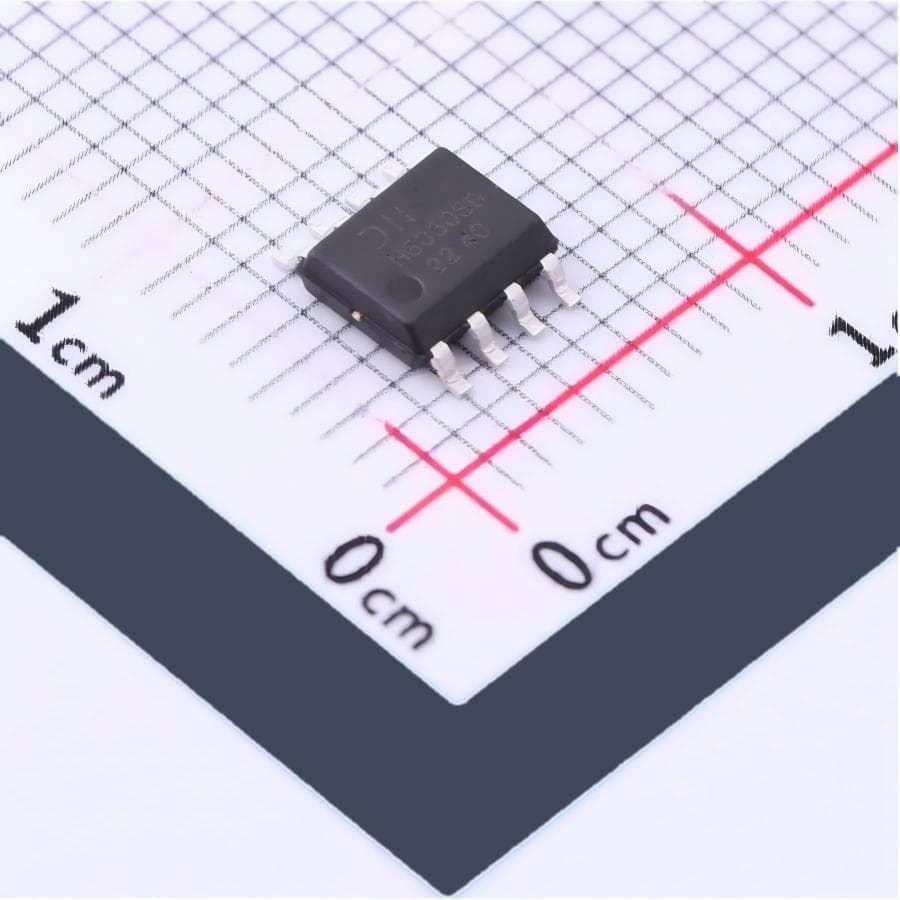

Diodes Incorporated DMPH6050SSDQ-13
Image shown is a representation only
Manufacturer
Manufacturer No
DMPH6050SSDQ-13
Quantity
17164
Availability
In Stock
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2P-CH 60V 5.2A 8SOIC
Detailed Description
Mosfet Array 60V 5.2A (Ta) 2W (Ta) Surface Mount 8-SOIC
DataSheet
Grade
Automotive
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
Part Status
Active
Power - Max
2W (Ta)
Manufacturer
Diodes Incorporated
Configuration
2 P-Channel (Dual)
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
8-SOIC (0.154", 3.90mm Width)
Vgs(th) (Max) @ Id
3V @ 250µA
Base Product Number
DMPH6050
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
48mOhm @ 5A, 10V
Supplier Device Package
8-SOIC
Gate Charge (Qg) (Max) @ Vgs
14.5nC @ 4.5V
Drain to Source Voltage (Vdss)
60V
Input Capacitance (Ciss) (Max) @ Vds
1525pF @ 30V
Current - Continuous Drain (Id) @ 25°C
5.2A (Ta)
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Power - Max | 2W (Ta) |
| Manufacturer | Diodes Incorporated |
| Configuration | 2 P-Channel (Dual) |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Base Product Number | DMPH6050 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 48mOhm @ 5A, 10V |
| Supplier Device Package | 8-SOIC |
| Gate Charge (Qg) (Max) @ Vgs | 14.5nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 60V |
| Input Capacitance (Ciss) (Max) @ Vds | 1525pF @ 30V |
| Current - Continuous Drain (Id) @ 25°C | 5.2A (Ta) |
