Step1: Product

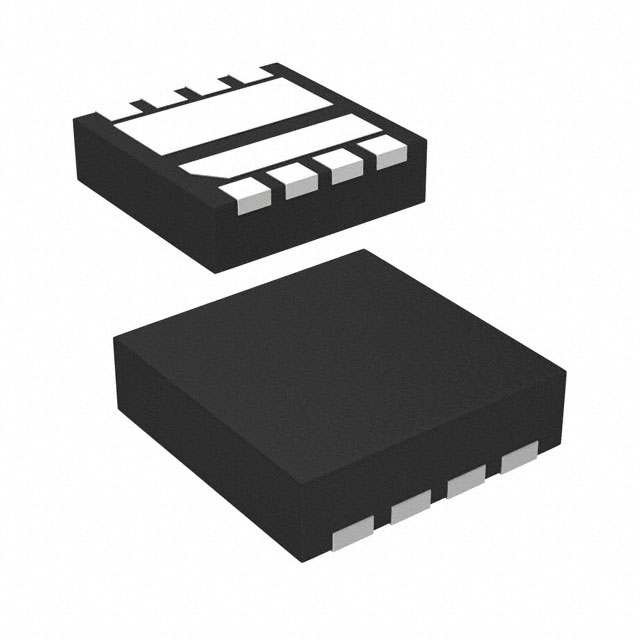

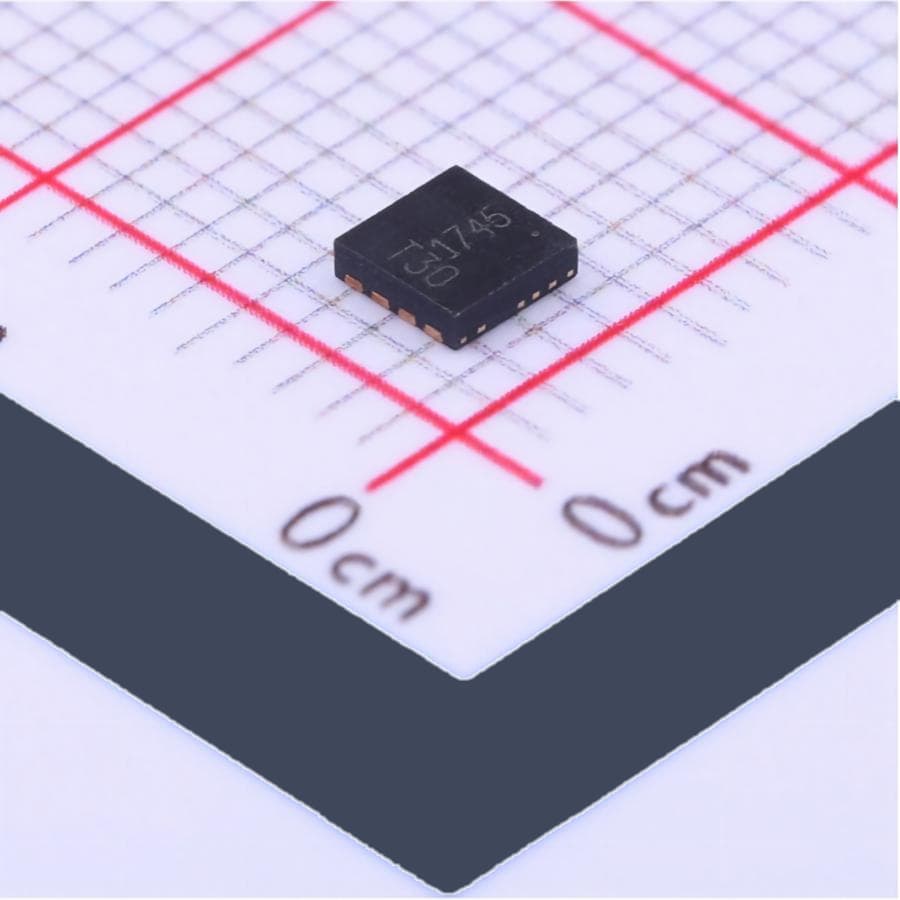

Diodes Incorporated DMT3009LDT-7
Image shown is a representation only
Manufacturer
Manufacturer No
DMT3009LDT-7
Date Code
2315
Quantity
930
Availability
In Stock
Package
8-VDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET 2N-CH 30V 30A 8VDFN
Detailed Description
Mosfet Array 30V 30A 1.2W Surface Mount V-DFN3030-8 (Type K)
Datasheet
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
MOSFET (Metal Oxide)
Power - Max
1.2W
Manufacturer
Diodes Incorporated
Configuration
2 N-Channel (Dual) Asymmetrical
Mounting Type
Surface Mount
Package / Case
8-VDFN Exposed Pad
Vgs(th) (Max) @ Id
3V @ 250µA
Base Product Number
DMT3009
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
11.1mOhm @ 14.4A, 10V
Supplier Device Package
V-DFN3030-8 (Type K)
Gate Charge (Qg) (Max) @ Vgs
20nC @ 15V
Drain to Source Voltage (Vdss)
30V
Input Capacitance (Ciss) (Max) @ Vds
1500pF @ 15V
Current - Continuous Drain (Id) @ 25°C
30A
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.2W |
| Manufacturer | Diodes Incorporated |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Base Product Number | DMT3009 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 11.1mOhm @ 14.4A, 10V |
| Supplier Device Package | V-DFN3030-8 (Type K) |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 15V |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1500pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 30A |
