Step1: Product

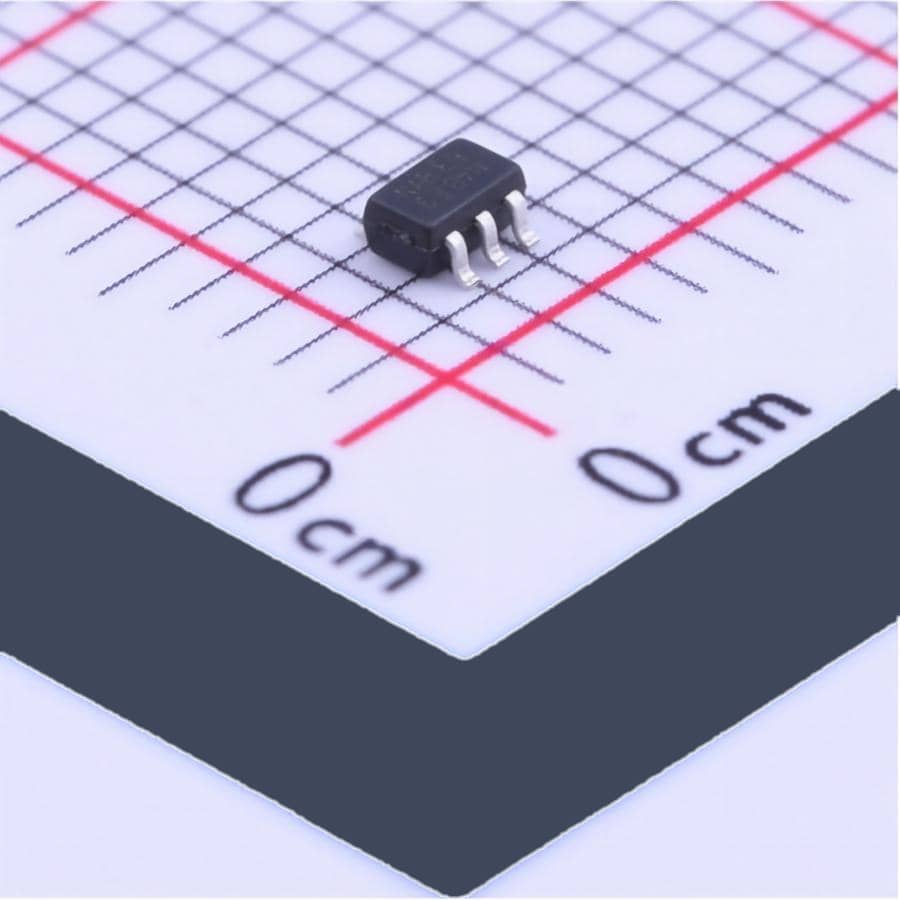

Diodes Incorporated DMN2004DWK-7
Image shown is a representation only
Manufacturer
Manufacturer No
DMN2004DWK-7
Quantity
16865
Availability
In Stock
Package
6-TSSOP, SC-88, SOT-363
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2N-CH 20V 0.54A SOT363
Detailed Description
Mosfet Array 20V 540mA 200mW Surface Mount SOT-363
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
FET Feature
Logic Level Gate
Part Status
Active
Power - Max
200mW
Manufacturer
Diodes Incorporated
Configuration
2 N-Channel (Dual)
Mounting Type
Surface Mount
Package / Case
6-TSSOP, SC-88, SOT-363
Vgs(th) (Max) @ Id
1V @ 250µA
Base Product Number
DMN2004
Operating Temperature
-65°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
550mOhm @ 540mA, 4.5V
Supplier Device Package
SOT-363
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
150pF @ 16V
Current - Continuous Drain (Id) @ 25°C
540mA
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate |
| Part Status | Active |
| Power - Max | 200mW |
| Manufacturer | Diodes Incorporated |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Base Product Number | DMN2004 |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 540mA, 4.5V |
| Supplier Device Package | SOT-363 |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 150pF @ 16V |
| Current - Continuous Drain (Id) @ 25°C | 540mA |
