Diodes Incorporated DMG1016UDWQ-7

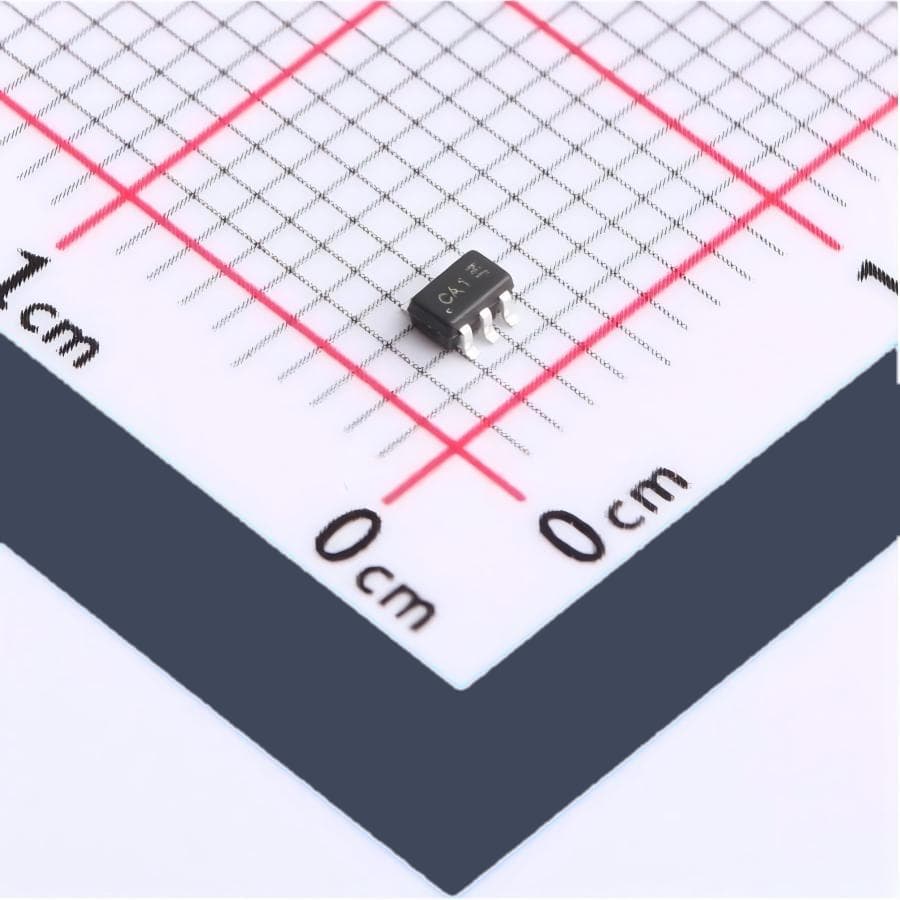

Image shown is a representation only
Manufacturer
Manufacturer No
DMG1016UDWQ-7
Quantity
225
Availability
In Stock
Package
6-TSSOP, SC-88, SOT-363
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET N/P-CH 20V 1.066A SOT363
Detailed Description
Mosfet Array 20V 1.066A (Ta), 845mA (Ta) 330mW (Ta) Surface Mount SOT-363
DataSheet
Grade
Automotive
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
Part Status
Not For New Designs
Power - Max
330mW (Ta)
Manufacturer
Diodes Incorporated
Configuration
N and P-Channel Complementary
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
6-TSSOP, SC-88, SOT-363
Vgs(th) (Max) @ Id
1V @ 250µA
Base Product Number
DMG1016
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
450mOhm @ 600mA, 4.5V, 750mOhm @ 430mA, 4.5V
Supplier Device Package
SOT-363
Gate Charge (Qg) (Max) @ Vgs
736.6nC @ 4.5V, 0.62nC @ 4.5V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
60.67pF @ 10V, 59.76pF @ 16V
Current - Continuous Drain (Id) @ 25°C
1.066A (Ta), 845mA (Ta)
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Not For New Designs |
| Power - Max | 330mW (Ta) |
| Manufacturer | Diodes Incorporated |
| Configuration | N and P-Channel Complementary |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Base Product Number | DMG1016 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 450mOhm @ 600mA, 4.5V, 750mOhm @ 430mA, 4.5V |
| Supplier Device Package | SOT-363 |
| Gate Charge (Qg) (Max) @ Vgs | 736.6nC @ 4.5V, 0.62nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 60.67pF @ 10V, 59.76pF @ 16V |
| Current - Continuous Drain (Id) @ 25°C | 1.066A (Ta), 845mA (Ta) |
