Step1: Product

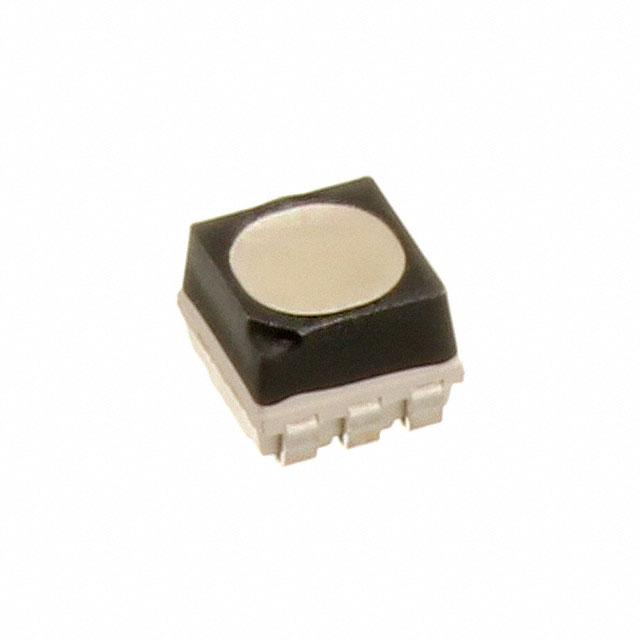

Broadcom Limited ASMB-TTF0-0A20B
Image shown is a representation only
Manufacturer
Manufacturer No
ASMB-TTF0-0A20B
Quantity
2,896
Availability
In Stock
Package
6-PLCC
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED RGB DIFFUSED 6PLCC SMD
Detailed Description
Red, Green, Blue (RGB) 620nm Red, 524nm Green, 471nm Blue LED Indication - Discrete 2.1V Red, 2.9V Green, 2.9V Blue 6-PLCC
Datasheet
Mfr
Broadcom Limited
Color
Red, Green, Blue (RGB)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Style
Round with Flat Top
Height (Max)
3.00mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
110°
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
6-PLCC
Size / Dimension
3.70mm L x 3.50mm W
Lens Transparency
Diffused
Wavelength - Peak
628nm Red, 518nm Green, 467nm Blue
Base Product Number
ASMB-TTF0
Millicandela Rating
710mcd Red, 1840mcd Green, 410mcd Blue
Wavelength - Dominant
620nm Red, 524nm Green, 471nm Blue
Supplier Device Package
6-PLCC
Voltage - Forward (Vf) (Typ)
2.1V Red, 2.9V Green, 2.9V Blue
| Attribute | Value |
|---|---|
| Mfr | Broadcom Limited |
| Color | Red, Green, Blue (RGB) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Style | Round with Flat Top |
| Height (Max) | 3.00mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 110° |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 6-PLCC |
| Size / Dimension | 3.70mm L x 3.50mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 628nm Red, 518nm Green, 467nm Blue |
| Base Product Number | ASMB-TTF0 |
| Millicandela Rating | 710mcd Red, 1840mcd Green, 410mcd Blue |
| Wavelength - Dominant | 620nm Red, 524nm Green, 471nm Blue |
| Supplier Device Package | 6-PLCC |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 2.9V Green, 2.9V Blue |
