Step1: Product

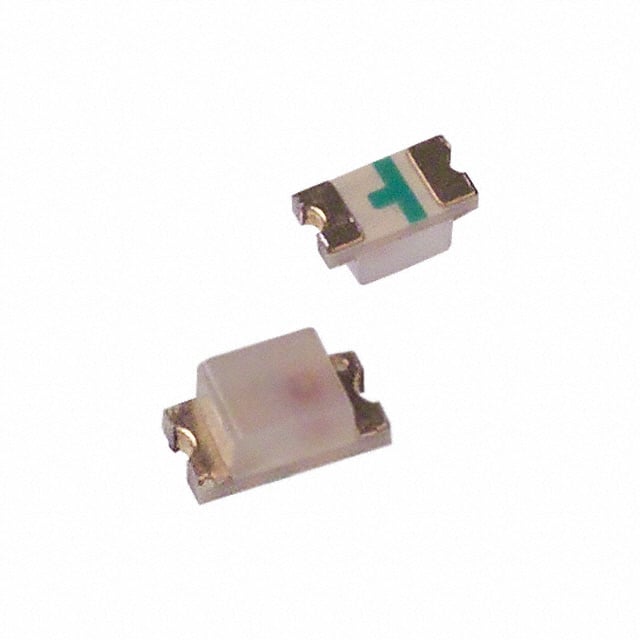

Broadcom Limited HSMD-C190
Image shown is a representation only
Manufacturer
Manufacturer No
HSMD-C190
Quantity
3805
Availability
In Stock
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED ORANGE DIFFUSED CHIP SMD
Detailed Description
Orange 604nm LED Indication - Discrete 2.2V 0603 (1608 Metric)
DataSheet
Mfr
Broadcom Limited
Color
Orange
Lens Size
1.00mm x 1.60mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Color
White
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.80mm
Configuration
Standard
Mounting Type
Surface Mount
Viewing Angle
170°
Current - Test
20mA
Package / Case
0603 (1608 Metric)
Size / Dimension
1.60mm L x 0.80mm W
Lens Transparency
Diffused
Wavelength - Peak
605nm
Base Product Number
HSMD-C190
Millicandela Rating
8mcd
Wavelength - Dominant
604nm
Supplier Device Package
Chip LED
Voltage - Forward (Vf) (Typ)
2.2V
| Attribute | Value |
|---|---|
| Mfr | Broadcom Limited |
| Color | Orange |
| Lens Size | 1.00mm x 1.60mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.80mm |
| Configuration | Standard |
| Mounting Type | Surface Mount |
| Viewing Angle | 170° |
| Current - Test | 20mA |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 605nm |
| Base Product Number | HSMD-C190 |
| Millicandela Rating | 8mcd |
| Wavelength - Dominant | 604nm |
| Supplier Device Package | Chip LED |
| Voltage - Forward (Vf) (Typ) | 2.2V |
