Step1: Product
Broadcom Limited HSMC-C170

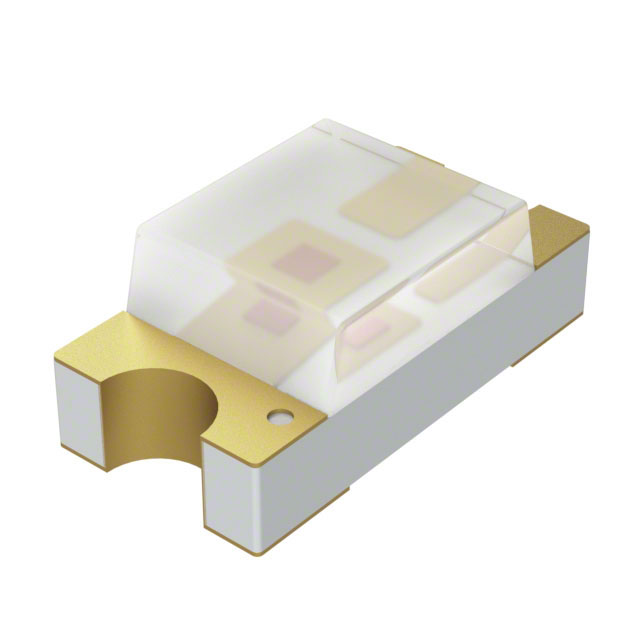

Image shown is a representation only
Manufacturer
Manufacturer No
HSMC-C170
Quantity
3,995
Availability
In Stock
Package
0805 (2012 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED RED DIFFUSED CHIP SMD
Detailed Description
Red 626nm LED Indication - Discrete 1.9V 0805 (2012 Metric)
Datasheet
Mfr
Broadcom Limited
Color
Red
Lens Size
1.40mm x 1.25mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
White
Lens Style
Rectangle with Flat Top
Height (Max)
0.80mm
Configuration
Standard
Mounting Type
Surface Mount
Viewing Angle
170°
Current - Test
20mA
Package / Case
0805 (2012 Metric)
Size / Dimension
2.00mm L x 1.25mm W
Lens Transparency
Diffused
Wavelength - Peak
637nm
Base Product Number
HSMC-C170
Millicandela Rating
90mcd
Wavelength - Dominant
626nm
Supplier Device Package
Chip LED
Voltage - Forward (Vf) (Typ)
1.9V
| Attribute | Value |
|---|---|
| Mfr | Broadcom Limited |
| Color | Red |
| Lens Size | 1.40mm x 1.25mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Height (Max) | 0.80mm |
| Configuration | Standard |
| Mounting Type | Surface Mount |
| Viewing Angle | 170° |
| Current - Test | 20mA |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 637nm |
| Base Product Number | HSMC-C170 |
| Millicandela Rating | 90mcd |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | Chip LED |
| Voltage - Forward (Vf) (Typ) | 1.9V |
