Step1: Product

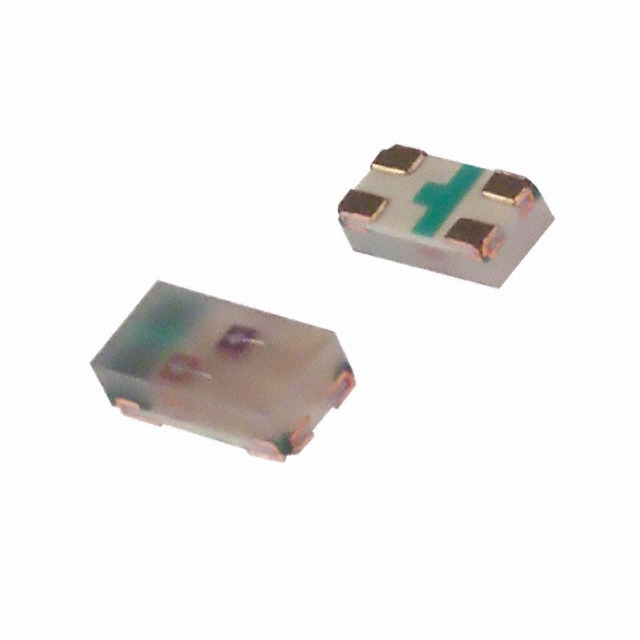

Broadcom Limited HSMF-C165
Image shown is a representation only
Manufacturer
Manufacturer No
HSMF-C165
Quantity
3842
Availability
In Stock
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED GREEN/RED DIFFUSED 0603 SMD
Detailed Description
Green, Red 572nm Green, 621nm Red LED Indication - Discrete 2.2V Green, 1.95V Red 0603 (1608 Metric)
DataSheet
Mfr
Broadcom Limited
Color
Green, Red
Lens Size
1.60mm x 0.80mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Color
White
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.50mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA Green, 20mA Red
Package / Case
0603 (1608 Metric)
Size / Dimension
1.60mm L x 0.80mm W
Lens Transparency
Diffused
Wavelength - Peak
570nm Green, 636nm Red
Base Product Number
HSMF-C165
Millicandela Rating
15mcd Green, 10mcd Red
Wavelength - Dominant
572nm Green, 621nm Red
Supplier Device Package
0603
Voltage - Forward (Vf) (Typ)
2.2V Green, 1.95V Red
| Attribute | Value |
|---|---|
| Mfr | Broadcom Limited |
| Color | Green, Red |
| Lens Size | 1.60mm x 0.80mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.50mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA Green, 20mA Red |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 570nm Green, 636nm Red |
| Base Product Number | HSMF-C165 |
| Millicandela Rating | 15mcd Green, 10mcd Red |
| Wavelength - Dominant | 572nm Green, 621nm Red |
| Supplier Device Package | 0603 |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 1.95V Red |
