Step1: Product

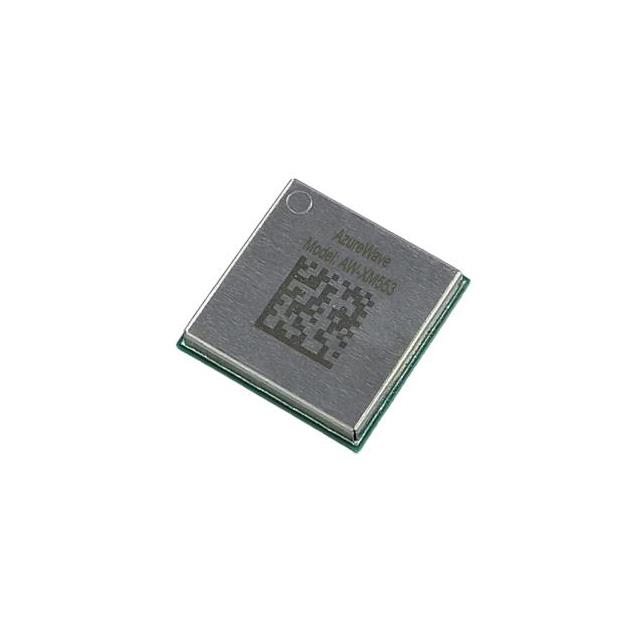

AzureWave Technologies, Inc. AW-XM553
Image shown is a representation only
Manufacturer
Manufacturer No
AW-XM553
Package
LGA Module
Packaging
Tape & Reel (TR)
Description
Wi-Fi 6 1T1R + Bluetooth 5.3 LGA
Detailed Description
Bluetooth, WiFi 802.11a/b/g/n/ac/ax, Bluetooth v5.4 Transceiver Module 2.412GHz ~ 2.483GHz, 5.15GHz ~ 5.725GHz, 5.745GHz ~ 5.825GHz Antenna Not Included Surface Mount
Datasheet
Mfr
AzureWave Technologies, Inc.
Protocol
802.11a/b/g/n/ac/ax, Bluetooth v5.4
Data Rate
54Mbps
Frequency
2.412GHz ~ 2.483GHz, 5.15GHz ~ 5.725GHz, 5.745GHz ~ 5.825GHz
Packaging
Tape & Reel (TR)
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, DBPSK, DQPSK, GFSK, QPSK
Sensitivity
-88dBm
Antenna Type
Antenna Not Included
Mounting Type
Surface Mount
Package / Case
LGA Module
Power - Output
16dBm
Voltage - Supply
3.3V
Serial Interfaces
SDIO, UART
RF Family/Standard
Bluetooth, WiFi
Utilized IC / Part
IW611
Current - Receiving
100mA
Operating Temperature
0°C ~ 70°C
Current - Transmitting
350mA ~ 430mA
| Attribute | Value |
|---|---|
| Mfr | AzureWave Technologies, Inc. |
| Protocol | 802.11a/b/g/n/ac/ax, Bluetooth v5.4 |
| Data Rate | 54Mbps |
| Frequency | 2.412GHz ~ 2.483GHz, 5.15GHz ~ 5.725GHz, 5.745GHz ~ 5.825GHz |
| Packaging | Tape & Reel (TR) |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, DBPSK, DQPSK, GFSK, QPSK |
| Sensitivity | -88dBm |
| Antenna Type | Antenna Not Included |
| Mounting Type | Surface Mount |
| Package / Case | LGA Module |
| Power - Output | 16dBm |
| Voltage - Supply | 3.3V |
| Serial Interfaces | SDIO, UART |
| RF Family/Standard | Bluetooth, WiFi |
| Utilized IC / Part | IW611 |
| Current - Receiving | 100mA |
| Operating Temperature | 0°C ~ 70°C |
| Current - Transmitting | 350mA ~ 430mA |
