Step1: Product

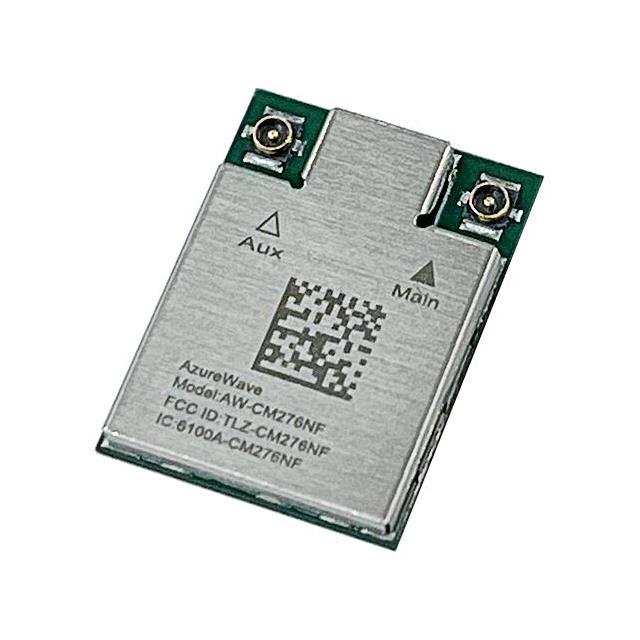

AzureWave Technologies, Inc. AW-CM276NF
Image shown is a representation only
Manufacturer
Manufacturer No
AW-CM276NF
Package
LGA Module
Packaging
Tape & Reel (TR)
Description
Wi-Fi 5 + BT5. 3 M.2 1216 Module
Detailed Description
Bluetooth, WiFi 802.11a/b/g/n/ac, Bluetooth v5.0 Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount
DataSheet
Mfr
AzureWave Technologies, Inc.
Protocol
802.11a/b/g/n/ac, Bluetooth v5.0
Data Rate
866.7Mbps
Frequency
2.4GHz, 5GHz
Packaging
Tape & Reel (TR)
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
Part Status
Active
Sensitivity
-88dBm
Antenna Type
Antenna Not Included
Mounting Type
Surface Mount
Package / Case
LGA Module
Power - Output
17dBm
Voltage - Supply
3.3V
Serial Interfaces
PCIe, UART
RF Family/Standard
Bluetooth, WiFi
Utilized IC / Part
88W8997
Current - Receiving
300mA
Operating Temperature
-30°C ~ 85°C
Current - Transmitting
900mA
| Attribute | Value |
|---|---|
| Mfr | AzureWave Technologies, Inc. |
| Protocol | 802.11a/b/g/n/ac, Bluetooth v5.0 |
| Data Rate | 866.7Mbps |
| Frequency | 2.4GHz, 5GHz |
| Packaging | Tape & Reel (TR) |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK |
| Part Status | Active |
| Sensitivity | -88dBm |
| Antenna Type | Antenna Not Included |
| Mounting Type | Surface Mount |
| Package / Case | LGA Module |
| Power - Output | 17dBm |
| Voltage - Supply | 3.3V |
| Serial Interfaces | PCIe, UART |
| RF Family/Standard | Bluetooth, WiFi |
| Utilized IC / Part | 88W8997 |
| Current - Receiving | 300mA |
| Operating Temperature | -30°C ~ 85°C |
| Current - Transmitting | 900mA |
