Step1: Product

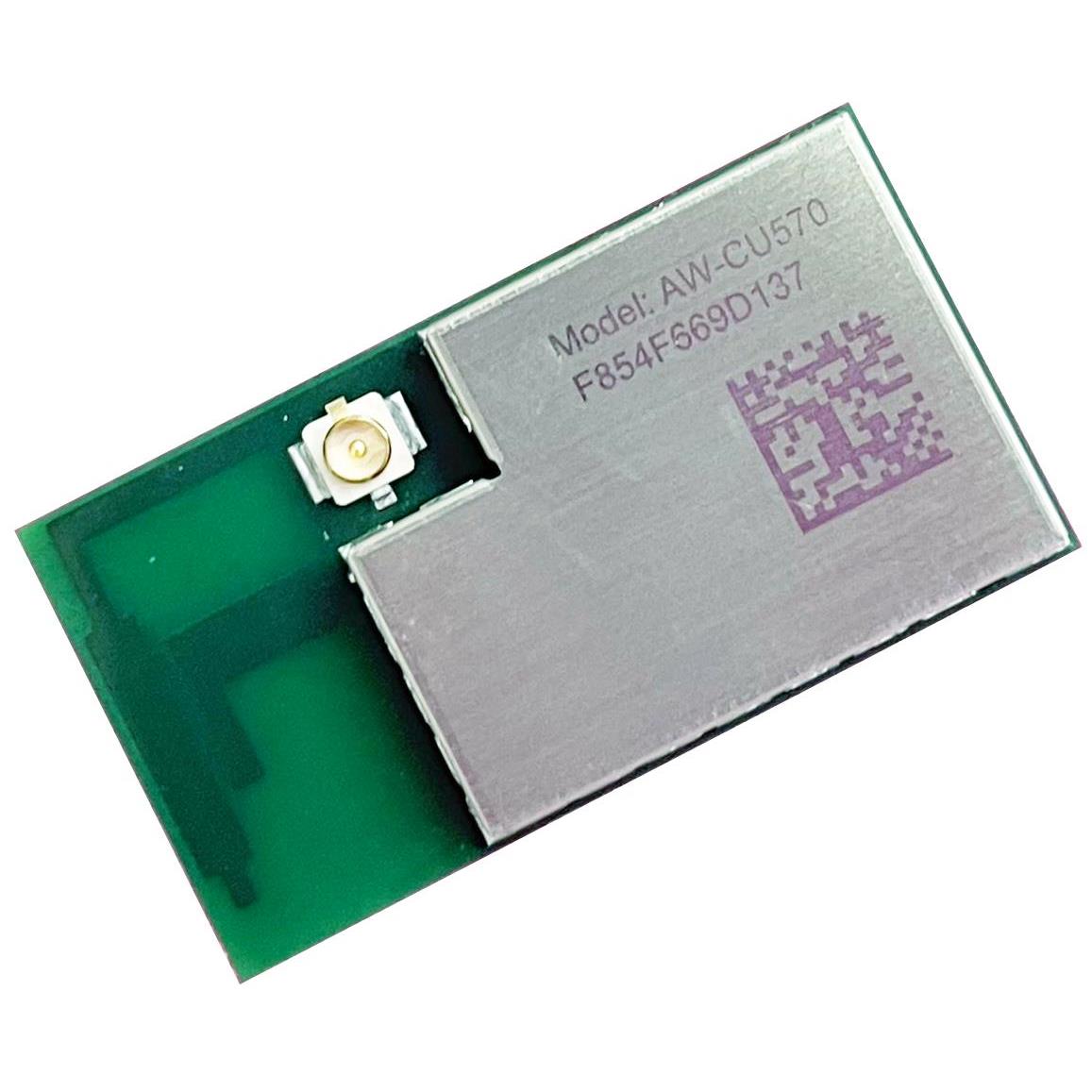

AzureWave Technologies, Inc. AW-CU570
Image shown is a representation only
Manufacturer
Manufacturer No
AW-CU570
Package
LGA Module
Packaging
Tape & Reel (TR)
Description
Wi-Fi 6 + BLE5.3/802.15.4 Module
Detailed Description
802.15.4, Bluetooth, WiFi 802.11a/b/g/n/ac/ax Transceiver Module 2.4GHz, 5GHz Antenna Included Surface Mount
DataSheet
Mfr
AzureWave Technologies, Inc.
Protocol
802.11a/b/g/n/ac/ax
Data Rate
115Mbps
Frequency
2.4GHz, 5GHz
Packaging
Tape & Reel (TR)
Modulation
4-DQPSK, 8-DPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, DSSS, GFSK, OFDM, QPSK
Part Status
Active
Sensitivity
-86dBm
Antenna Type
Antenna Included
Mounting Type
Surface Mount
Package / Case
LGA Module
Power - Output
18dBm
Voltage - Supply
3.3V
Serial Interfaces
UART
RF Family/Standard
802.15.4, Bluetooth, WiFi
Utilized IC / Part
RW612
Current - Receiving
300mA
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
700mA
| Attribute | Value |
|---|---|
| Mfr | AzureWave Technologies, Inc. |
| Protocol | 802.11a/b/g/n/ac/ax |
| Data Rate | 115Mbps |
| Frequency | 2.4GHz, 5GHz |
| Packaging | Tape & Reel (TR) |
| Modulation | 4-DQPSK, 8-DPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, DSSS, GFSK, OFDM, QPSK |
| Part Status | Active |
| Sensitivity | -86dBm |
| Antenna Type | Antenna Included |
| Mounting Type | Surface Mount |
| Package / Case | LGA Module |
| Power - Output | 18dBm |
| Voltage - Supply | 3.3V |
| Serial Interfaces | UART |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Utilized IC / Part | RW612 |
| Current - Receiving | 300mA |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 700mA |
