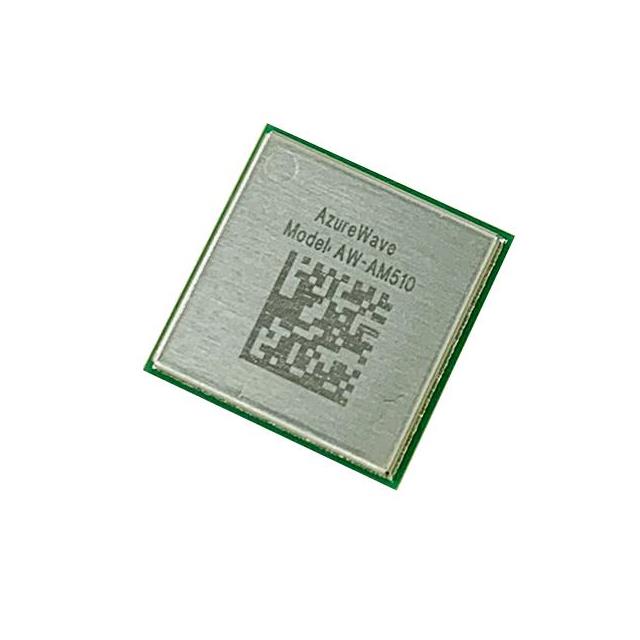

AzureWave Technologies, Inc. AW-AM510
Image shown is a representation only
Manufacturer
Manufacturer No
AW-AM510
Package
LGA Module
Packaging
Tape & Reel (TR)
Description
Wi-Fi 4 + BT5. 2 LGA Module
Detailed Description
Bluetooth, WiFi 802.11a/b/g/n Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount
DataSheet
Mfr
AzureWave Technologies, Inc.
Protocol
802.11a/b/g/n
Data Rate
72.2Mbps
Frequency
2.4GHz, 5GHz
Packaging
Tape & Reel (TR)
Modulation
16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, OFDM
Part Status
Active
Sensitivity
-86dBm
Antenna Type
Antenna Not Included
Mounting Type
Surface Mount
Package / Case
LGA Module
Power - Output
17dBm
Voltage - Supply
3.3V
Serial Interfaces
SDIO
RF Family/Standard
Bluetooth, WiFi
Utilized IC / Part
IW416
Current - Receiving
200mA
Operating Temperature
0°C ~ 70°C
Current - Transmitting
400mA
| Attribute | Value |
|---|---|
| Mfr | AzureWave Technologies, Inc. |
| Protocol | 802.11a/b/g/n |
| Data Rate | 72.2Mbps |
| Frequency | 2.4GHz, 5GHz |
| Packaging | Tape & Reel (TR) |
| Modulation | 16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, OFDM |
| Part Status | Active |
| Sensitivity | -86dBm |
| Antenna Type | Antenna Not Included |
| Mounting Type | Surface Mount |
| Package / Case | LGA Module |
| Power - Output | 17dBm |
| Voltage - Supply | 3.3V |
| Serial Interfaces | SDIO |
| RF Family/Standard | Bluetooth, WiFi |
| Utilized IC / Part | IW416 |
| Current - Receiving | 200mA |
| Operating Temperature | 0°C ~ 70°C |
| Current - Transmitting | 400mA |
