Step1: Product

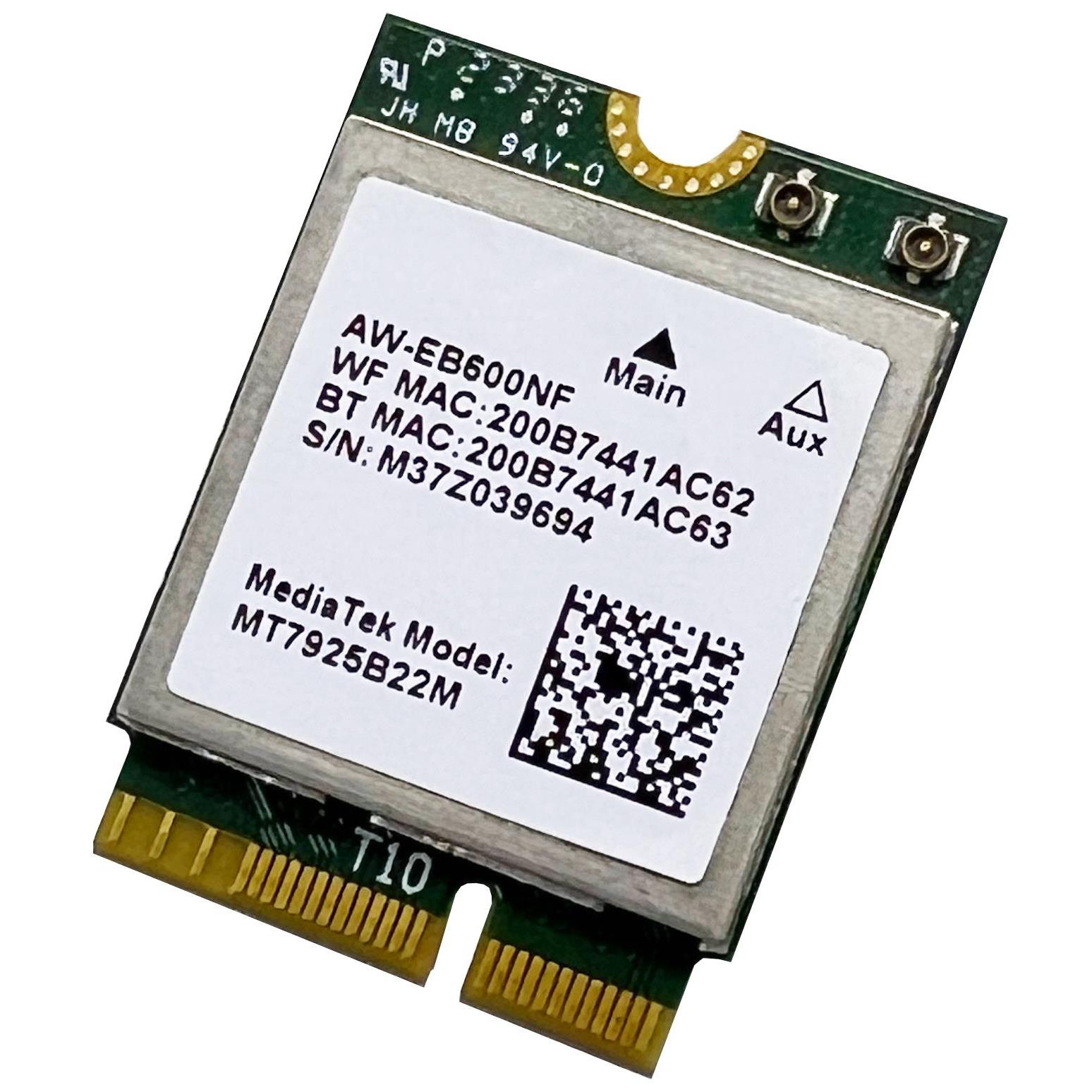

AzureWave Technologies, Inc. AW-EB600NF-NV
Image shown is a representation only
Manufacturer
Manufacturer No
AW-EB600NF-NV
Package
Module
Packaging
Tape & Reel (TR)
Description
Wi-Fi 7 + BT 5.4 M.2 2230 Module
Detailed Description
Bluetooth, WiFi 802.11a/b/g/n/ac/ax/be, Bluetooth v5.3 Transceiver Module 2.4GHz, 5GHz, 6GHz Antenna Not Included Card Edge
DataSheet
Mfr
AzureWave Technologies, Inc.
Protocol
802.11a/b/g/n/ac/ax/be, Bluetooth v5.3
Data Rate
2.8Gbps
Frequency
2.4GHz, 5GHz, 6GHz
Packaging
Tape & Reel (TR)
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, DSSS, GFSK, OFDM
Part Status
Active
Sensitivity
-90dBm
Antenna Type
Antenna Not Included
Mounting Type
Card Edge
Package / Case
Module
Power - Output
22dBm
Voltage - Supply
3.3V
Serial Interfaces
PCIe, USB
RF Family/Standard
Bluetooth, WiFi
Utilized IC / Part
MT7925
Current - Receiving
423mA
Operating Temperature
-10°C ~ 70°C
Current - Transmitting
970mA
| Attribute | Value |
|---|---|
| Mfr | AzureWave Technologies, Inc. |
| Protocol | 802.11a/b/g/n/ac/ax/be, Bluetooth v5.3 |
| Data Rate | 2.8Gbps |
| Frequency | 2.4GHz, 5GHz, 6GHz |
| Packaging | Tape & Reel (TR) |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, DSSS, GFSK, OFDM |
| Part Status | Active |
| Sensitivity | -90dBm |
| Antenna Type | Antenna Not Included |
| Mounting Type | Card Edge |
| Package / Case | Module |
| Power - Output | 22dBm |
| Voltage - Supply | 3.3V |
| Serial Interfaces | PCIe, USB |
| RF Family/Standard | Bluetooth, WiFi |
| Utilized IC / Part | MT7925 |
| Current - Receiving | 423mA |
| Operating Temperature | -10°C ~ 70°C |
| Current - Transmitting | 970mA |
