Step1: Product

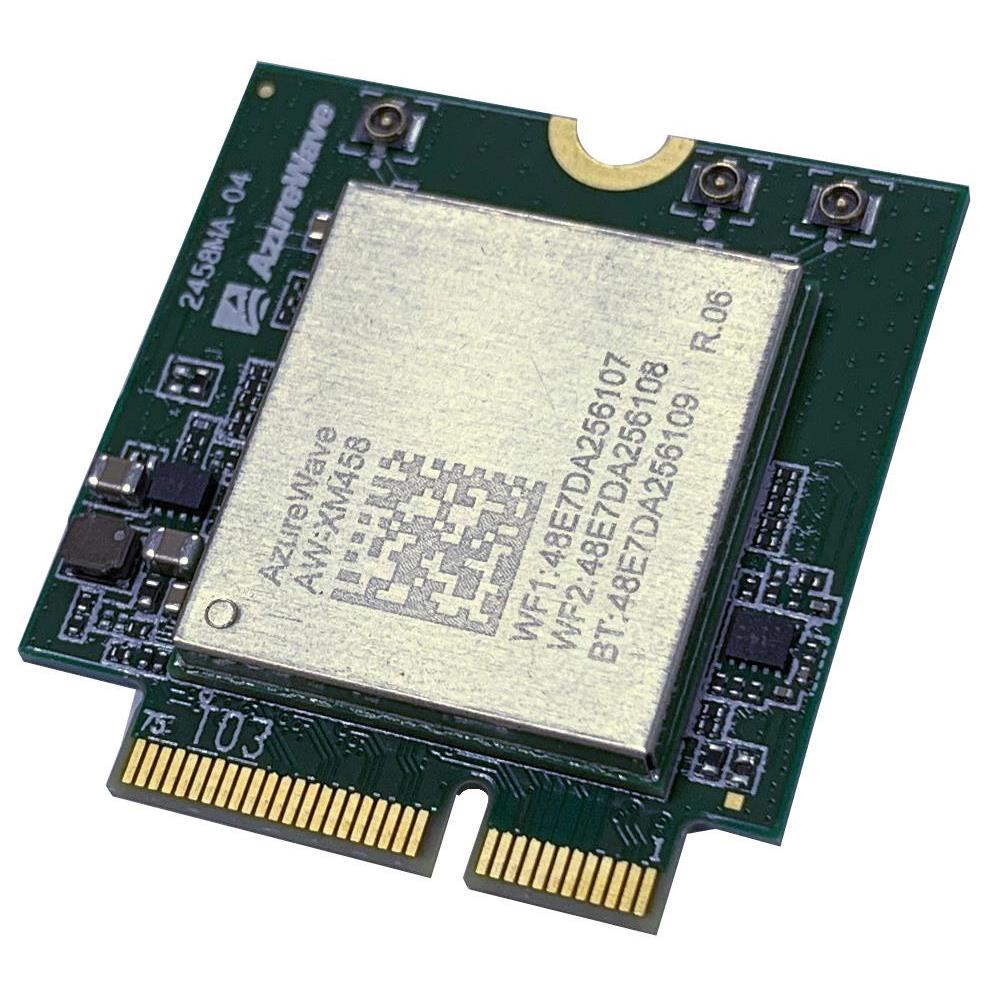

AzureWave Technologies, Inc. AW-XM458MA-PUR
Image shown is a representation only
Manufacturer
Manufacturer No
AW-XM458MA-PUR
Package
Module
Packaging
Tray
Description
EVB of AW-XM458
Detailed Description
Bluetooth, WiFi 802.11a/b/g/n/ac/ax Transceiver Module 2.4GHz, 5GHz Antenna Not Included Card Edge
DataSheet
Mfr
AzureWave Technologies, Inc.
Protocol
802.11a/b/g/n/ac/ax
Data Rate
1.2Gbps
Frequency
2.4GHz, 5GHz
Packaging
Tray
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, DSSS, GFSK, OFDM
Part Status
Active
Sensitivity
-88dBm
Antenna Type
Antenna Not Included
Mounting Type
Card Edge
Package / Case
Module
Power - Output
18dBm
Voltage - Supply
3.3V
Serial Interfaces
PCIe, UART
RF Family/Standard
Bluetooth, WiFi
Utilized IC / Part
88W9098
Current - Receiving
251mA ~ 380mA
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
170mA ~ 752mA
| Attribute | Value |
|---|---|
| Mfr | AzureWave Technologies, Inc. |
| Protocol | 802.11a/b/g/n/ac/ax |
| Data Rate | 1.2Gbps |
| Frequency | 2.4GHz, 5GHz |
| Packaging | Tray |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, DSSS, GFSK, OFDM |
| Part Status | Active |
| Sensitivity | -88dBm |
| Antenna Type | Antenna Not Included |
| Mounting Type | Card Edge |
| Package / Case | Module |
| Power - Output | 18dBm |
| Voltage - Supply | 3.3V |
| Serial Interfaces | PCIe, UART |
| RF Family/Standard | Bluetooth, WiFi |
| Utilized IC / Part | 88W9098 |
| Current - Receiving | 251mA ~ 380mA |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 170mA ~ 752mA |
