Analog Devices Inc./Maxim Integrated PD86-3-1260-TMCL

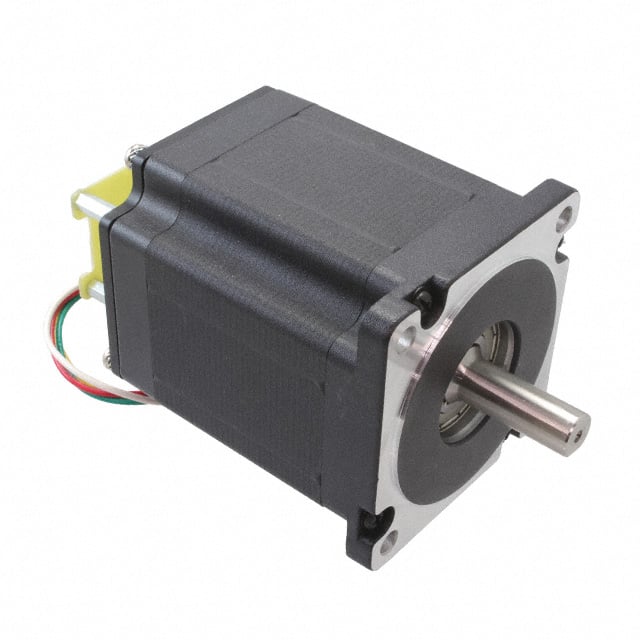

Image shown is a representation only
Manufacturer
Manufacturer No
PD86-3-1260-TMCL
Packaging
Bulk
Description
PANDRIVE NEMA34, 48V, 7.0NM
Detailed Description
Bipolar Stepper Motor Hybrid Frame Size 34 200.0 Step 5.5 A 48VDC
Datasheet
Mfr
Analog Devices Inc./Maxim Integrated
Type
Hybrid
Series
PANdrive™
Features
Integrated Controller, Flatted Shaft
Coil Type
Bipolar
Packaging
Bulk
Step Angle
1.8°
Coil Resistance
0.45 Ohms
NEMA Frame Size
34
Voltage - Rated
48VDC
Diameter - Shaft
0.500" (12.70mm)
Size / Dimension
Square - 3.382" x 3.382" (85.90mm x 85.90mm)
Termination Style
Wire Leads with Connector
Base Product Number
PD86-3
Steps per Revolution
200.0
Current Rating (Amps)
5.5 A
Mounting Hole Spacing
2.740" (69.60mm)
Length - Shaft and Bearing
1.310" (33.27mm)
Torque - Holding (oz-in / mNm)
991.28 / 7000
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc./Maxim Integrated |
| Type | Hybrid |
| Series | PANdrive™ |
| Features | Integrated Controller, Flatted Shaft |
| Coil Type | Bipolar |
| Packaging | Bulk |
| Step Angle | 1.8° |
| Coil Resistance | 0.45 Ohms |
| NEMA Frame Size | 34 |
| Voltage - Rated | 48VDC |
| Diameter - Shaft | 0.500" (12.70mm) |
| Size / Dimension | Square - 3.382" x 3.382" (85.90mm x 85.90mm) |
| Termination Style | Wire Leads with Connector |
| Base Product Number | PD86-3 |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 5.5 A |
| Mounting Hole Spacing | 2.740" (69.60mm) |
| Length - Shaft and Bearing | 1.310" (33.27mm) |
| Torque - Holding (oz-in / mNm) | 991.28 / 7000 |
