Step1: Product

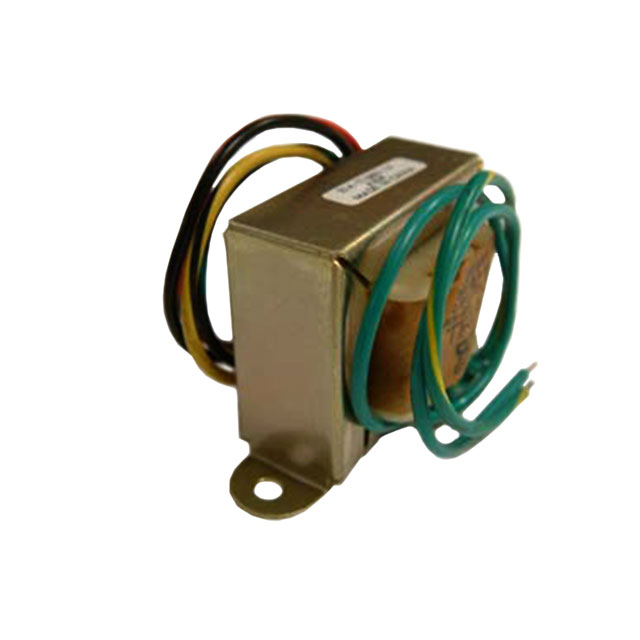

Triad Magnetics F-318X
Image shown is a representation only
Manufacturer
Manufacturer No
F-318X
Packaging
Box
Description
PWR XFMR LAMINATED 37.8VA CHAS
Detailed Description
Laminated Core 37.8VA Power Transformer 115V, 230V Primary 6.3V Secondary 6A Chassis Mount
DataSheet
Type
Laminated Core
Series
Single Secondary
Weight
2.3 lbs (1 kg)
Packaging
Box
Center Tap
Yes
Part Status
Active
Power - Max
37.8VA
Manufacturer
Triad Magnetics
Mounting Type
Chassis Mount
Size / Dimension
101.60mm L x 57.15mm W
Termination Style
Wire Leads
Voltage - Primary
115V, 230V
Primary Winding(s)
Dual
Voltage - Isolation
1500Vrms
Secondary Winding(s)
Single
Height - Seated (Max)
57.94mm
Current - Output (Max)
6A
Voltage - Secondary (Full Load)
6.3V
| Attribute | Value |
|---|---|
| Type | Laminated Core |
| Series | Single Secondary |
| Weight | 2.3 lbs (1 kg) |
| Packaging | Box |
| Center Tap | Yes |
| Part Status | Active |
| Power - Max | 37.8VA |
| Manufacturer | Triad Magnetics |
| Mounting Type | Chassis Mount |
| Size / Dimension | 101.60mm L x 57.15mm W |
| Termination Style | Wire Leads |
| Voltage - Primary | 115V, 230V |
| Primary Winding(s) | Dual |
| Voltage - Isolation | 1500Vrms |
| Secondary Winding(s) | Single |
| Height - Seated (Max) | 57.94mm |
| Current - Output (Max) | 6A |
| Voltage - Secondary (Full Load) | 6.3V |
