Step1: Product

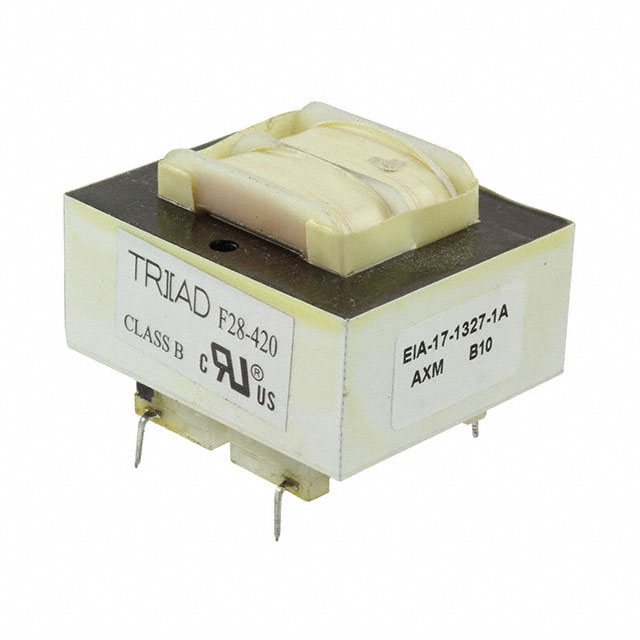

Triad Magnetics F28-420-C2

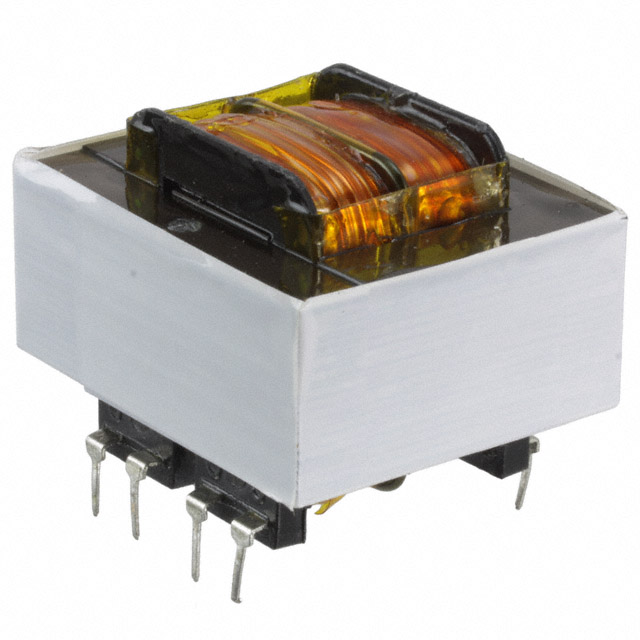

Image shown is a representation only
Manufacturer
Manufacturer No
F28-420-C2
Packaging
Bulk
Description
PWR XFMR 12VA TH
Detailed Description
12VA Power Transformer 115V Primary Parallel 14V, Series 28V Secondary Parallel 840mA, Series 420mA Through Hole
Datasheet
Series
F28
Packaging
Bulk
Center Tap
No
Power - Max
12VA
Manufacturer
Triad Magnetics
Mounting Type
Through Hole
Size / Dimension
49.00mm L x 41.00mm W
Termination Style
PC Pin
Voltage - Primary
115V
Primary Winding(s)
Single
Voltage - Isolation
4200V
Secondary Winding(s)
Dual
Height - Seated (Max)
38.51mm
Current - Output (Max)
Parallel 840mA, Series 420mA
Voltage - Secondary (Full Load)
Parallel 14V, Series 28V
| Attribute | Value |
|---|---|
| Series | F28 |
| Packaging | Bulk |
| Center Tap | No |
| Power - Max | 12VA |
| Manufacturer | Triad Magnetics |
| Mounting Type | Through Hole |
| Size / Dimension | 49.00mm L x 41.00mm W |
| Termination Style | PC Pin |
| Voltage - Primary | 115V |
| Primary Winding(s) | Single |
| Voltage - Isolation | 4200V |
| Secondary Winding(s) | Dual |
| Height - Seated (Max) | 38.51mm |
| Current - Output (Max) | Parallel 840mA, Series 420mA |
| Voltage - Secondary (Full Load) | Parallel 14V, Series 28V |
