Step1: Product

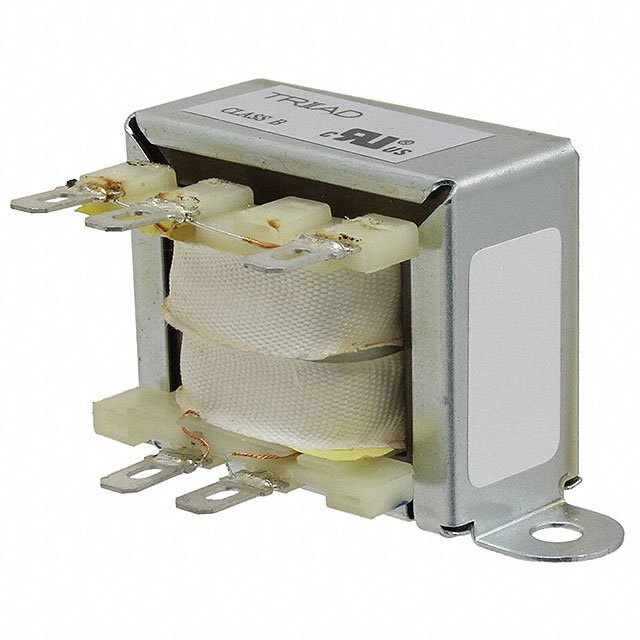

Triad Magnetics F4-12
Image shown is a representation only
Manufacturer
Manufacturer No
F4-12
Packaging
Bulk
Description
PWR XFMR LAMINATED 6VA CHAS MT
Detailed Description
Laminated Core 6VA Power Transformer 115V Primary 12.6V Secondary 500mA Chassis Mount
DataSheet
Type
Laminated Core
Series
Quick Pack
Weight
0.44 lb (199.58 g)
Packaging
Bulk
Center Tap
Yes
Part Status
Active
Power - Max
6VA
Manufacturer
Triad Magnetics
Mounting Type
Chassis Mount
Size / Dimension
60.33mm L x 31.75mm W
Termination Style
Solder, Quick Connect - 0.187" (4.7mm)
Voltage - Primary
115V
Primary Winding(s)
Single
Voltage - Isolation
2500VAC
Secondary Winding(s)
Single
Height - Seated (Max)
34.93mm
Current - Output (Max)
500mA
Voltage - Secondary (Full Load)
12.6V
| Attribute | Value |
|---|---|
| Type | Laminated Core |
| Series | Quick Pack |
| Weight | 0.44 lb (199.58 g) |
| Packaging | Bulk |
| Center Tap | Yes |
| Part Status | Active |
| Power - Max | 6VA |
| Manufacturer | Triad Magnetics |
| Mounting Type | Chassis Mount |
| Size / Dimension | 60.33mm L x 31.75mm W |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) |
| Voltage - Primary | 115V |
| Primary Winding(s) | Single |
| Voltage - Isolation | 2500VAC |
| Secondary Winding(s) | Single |
| Height - Seated (Max) | 34.93mm |
| Current - Output (Max) | 500mA |
| Voltage - Secondary (Full Load) | 12.6V |
