Step1: Product
Triad Magnetics TCT40-01E07AE-15

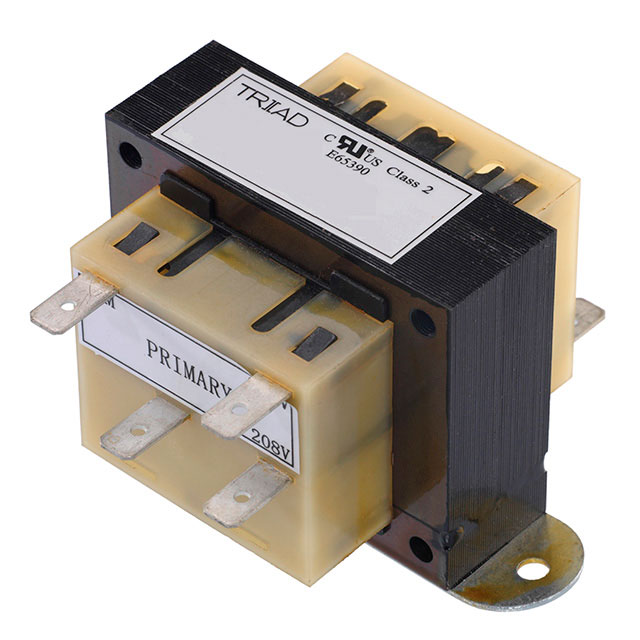

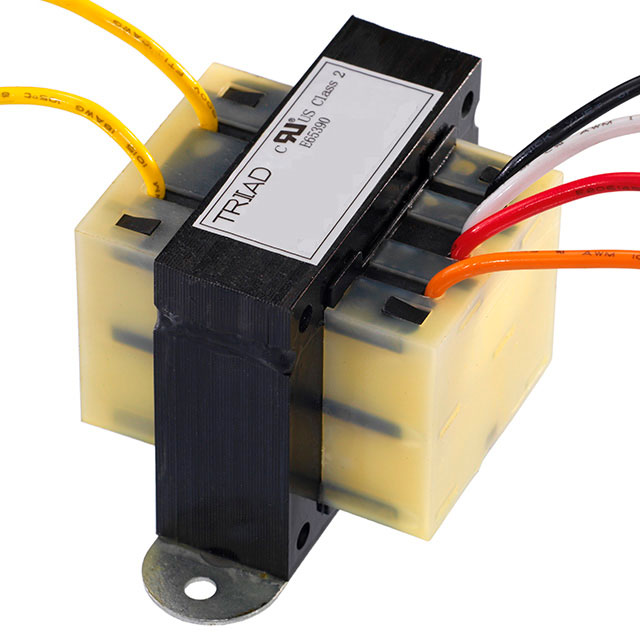

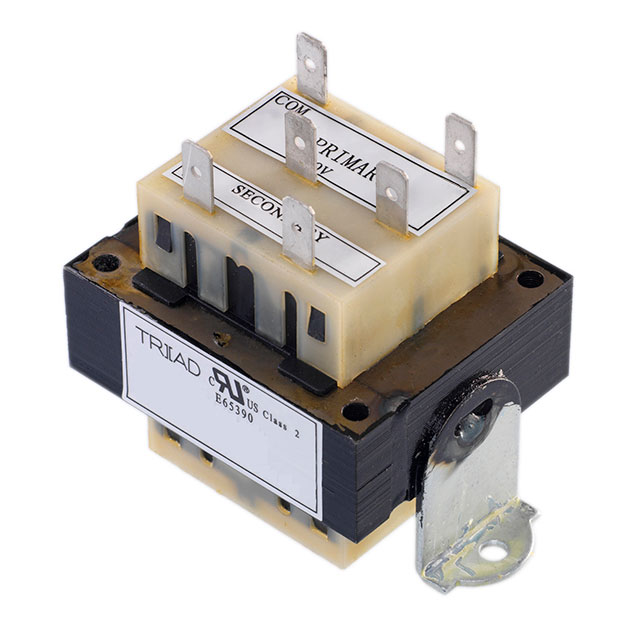

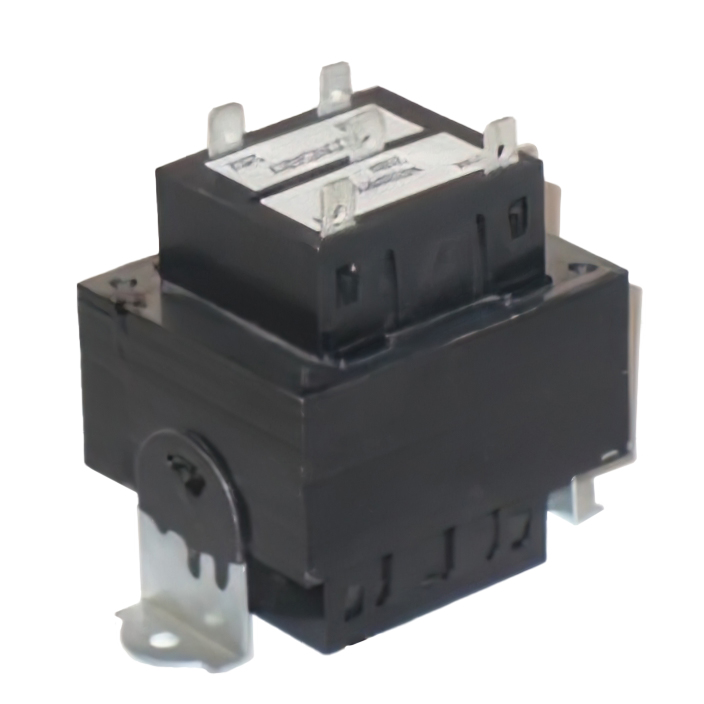

Image shown is a representation only
Manufacturer
Manufacturer No
TCT40-01E07AE-15
Packaging
Case
Description
120V 50/60Hz out:24V@40VA QC
Detailed Description
40VA Power Transformer 120V Primary 24V Secondary 1.67A Chassis Mount
DataSheet
Packaging
Case
Center Tap
No
Part Status
Active
Power - Max
40VA
Manufacturer
Triad Magnetics
Mounting Type
Chassis Mount
Size / Dimension
66.04mm L x 56.39mm W
Termination Style
Solder, Quick Connect
Voltage - Primary
120V
Primary Winding(s)
Single
Voltage - Isolation
1500VAC
Secondary Winding(s)
Single
Height - Seated (Max)
59.44mm
Current - Output (Max)
1.67A
Voltage - Secondary (Full Load)
24V
| Attribute | Value |
|---|---|
| Packaging | Case |
| Center Tap | No |
| Part Status | Active |
| Power - Max | 40VA |
| Manufacturer | Triad Magnetics |
| Mounting Type | Chassis Mount |
| Size / Dimension | 66.04mm L x 56.39mm W |
| Termination Style | Solder, Quick Connect |
| Voltage - Primary | 120V |
| Primary Winding(s) | Single |
| Voltage - Isolation | 1500VAC |
| Secondary Winding(s) | Single |
| Height - Seated (Max) | 59.44mm |
| Current - Output (Max) | 1.67A |
| Voltage - Secondary (Full Load) | 24V |
