Step1: Product

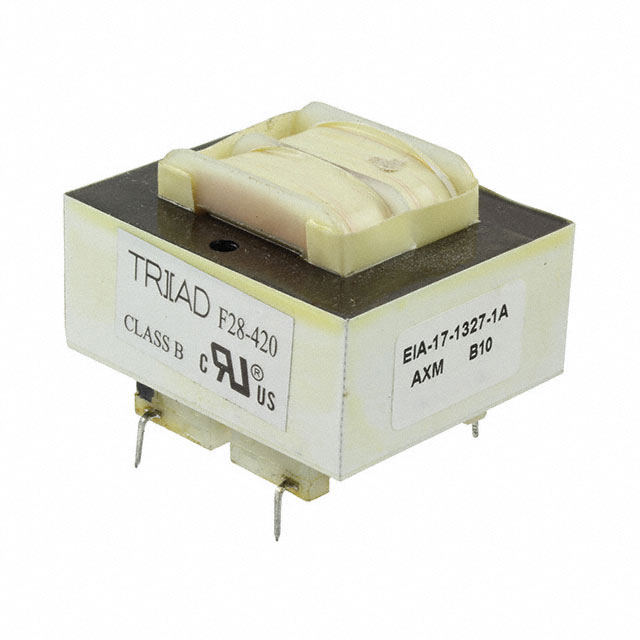

Triad Magnetics F28-420
Image shown is a representation only
Manufacturer
Manufacturer No
F28-420
Packaging
Box
Description
PWR XFMR LAMINATED 12VA TH
Detailed Description
Laminated Core 12VA Power Transformer 115V Primary Parallel 14V, Series 28V Secondary Parallel 840mA, Series 420mA Through Hole
DataSheet
Type
Laminated Core
Series
Split Pack™, Class 2/3, F
Weight
0.7 lb (317.51 g)
Packaging
Box
Center Tap
No
Part Status
Active
Power - Max
12VA
Manufacturer
Triad Magnetics
Mounting Type
Through Hole
Size / Dimension
47.63mm L x 39.67mm W
Termination Style
PC Pin
Voltage - Primary
115V
Primary Winding(s)
Single
Voltage - Isolation
2500Vrms
Secondary Winding(s)
Dual
Height - Seated (Max)
36.50mm
Current - Output (Max)
Parallel 840mA, Series 420mA
Voltage - Secondary (Full Load)
Parallel 14V, Series 28V
| Attribute | Value |
|---|---|
| Type | Laminated Core |
| Series | Split Pack™, Class 2/3, F |
| Weight | 0.7 lb (317.51 g) |
| Packaging | Box |
| Center Tap | No |
| Part Status | Active |
| Power - Max | 12VA |
| Manufacturer | Triad Magnetics |
| Mounting Type | Through Hole |
| Size / Dimension | 47.63mm L x 39.67mm W |
| Termination Style | PC Pin |
| Voltage - Primary | 115V |
| Primary Winding(s) | Single |
| Voltage - Isolation | 2500Vrms |
| Secondary Winding(s) | Dual |
| Height - Seated (Max) | 36.50mm |
| Current - Output (Max) | Parallel 840mA, Series 420mA |
| Voltage - Secondary (Full Load) | Parallel 14V, Series 28V |
