Step1: Product

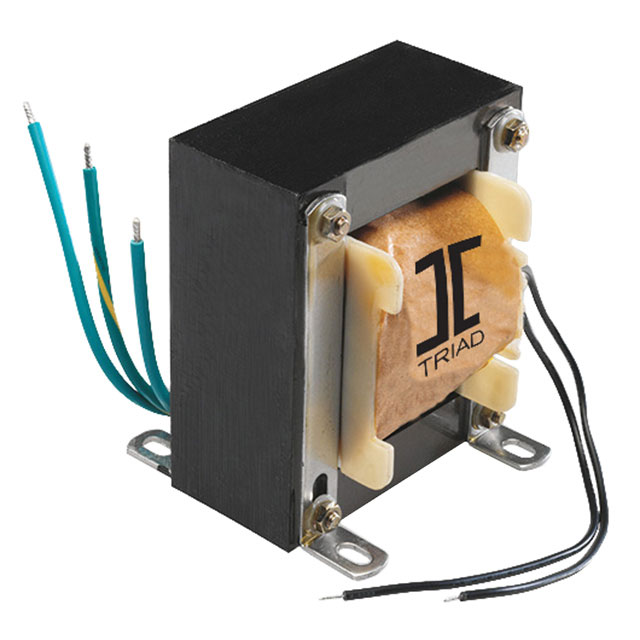

Triad Magnetics F-3181U
Image shown is a representation only
Manufacturer
Manufacturer No
F-3181U
Packaging
Box
Description
PWR XFMR LAMINATED 50VA CHAS MT
Detailed Description
Laminated Core 50VA Power Transformer 115V, 230V Primary 12.6V Secondary 4A Chassis Mount
DataSheet
Type
Laminated Core
Series
Single Secondary
Weight
2.3 lbs (1 kg)
Packaging
Box
Center Tap
Yes
Part Status
Active
Power - Max
50VA
Manufacturer
Triad Magnetics
Mounting Type
Chassis Mount
Size / Dimension
80.95mm L x 60.33mm W
Termination Style
Wire Leads
Voltage - Primary
115V, 230V
Primary Winding(s)
Dual
Voltage - Isolation
2000Vrms
Secondary Winding(s)
Single
Height - Seated (Max)
65.07mm
Current - Output (Max)
4A
Voltage - Secondary (Full Load)
12.6V
| Attribute | Value |
|---|---|
| Type | Laminated Core |
| Series | Single Secondary |
| Weight | 2.3 lbs (1 kg) |
| Packaging | Box |
| Center Tap | Yes |
| Part Status | Active |
| Power - Max | 50VA |
| Manufacturer | Triad Magnetics |
| Mounting Type | Chassis Mount |
| Size / Dimension | 80.95mm L x 60.33mm W |
| Termination Style | Wire Leads |
| Voltage - Primary | 115V, 230V |
| Primary Winding(s) | Dual |
| Voltage - Isolation | 2000Vrms |
| Secondary Winding(s) | Single |
| Height - Seated (Max) | 65.07mm |
| Current - Output (Max) | 4A |
| Voltage - Secondary (Full Load) | 12.6V |
