TE Connectivity Linx ANT-5GWWS1-SMA

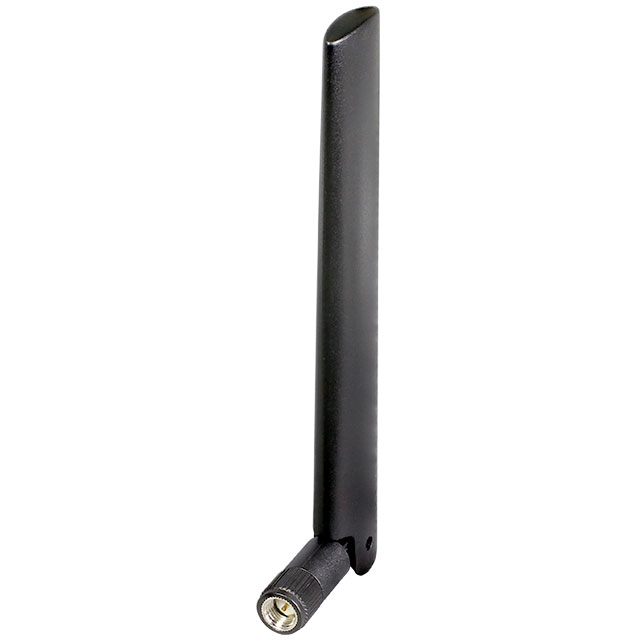

Image shown is a representation only
Manufacturer
Manufacturer No
ANT-5GWWS1-SMA
Packaging
Bag
Description
RF ANT 617MHZ-5GHZ 5G TILT SMA
Detailed Description
RF ANTENNA 4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS Blade, Tilt SMA Male Connector Mount
DataSheet
Gain
0.8dBi, 0.5dBi, 0.7dBi, 4dBi, 4dBi, 4dBi, 2.5dBi, 2.2dBi, 3.5dBi
VSWR
3.1, 1.8, 2.8, 1.8, 1.9, 3.9, 1.8, 3.2, 1.8
Series
5GW
Packaging
Bag
Part Status
Active
Power - Max
5 W
Return Loss
-5.8dB, -10.9dB, -6.5dB, 10.9dB, -10.2dB, -4.6dB, 10.9dB, -5.6dB, -10.9dB
Termination
SMA Male
Antenna Type
Blade, Tilt
Applications
4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS
Height (Max)
5.340" (135.70mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Connector Mount
Frequency Group
Wide Band
Frequency Range
617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz
Number of Bands
9
RF Family/Standard
Cellular, General ISM, Navigation
Base Product Number
ANT-5
Frequency (Center/Band)
600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8 GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz
| Attribute | Value |
|---|---|
| Gain | 0.8dBi, 0.5dBi, 0.7dBi, 4dBi, 4dBi, 4dBi, 2.5dBi, 2.2dBi, 3.5dBi |
| VSWR | 3.1, 1.8, 2.8, 1.8, 1.9, 3.9, 1.8, 3.2, 1.8 |
| Series | 5GW |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 5 W |
| Return Loss | -5.8dB, -10.9dB, -6.5dB, 10.9dB, -10.2dB, -4.6dB, 10.9dB, -5.6dB, -10.9dB |
| Termination | SMA Male |
| Antenna Type | Blade, Tilt |
| Applications | 4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS |
| Height (Max) | 5.340" (135.70mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz |
| Number of Bands | 9 |
| RF Family/Standard | Cellular, General ISM, Navigation |
| Base Product Number | ANT-5 |
| Frequency (Center/Band) | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8 GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz |
