Step1: Product

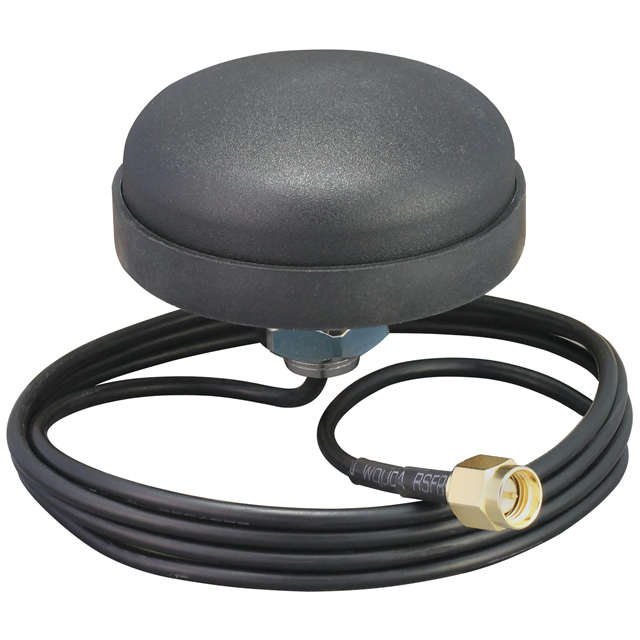

TE Connectivity Linx ANT-5GW-SPS1-3
Image shown is a representation only
Manufacturer
Manufacturer No
ANT-5GW-SPS1-3
Packaging
Bag
Description
RF ANT 5G/4G/LTE PUCK 3M SMA
Detailed Description
RF ANTENNA 2G, 3G, 4G, 5G, ISM, LTE, LoRaWAN, LPWA, NB-IoT, Sigfox, Wi-Fi Dome SMA Male Panel Mount
DataSheet
Gain
-0.1dBi, -4.2dBi, 5.4dBi, 3.8dBi, 4.2dBi, 2.7dBi, 2.7dBi, 5.1dBi
VSWR
1.3, 1.6, 1.8, 2.2, 2.9, 3
Series
SPS
Features
Cable - 3m
Packaging
Bag
Part Status
Active
Power - Max
15 W
Termination
SMA Male
Antenna Type
Dome
Applications
2G, 3G, 4G, 5G, ISM, LTE, LoRaWAN, LPWA, NB-IoT, Sigfox, Wi-Fi
Height (Max)
0.917" (23.30mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Panel Mount
Frequency Group
Wide Band
Frequency Range
410MHz ~ 426MHz, 450MHz ~ 470MHz, 617MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5.925GHz
Number of Bands
8
Ingress Protection
IP65, IP67
RF Family/Standard
Cellular, General ISM, WiFi
Frequency (Center/Band)
418MHz, 460MHz, 788.5MHz, 1.9475GHz, 2.35GHz, 2.593GHz, 3.75GHz, 5.1625GHz
| Attribute | Value |
|---|---|
| Gain | -0.1dBi, -4.2dBi, 5.4dBi, 3.8dBi, 4.2dBi, 2.7dBi, 2.7dBi, 5.1dBi |
| VSWR | 1.3, 1.6, 1.8, 2.2, 2.9, 3 |
| Series | SPS |
| Features | Cable - 3m |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 15 W |
| Termination | SMA Male |
| Antenna Type | Dome |
| Applications | 2G, 3G, 4G, 5G, ISM, LTE, LoRaWAN, LPWA, NB-IoT, Sigfox, Wi-Fi |
| Height (Max) | 0.917" (23.30mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Panel Mount |
| Frequency Group | Wide Band |
| Frequency Range | 410MHz ~ 426MHz, 450MHz ~ 470MHz, 617MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5.925GHz |
| Number of Bands | 8 |
| Ingress Protection | IP65, IP67 |
| RF Family/Standard | Cellular, General ISM, WiFi |
| Frequency (Center/Band) | 418MHz, 460MHz, 788.5MHz, 1.9475GHz, 2.35GHz, 2.593GHz, 3.75GHz, 5.1625GHz |
