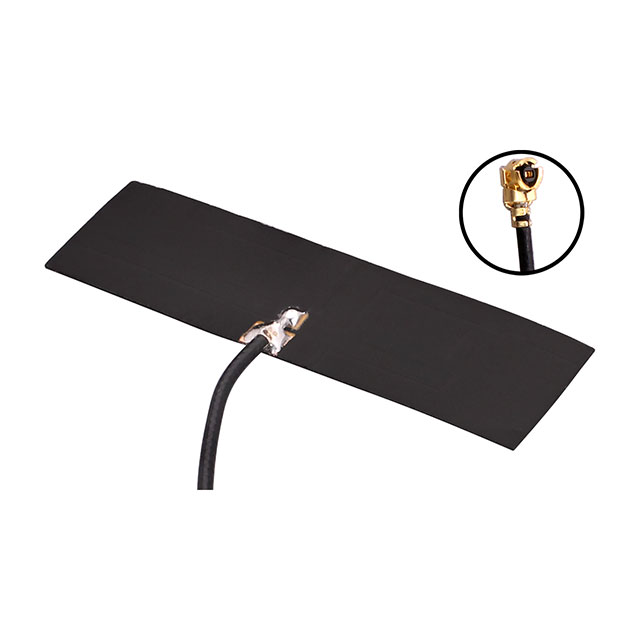

TE Connectivity Linx ANT-5GMFPC1-UFL-100
Image shown is a representation only
Manufacturer
Manufacturer No
ANT-5GMFPC1-UFL-100
Packaging
Bag
Description
RF ANT 2-5GHZ 5G FLEX ADHES UFL
Detailed Description
RF ANTENNA 5G, Cellular, LTE Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
DataSheet
Gain
3dBi, 4.7dBi, 4.8dBi, 4.8dBi, 5.9dBi, 6.7dBi
VSWR
3.2, 1.8, 1.7, 1.7, 1.6, 1.4
Series
FPC
Features
Cable - 100mm
Packaging
Bag
Part Status
Active
Power - Max
2 W
Return Loss
-5.6dB, -10.9dB, -11.7dB, -11.7dB, -12.7dB, -15.6dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Flat Patch
Applications
5G, Cellular, LTE
Height (Max)
0.008" (0.20mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.4GHz ~ 5GHz
Number of Bands
6
RF Family/Standard
Cellular
Base Product Number
ANT-5
Frequency (Center/Band)
2.3GHz, 2.496GHz, 3.3GHz, 3.55GHz, 3.7GHz, 4.4GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi, 4.7dBi, 4.8dBi, 4.8dBi, 5.9dBi, 6.7dBi |
| VSWR | 3.2, 1.8, 1.7, 1.7, 1.6, 1.4 |
| Series | FPC |
| Features | Cable - 100mm |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 2 W |
| Return Loss | -5.6dB, -10.9dB, -11.7dB, -11.7dB, -12.7dB, -15.6dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | 5G, Cellular, LTE |
| Height (Max) | 0.008" (0.20mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.4GHz ~ 5GHz |
| Number of Bands | 6 |
| RF Family/Standard | Cellular |
| Base Product Number | ANT-5 |
| Frequency (Center/Band) | 2.3GHz, 2.496GHz, 3.3GHz, 3.55GHz, 3.7GHz, 4.4GHz |
