Step1: Product

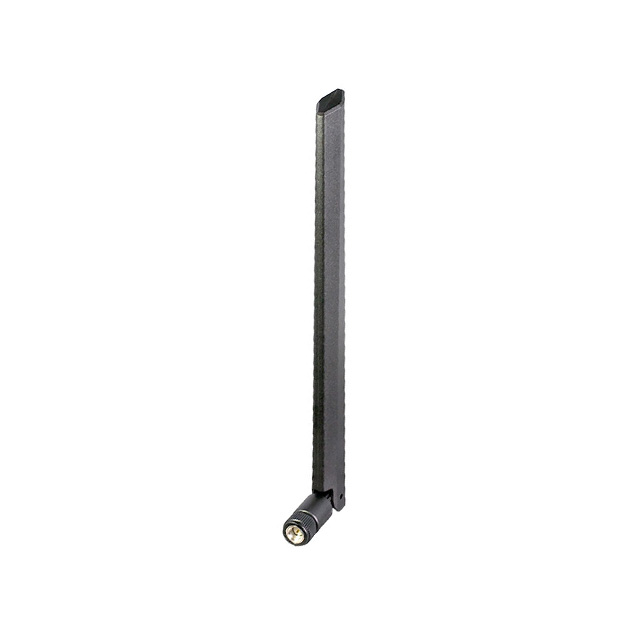

TE Connectivity Linx ANT-5GMWS1-SMA
Image shown is a representation only
Manufacturer
Manufacturer No
ANT-5GMWS1-SMA
Packaging
Bulk
Description
RF ANT 3.3GHZ-5.0GHZ 5G TILT SMA
Detailed Description
RF ANTENNA 5G, GPRS, LTE Whip, Tilt SMA Male Connector Mount
DataSheet
Gain
5.9dBi, 5.4dBi, 2.3dBi
VSWR
1.3, 3.3, 3.4
Series
SMA
Packaging
Bulk
Part Status
Active
Power - Max
5 W
Termination
SMA Male
Antenna Type
Whip, Tilt
Applications
5G, GPRS, LTE
Height (Max)
7.677" (195.00mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Connector Mount
Frequency Group
Wide Band
Frequency Range
3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz
Number of Bands
3
RF Family/Standard
Cellular, Navigation
Base Product Number
ANT-5
Frequency (Center/Band)
3.625GHz, 3.95GHz, 4.965GHz
| Attribute | Value |
|---|---|
| Gain | 5.9dBi, 5.4dBi, 2.3dBi |
| VSWR | 1.3, 3.3, 3.4 |
| Series | SMA |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 5 W |
| Termination | SMA Male |
| Antenna Type | Whip, Tilt |
| Applications | 5G, GPRS, LTE |
| Height (Max) | 7.677" (195.00mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Frequency Range | 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz |
| Number of Bands | 3 |
| RF Family/Standard | Cellular, Navigation |
| Base Product Number | ANT-5 |
| Frequency (Center/Band) | 3.625GHz, 3.95GHz, 4.965GHz |
