Step1: Product

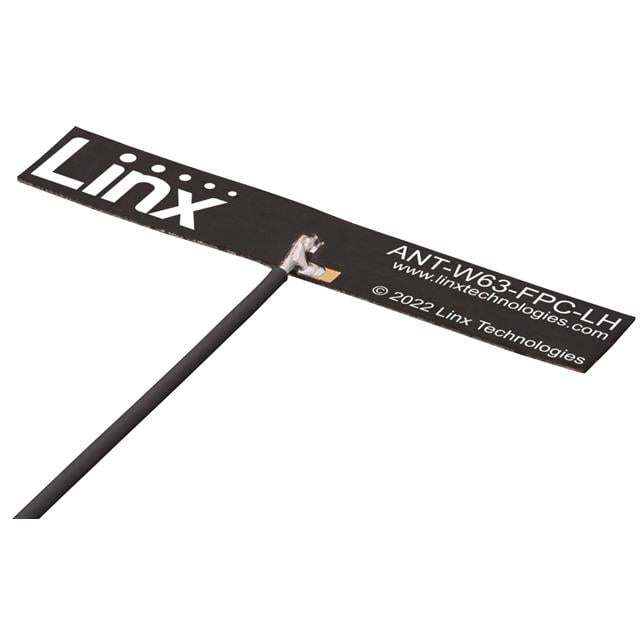

TE Connectivity Linx ANT-W63-FPC-LH100UF
Image shown is a representation only
Manufacturer
Manufacturer No
ANT-W63-FPC-LH100UF
Quantity
25
Availability
In Stock
Packaging
Bag
Description
ANT WIFI6 FPC 45X7 100MM UFL
Detailed Description
RF ANTENNA 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
DataSheet
Gain
4.5dBi, 6.3dBi, 10.1dBi
VSWR
1.4, 1.7, 1.8
Series
ANT-W63-FPC-LH
Features
Cable - 100mm
Packaging
Bag
Part Status
Active
Power - Max
2 W
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Flat Patch
Applications
802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™
Height (Max)
0.004" (0.10mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Adhesive
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz
Number of Bands
3
RF Family/Standard
802.15.4, Bluetooth, General ISM, WiFi
Frequency (Center/Band)
2.45GHz, 5.5225GHz, 6.5375GHz
| Attribute | Value |
|---|---|
| Gain | 4.5dBi, 6.3dBi, 10.1dBi |
| VSWR | 1.4, 1.7, 1.8 |
| Series | ANT-W63-FPC-LH |
| Features | Cable - 100mm |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 2 W |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
| Height (Max) | 0.004" (0.10mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Adhesive |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz |
| Number of Bands | 3 |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Frequency (Center/Band) | 2.45GHz, 5.5225GHz, 6.5375GHz |
